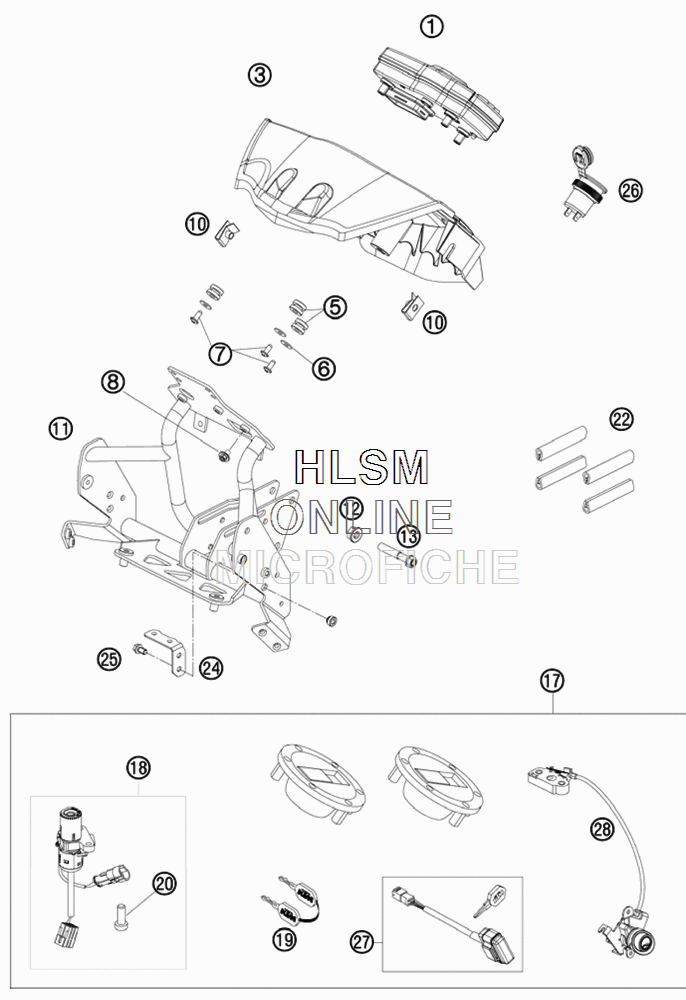

INSTRUMENTS/LOCK SYSTEM для Ktm 990 ADVENTURE ORANGE ABS - 2009 года выпуска

  • №
    Артикул
    Название
  • 1*
    60114169000 SPEEDOMETER
    SPEEDOMETER
  • 3*
    60114070200 INSTRUMENTS COVER ABS
    INSTRUMENTS COVER ABS
  • 5
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 6
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 7
    0081050121 SCREW FOR PLASTIC K50X12 T20
    SCREW FOR PLASTIC K50X12 T20
  • 8*
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 10
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 11
    60114010000 COCKPIT SUPPORT
    COCKPIT SUPPORT
  • 12
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 13
    0025080456 HH COLLAR SCREW M8X45 TX40
    HH COLLAR SCREW M8X45 TX40
  • 17*
    60111066044 LOCK SYSTEM 990 ADV.
    LOCK SYSTEM 990 ADV.
  • 18*
    62611066000 IGNITION LOCK
    IGNITION LOCK
  • 19*
    62611067000 KEY WITH TRANSPONDER
    KEY WITH TRANSPONDER
  • 20
    60011064000 TAMPERPROOF SCREW F. IGN. LOCK
    TAMPERPROOF SCREW F. IGN. LOCK
  • 22
    60114010070 EDGE PROTECTOR 14X9,5X66 MM
    EDGE PROTECTOR 14X9,5X66 MM
  • 24
    60103001166 SUPPORT ROLLOVER SENSOR
    SUPPORT ROLLOVER SENSOR
  • 25
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 26*
    60111042100 SOCKET
    SOCKET
  • 27*
    60111021000 IMMOBILIZER 990 ADV.
    IMMOBILIZER 990 ADV.
  • 28*
    60107050000 SEAT LOCK
    SEAT LOCK
