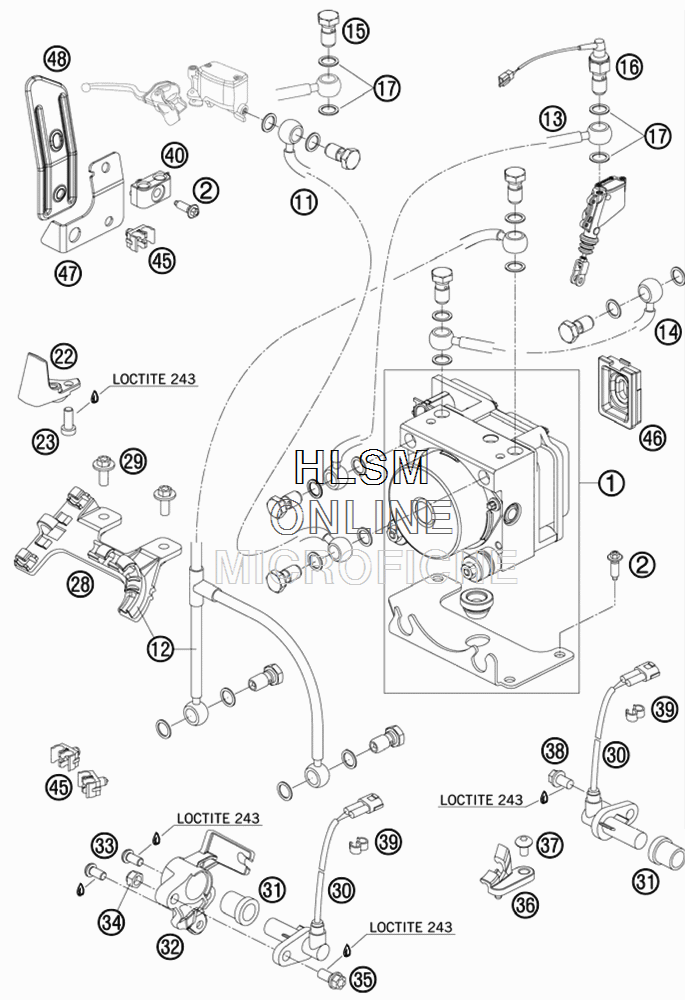

ANTIBLOCK SYSTEM ABS для Ktm 990 ADVENTURE ORANGE ABS - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    60142031244 ABS-MODULE INCL. SUPPORT
    ABS-MODULE INCL. SUPPORT
  • 2
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 11
    60142010000 BRAKE HOSE L=1320MM
    BRAKE HOSE L=1320MM
  • 12
    60142011000 BRAKE HOSE 1190/715/810MM
    BRAKE HOSE 1190/715/810MM
  • 13
    60142012200 BRAKE HOSE L=360
    BRAKE HOSE L=360
  • 14
    60142013200 BRAKE HOSE L=845
    BRAKE HOSE L=845
  • 15
    50213025000 HOLLOW SCREW M10X1X19
    HOLLOW SCREW M10X1X19
  • 16
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 17
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 22
    60101077000 BRAKE HOSE GUIDE TOP
    BRAKE HOSE GUIDE TOP
  • 23
    0012060164 AH SCREW DIN6912 M6X16 SL
    AH SCREW DIN6912 M6X16 SL
  • 28
    60101078000 BRAKE HOSE GUIDE LOWER
    BRAKE HOSE GUIDE LOWER
  • 29
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 30
    60142025000 ABS-SENSOR
    ABS-SENSOR
  • 31
    60142024050 SLEEVE SENSOR HOLDER ABS
    SLEEVE SENSOR HOLDER ABS
  • 32
    60142024000 SENSOR HOLDER FRONT
    SENSOR HOLDER FRONT
  • 33
    0018050103 INT. TORX OVAL HEAD M 5X10 8.8
    INT. TORX OVAL HEAD M 5X10 8.8
  • 34
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 35
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 36
    60142026000 CABLE SUPPORT SWING ARM
    CABLE SUPPORT SWING ARM
  • 37
    58605083010 SCREW TORX M5X10 05
    SCREW TORX M5X10 05
  • 38
    59009062013 SPECIAL SCREW M6X13 WS=8 10.9
    SPECIAL SCREW M6X13 WS=8 10.9
  • 39
    60111094000 CLAMP 5/7 MM
    CLAMP 5/7 MM
  • 40
    60113046000 SUPPORT FOR BRAKE HOSE
    SUPPORT FOR BRAKE HOSE
  • 45
    60113026000 HOSE SUPPORT 7/7 MM
    HOSE SUPPORT 7/7 MM
  • 46
    60108017010 RUBBER SLEEVE 30X40 MM
    RUBBER SLEEVE 30X40 MM
  • 47
    60113044000 RETAINING PLATE BRAKE HOSE REA
    RETAINING PLATE BRAKE HOSE REA
  • 48
    60113043000 HEAT PROTECT. BRAKE REAR HI.
    HEAT PROTECT. BRAKE REAR HI.
