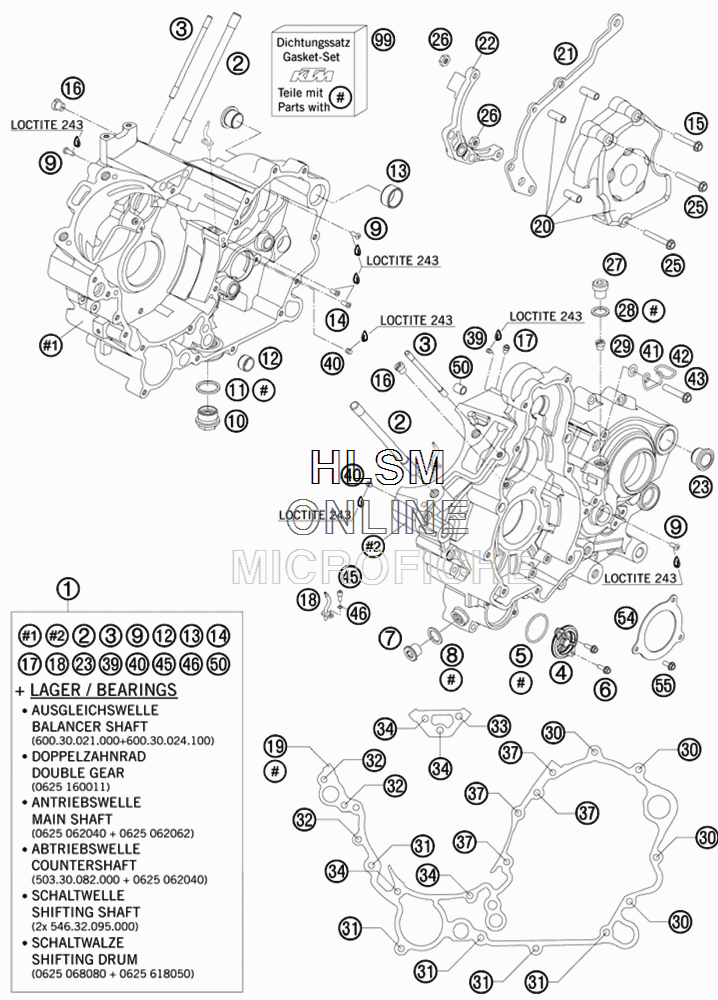

ENGINE CASE для Ktm 990 ADVENTURE ORANGE ABS - 2009 года выпуска

  • №
    Артикул
    Название
  • 1*
    6113000004423 ENGINE CASE CPL. WITH BEARINGS
    ENGINE CASE CPL. WITH BEARINGS
  • 2
    60030043100 STUD M10X161
    STUD M10X161
  • 3
    60030043010 STUD M 6X101 10.9
    STUD M 6X101 10.9
  • 4*
    75038041200 OILFILTER CAP
    OILFILTER CAP
  • 5*
    0770039026 O-RING 39,34X2,62 NBR 70 SH
    O-RING 39,34X2,62 NBR 70 SH
  • 6
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 7
    60038033050 PLUG SCREW M14X1,5 ALU AH
    PLUG SCREW M14X1,5 ALU AH
  • 8
    0603142016 CU-SEAL RING 14X20X1,5 LC8 02
    CU-SEAL RING 14X20X1,5 LC8 02
  • 9
    0018050103 INT. TORX OVAL HEAD M 5X10 8.8
    INT. TORX OVAL HEAD M 5X10 8.8
  • 10
    58038019050 DRAIN PLUG W. MAGNET
    DRAIN PLUG W. MAGNET
  • 11
    58038017100 CU-SEAL RING DIN7603-22X27X2
    CU-SEAL RING DIN7603-22X27X2
  • 12
    58330023000 DOWEL 17 X 14 X 9,5
    DOWEL 17 X 14 X 9,5
  • 13
    60030023000 DOWEL 20,1X24X12 03
    DOWEL 20,1X24X12 03
  • 14
    0019050103 INT. TORX FLAT HEAD M 5X10 8.8
    INT. TORX FLAT HEAD M 5X10 8.8
  • 15
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 16
    59030054000 JET 60 DELLORTO M6X0,75
    JET 60 DELLORTO M6X0,75
  • 17*
    60030066000 OIL JET CURVED "70" BLUE
    OIL JET CURVED "70" BLUE
  • 18*
    60030064100 OIL JET CURVED "70" GREEN
    OIL JET CURVED "70" GREEN
  • 19
    60030039100 ENGINE CASE GASKET 0,5MM
    ENGINE CASE GASKET 0,5MM
  • 20
    60030060044 CHAIN SPROCKET COVER CPL.
    CHAIN SPROCKET COVER CPL.
  • 21
    60030047000 CHAIN FAIL. PROTECTION LC8
    CHAIN FAIL. PROTECTION LC8
  • 22
    60032063000 ADAPTER F. HYDR. CLUTCH
    ADAPTER F. HYDR. CLUTCH
  • 23
    60030010000 SWING BEARING OUTSIDE LC8
    SWING BEARING OUTSIDE LC8
  • 25
    0025060356 HH COLLAR SCREW M6X35 TX30
    HH COLLAR SCREW M6X35 TX30
  • 26
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 27
    49030029000 OIL DRAIN PLUG M10X1,5 AH-WS=6
    OIL DRAIN PLUG M10X1,5 AH-WS=6
  • 28
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 29
    60038029200 REDUCING JET "30" M6X0,75
    REDUCING JET "30" M6X0,75
  • 30
    0025060406 HH COLLAR SCREW M6X40 TX30
    HH COLLAR SCREW M6X40 TX30
  • 31
    0025060606 HH COLLAR SCREW M6X60 TX30
    HH COLLAR SCREW M6X60 TX30
  • 32
    0025060656 HH COLLAR SCREW M6X65 TX30
    HH COLLAR SCREW M6X65 TX30
  • 33
    0025060706 HH COLLAR SCREW M6X70 TX30
    HH COLLAR SCREW M6X70 TX30
  • 34
    0025060756 HH COLLAR SCREW M6X75 TX30
    HH COLLAR SCREW M6X75 TX30
  • 37
    0025060906 HH COLLAR SCREW M6X90 TX30
    HH COLLAR SCREW M6X90 TX30
  • 39
    0916050042 THREAD PIN DIN916 M5X4-45H
    THREAD PIN DIN916 M5X4-45H
  • 40
    0551060050 THREAD PIN DIN0551-M 6X 5
    THREAD PIN DIN0551-M 6X 5
  • 41
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 42
    60011094000 CABLE SUPPORT
    CABLE SUPPORT
  • 43
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 45
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 46
    0770035020 O-RING 3,5X2,00 NBR
    O-RING 3,5X2,00 NBR
  • 50
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 54
    60030084000 BRACKET FOR BEARING INSERT
    BRACKET FOR BEARING INSERT
  • 55
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 99
    60030099000 GASKET SET CPL.
    GASKET SET CPL.
