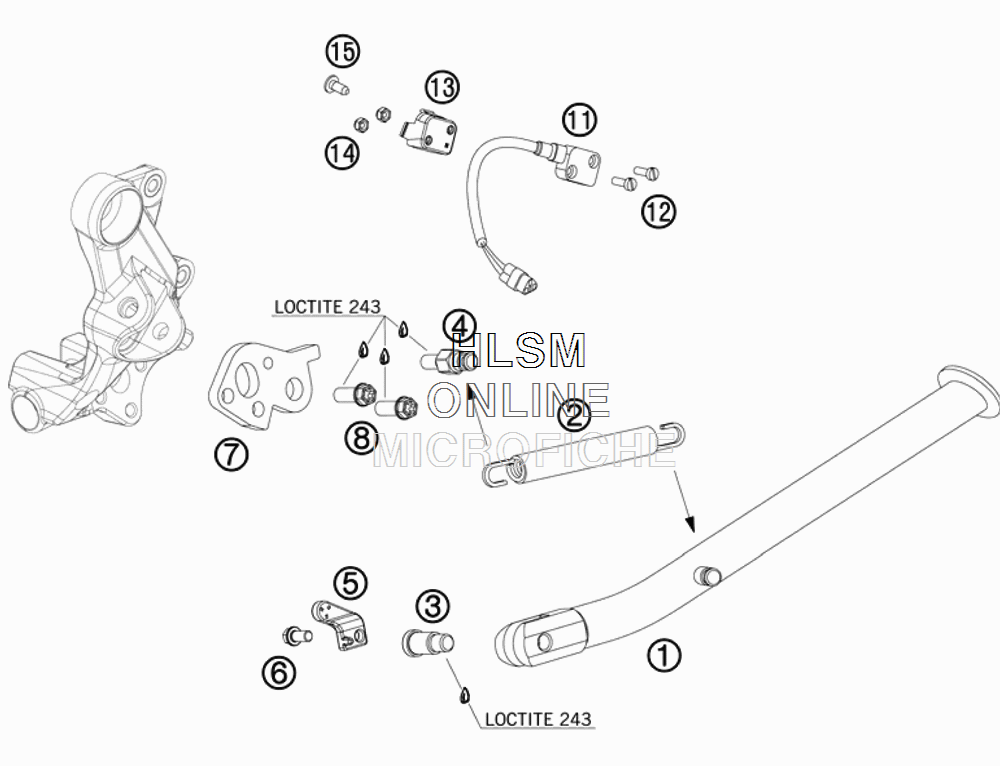

SIDE/CENTER STAND для Ktm 690 SMC - 2009 года выпуска`
-
№АртикулНазвание
-
17650302300033 SIDE STAND L=275MM SMCSIDE STAND L=275MM SMC
-
261003024000 SPRING L=116 MMSPRING L=116 MM
-
362503027100 SCREW F. SIDE STAND M10X31,2SCREW F. SIDE STAND M10X31,2
-
476503028001 SPECIAL SCR. SIDE STAND SPRINGSPECIAL SCR. SIDE STAND SPRING
-
576503029000 MAGNET HOLDERMAGNET HOLDER
-
60025060126 HH COLLAR SCREW M6X12 TX30HH COLLAR SCREW M6X12 TX30
-
776503026000 SIDE STAND BRACKETSIDE STAND BRACKET
-
80025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
1161011045000 SIDE STAND SENSORSIDE STAND SENSOR
-
120084040123 CYL.HEAD SCREW DIN84A M4X12CYL.HEAD SCREW DIN84A M4X12
-
1376511045050 HOLDER FOR SIDESTAND SWITCHHOLDER FOR SIDESTAND SWITCH
-
140985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
150016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
