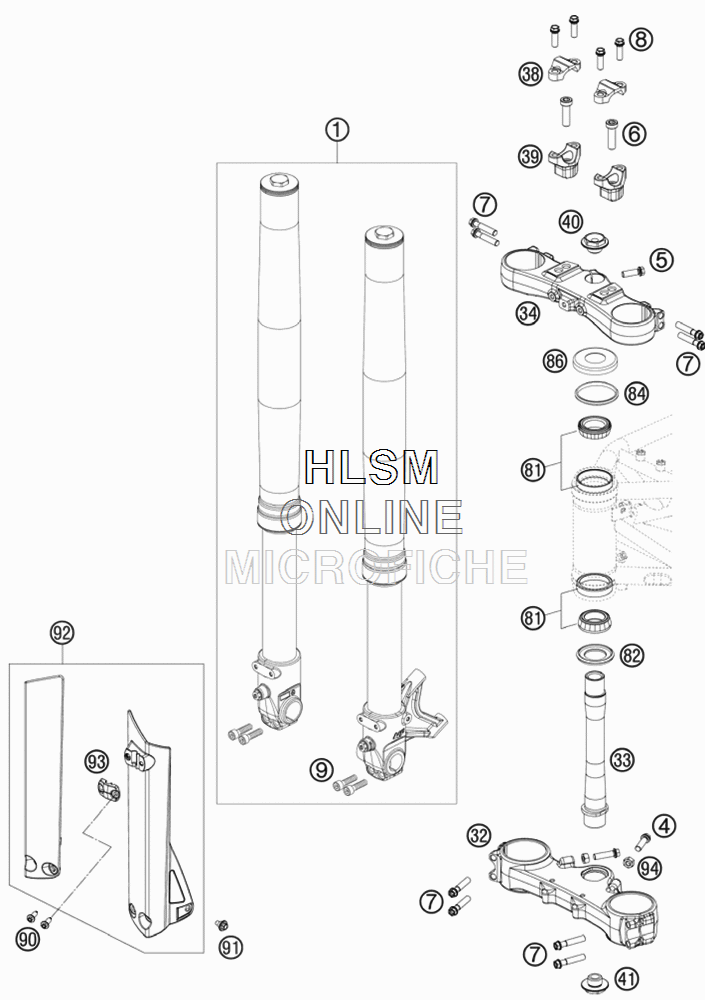

FRONT FORK TRIPLE CLAMP для Ktm 690 SMC - 2009 года выпуска
-
№АртикулНазвание
-
1*14187E1201 FORK 690 SMCFORK 690 SMC
-
40025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
50025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
60912100356 AH SCREW DIN6912-M10X35 10.9AH SCREW DIN6912-M10X35 10.9
-
70025080406 HH COLLAR SCREW M8X40 TX40HH COLLAR SCREW M8X40 TX40
-
80025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
90912080303 AH SCREW DIN0912-M 8X30AH SCREW DIN0912-M 8X30
-
327650113103301 BOT.TRIPLE CLAMP 32-34 OFFSETBOT.TRIPLE CLAMP 32-34 OFFSET
-
3376501033000 FORK TUBE L=237MMFORK TUBE L=237MM
-
347650113403301 TRIPLE CLAMP TOP 32-34 ADJUST.TRIPLE CLAMP TOP 32-34 ADJUST.
-
3859401038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
3959401039042 HANDLEB.SUPP. D=28MM H=42MMHANDLEB.SUPP. D=28MM H=42MM
-
4054801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
4154801036100 STE.HEAD SCR. M20X1,5 WS=27 SLSTE.HEAD SCR. M20X1,5 WS=27 SL
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084200 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
900017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
927650109400030 FORK PROTECT. L/S+R/S BLACK 08FORK PROTECT. L/S+R/S BLACK 08
-
937650109201030 FORK PROTECTOR CLAMPFORK PROTECTOR CLAMP
-
940934080003 HEXAGON NUT DIN0934-M8HEXAGON NUT DIN0934-M8
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BALANCER SHAFT
- BATTERY
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EVAPORATIVE CANISTER
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- • FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- FUEL PUMP
- HAND BRAKE CYLINDER
- HANDLEBAR CONTROLS
- IGNITION SYSTEM
- INSTRUMENTS/LOCK SYSTEM
- LIGHTING SYSTEM
- LUBRICATING SYSTEM
- MASK FENDERS
- MONOSHOCK
- PRO LEVER LINKING
- REAR BRAKE CONTROL
- REAR WHEEL
- SECONDARY AIR SYSTEM SAS
- SHIFTING MECHANISM
- SIDE/CENTER STAND
- SPECIAL TOOLS - ENGINE
- SPECIAL TOOLS - FRAME
- SWINGARM
- TANK SEAT COVER
- THROTTLE BODY
- TIMING DRIVE
- TRANSMISSION I - MAIN SHAFT
- TRANSMISSION II - COUNTERSHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
