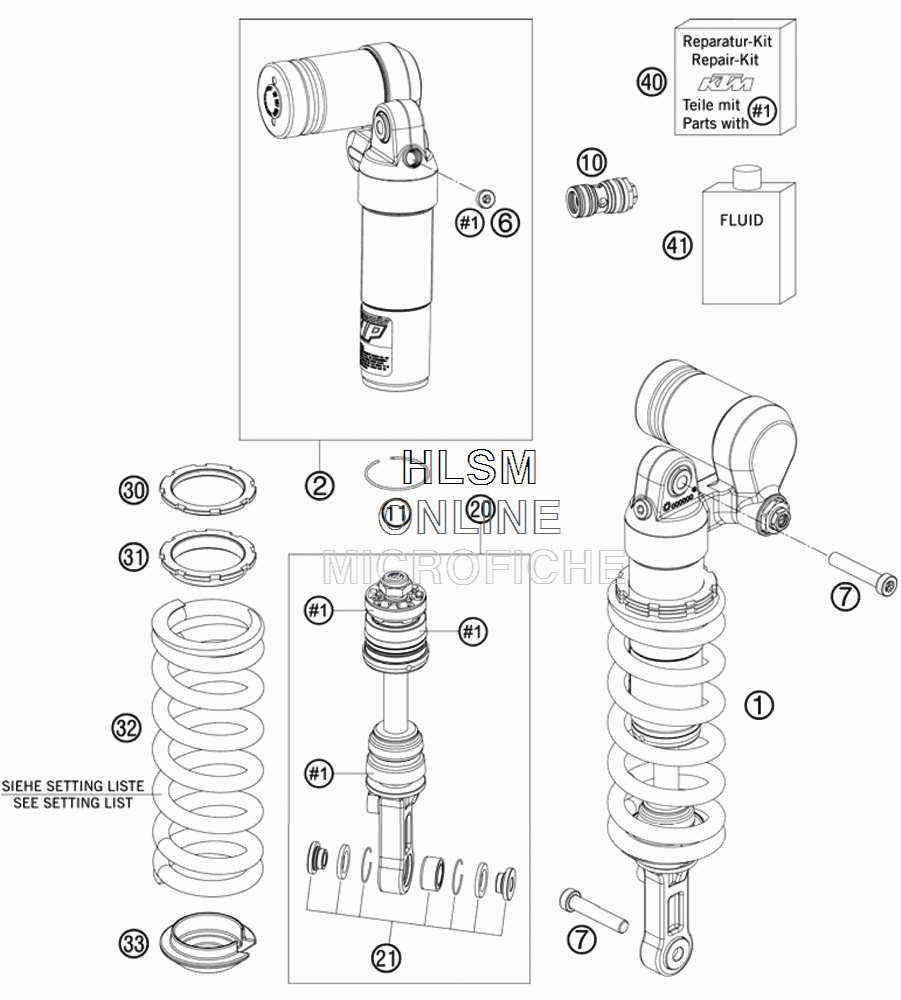

MONOSHOCK для Ktm 690 SMC - 2009 года выпуска
-
№АртикулНазвание
-
1*15187E12 MONOSHOCK 690 SMCMONOSHOCK 690 SMC
-
2*46180776S1 SHOCK ABS. UPPER CPL.SHOCK ABS. UPPER CPL.
-
650180095 BLEED PLUG R 1/8BLEED PLUG R 1/8
-
776504016000 CYL. SCREW M10X1,25 L=53CYL. SCREW M10X1,25 L=53
-
1046180533S1 DCC-COMPR.DAMP.CONTROLDCC-COMPR.DAMP.CONTROL
-
1146810010 CIRCLIP 49X1,5CIRCLIP 49X1,5
-
2046180654S1 SHOCK ABS BOTTOM CPL. ENDUROSHOCK ABS BOTTOM CPL. ENDURO
-
21R15006 REPAIR KIT BEARINGSREPAIR KIT BEARINGS
-
30*46180766 COUNTERNUTCOUNTERNUT
-
31*46180855 ADJUSTING NUTADJUSTING NUT
-
3291110003S SPRING 220MM 75N/MM (61)SPRING 220MM 75N/MM (61)
-
3291110004S SPRING 220MM 80N/MM (61)SPRING 220MM 80N/MM (61)
-
3291110005S SPRING 220MM 85N/MM (61)SPRING 220MM 85N/MM (61)
-
3346180396 SPRING RETAINER H=15 D=28SPRING RETAINER H=15 D=28
-
40R15004 REPAIR KIT GASKETREPAIR KIT GASKET
-
4150180342S1 SHOCK ABSORBER FLUID 5 LTSHOCK ABSORBER FLUID 5 LT
