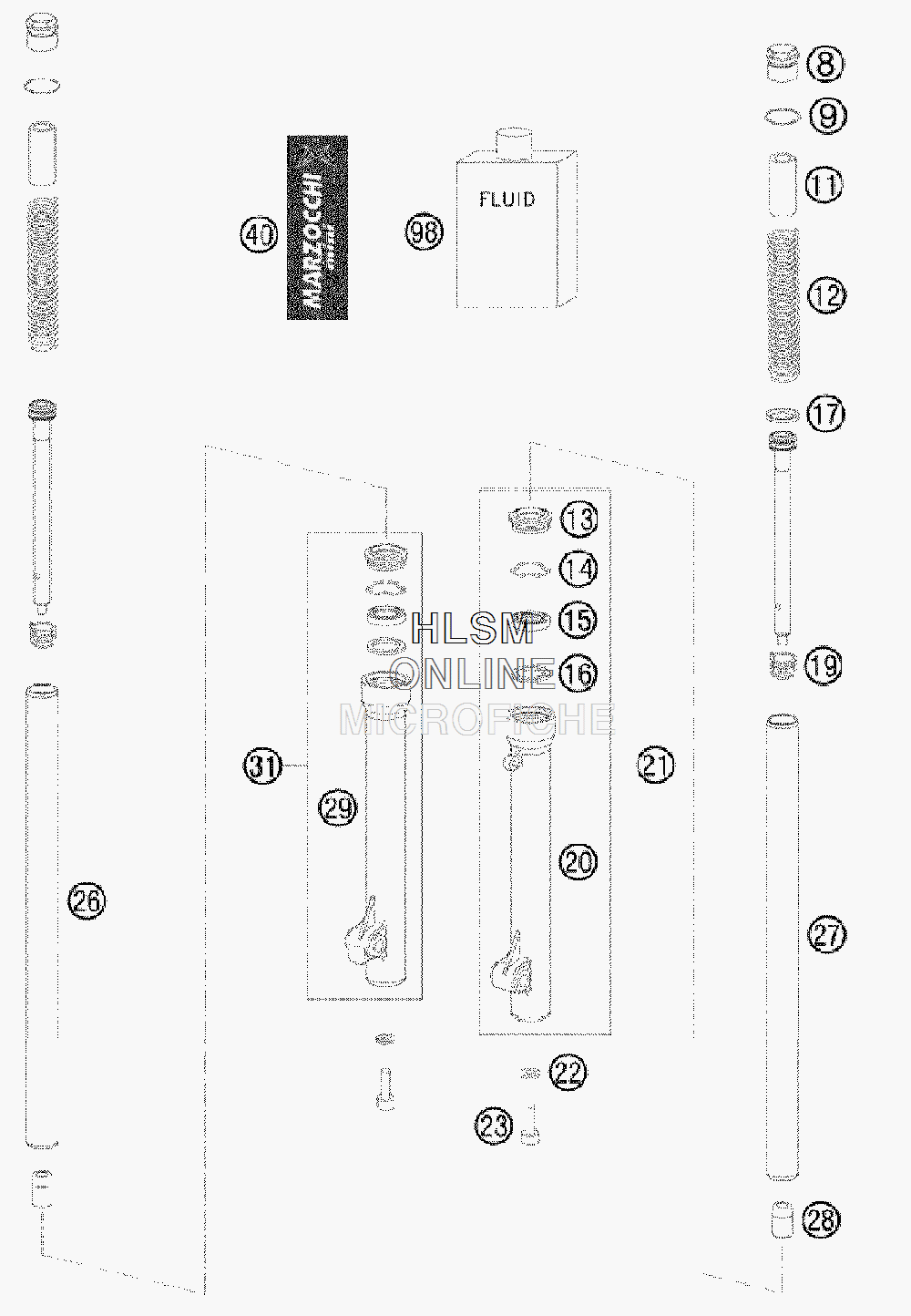

FRONT FORK DISASSEMBLED для Ktm 50 SX Junior LC - 2009 года выпуска

  • №
    Артикул
    Название
  • 8
    7504212AC PLUG CAP
    PLUG CAP
  • 9
    7528010 O-RING
    O-RING
  • 11
    7518031 PRE LOAD BUSH L=55MM
    PRE LOAD BUSH L=55MM
  • 12
    75141169 SPRING 2N/MM
    SPRING 2N/MM
  • 12
    75141214 SPRING 2,5N/MM
    SPRING 2,5N/MM
  • 13
    7533297 DUST SEAL
    DUST SEAL
  • 14
    7523264 STOP RING
    STOP RING
  • 15
    7528230 OIL SEAL 32/42/6,5-9,5
    OIL SEAL 32/42/6,5-9,5
  • 16
    7522166AA WASHER D42X32,5X1,5
    WASHER D42X32,5X1,5
  • 17
    7524157 PISTON RING D32 ONLY FOR REBOUND DAMPING
    PISTON RING D32 ONLY FOR REBOUND DAMPING
  • 19
    75141015 REBOUND SPRING
    REBOUND SPRING
  • 20
    75031570A SLIDER L/S 50 LC
    SLIDER L/S 50 LC
  • 21
    75031570A/R SLIDER CPL. L/S 50LC
    SLIDER CPL. L/S 50LC
  • 22
    7522225 WASHER 14X8X1,5
    WASHER 14X8X1,5
  • 23
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 26
    7708247/R FORK TUBE R/S MINI/JUN.
    FORK TUBE R/S MINI/JUN.
  • 27
    7708248/R FORK TUBE L/S MINI/JUN.
    FORK TUBE L/S MINI/JUN.
  • 28
    7512068 FOOT BUFFER
    FOOT BUFFER
  • 29
    75031571A SLIDER R/S 50 LC
    SLIDER R/S 50 LC
  • 31
    75031571A/R SLIDER CPL. R/S 50LC
    SLIDER CPL. R/S 50LC
  • 40
    7547325 STICKER LEFT SIDE MARZ OCCHI
    STICKER LEFT SIDE MARZ OCCHI
  • 40
    7547331 STICKER RIGHT SIDE MARZ OCCHI
    STICKER RIGHT SIDE MARZ OCCHI
  • 98
    7550013 FORKOIL EBH16 SAE 7.5
    FORKOIL EBH16 SAE 7.5
