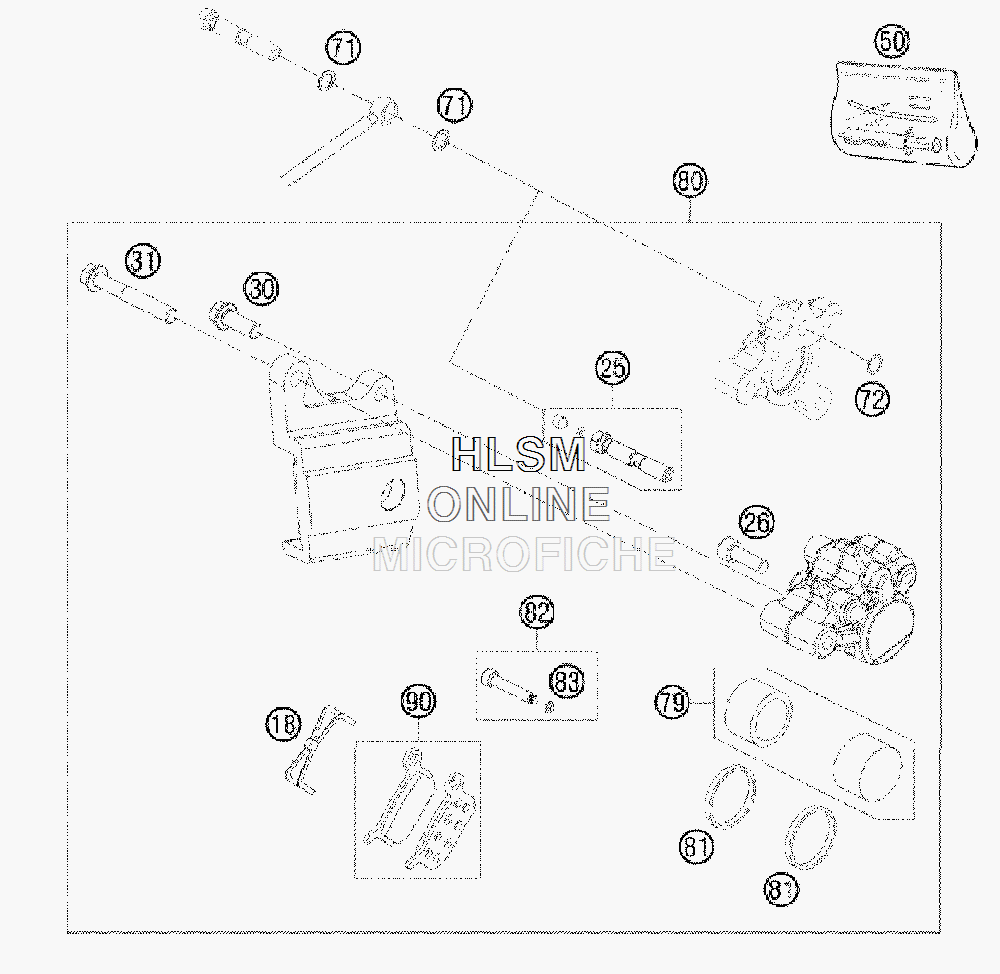

BRAKE CALIPER REAR для Ktm 50 SX Junior LC - 2009 года выпуска`
-
№АртикулНазвание
-
1845113018000 RETAINING SPRING 50 LCRETAINING SPRING 50 LC
-
2546113225000 HOLLOW SCREW CPL.HOLLOW SCREW CPL.
-
260912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
300025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
310025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
5045119050000 BLEEDER INJECTION-SET 50-65BLEEDER INJECTION-SET 50-65
-
710770060019 O-RING 6,00X1,00 FORMULAO-RING 6,00X1,00 FORMULA
-
720770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
7945113019100 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
8045113080000 BRAKE CALIPER REAR CPL.50LCBRAKE CALIPER REAR CPL.50LC
-
810770022020 O-RING 22X2X2 EPDMO-RING 22X2X2 EPDM
-
8245113225000 AH SCREW + CIRCLIP 50/65AH SCREW + CIRCLIP 50/65
-
830799025000 TAB WASHER DIN6799 RS2,5TAB WASHER DIN6799 RS2,5
-
9045113030000 BRAKE PAD SET 50 LCBRAKE PAD SET 50 LC
