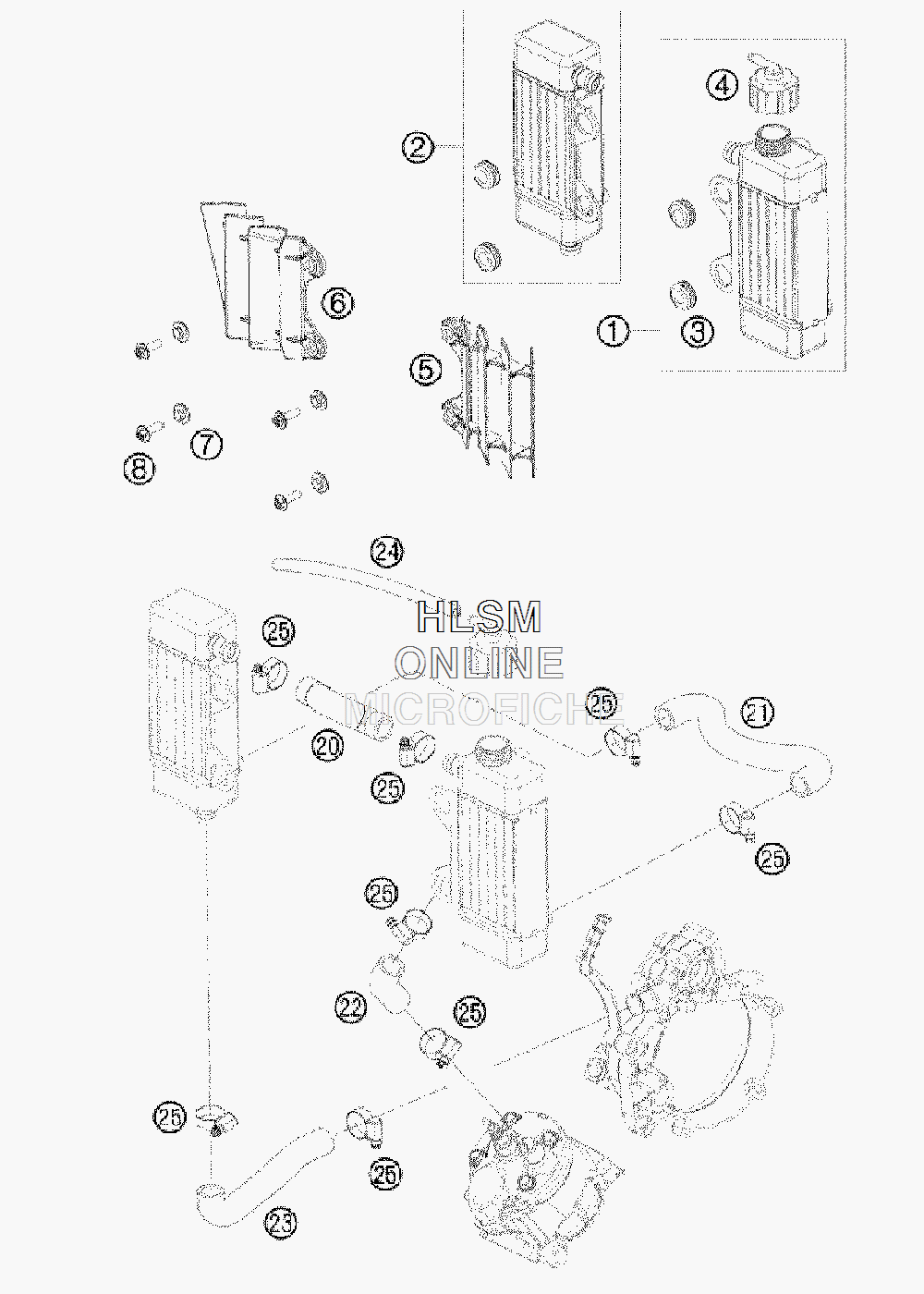

COOLING SYSTEM для Ktm 50 SX Junior LC - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    45235007000 RADIATOR L/S 50 SX
    RADIATOR L/S 50 SX
  • 2
    45235008000 RADIATOR R/S 50 SX
    RADIATOR R/S 50 SX
  • 3
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 4
    45235009000 RADIATOR CAP 1,8 BAR
    RADIATOR CAP 1,8 BAR
  • 5
    45235034000 RAD. PROTECT. L/S 50 SXS
    RAD. PROTECT. L/S 50 SXS
  • 6
    45235035000 RAD. PROTECT. R/S 50 SX
    RAD. PROTECT. R/S 50 SX
  • 7
    54808020000 SPACER BUSHING
    SPACER BUSHING
  • 8
    0023060203 COLLAR SCREW M6X20
    COLLAR SCREW M6X20
  • 20
    45235026100 RADIATOR HOSE AHEAD 50 SX JUN
    RADIATOR HOSE AHEAD 50 SX JUN
  • 21
    45235027100 RADIATOR HOSE BELOW 50 SX JUN
    RADIATOR HOSE BELOW 50 SX JUN
  • 22
    45235025100 PREFORMED HOSE 50 SX JUN. L/S
    PREFORMED HOSE 50 SX JUN. L/S
  • 23
    45235024100 PREFORMED HOSE 50 SX JUN. R/S
    PREFORMED HOSE 50 SX JUN. R/S
  • 24
    60035067001 HOSE 6X10 EPDM
    HOSE 6X10 EPDM
  • 25
    42013037200 HOSE CLAMP GEMI 12/22
    HOSE CLAMP GEMI 12/22
