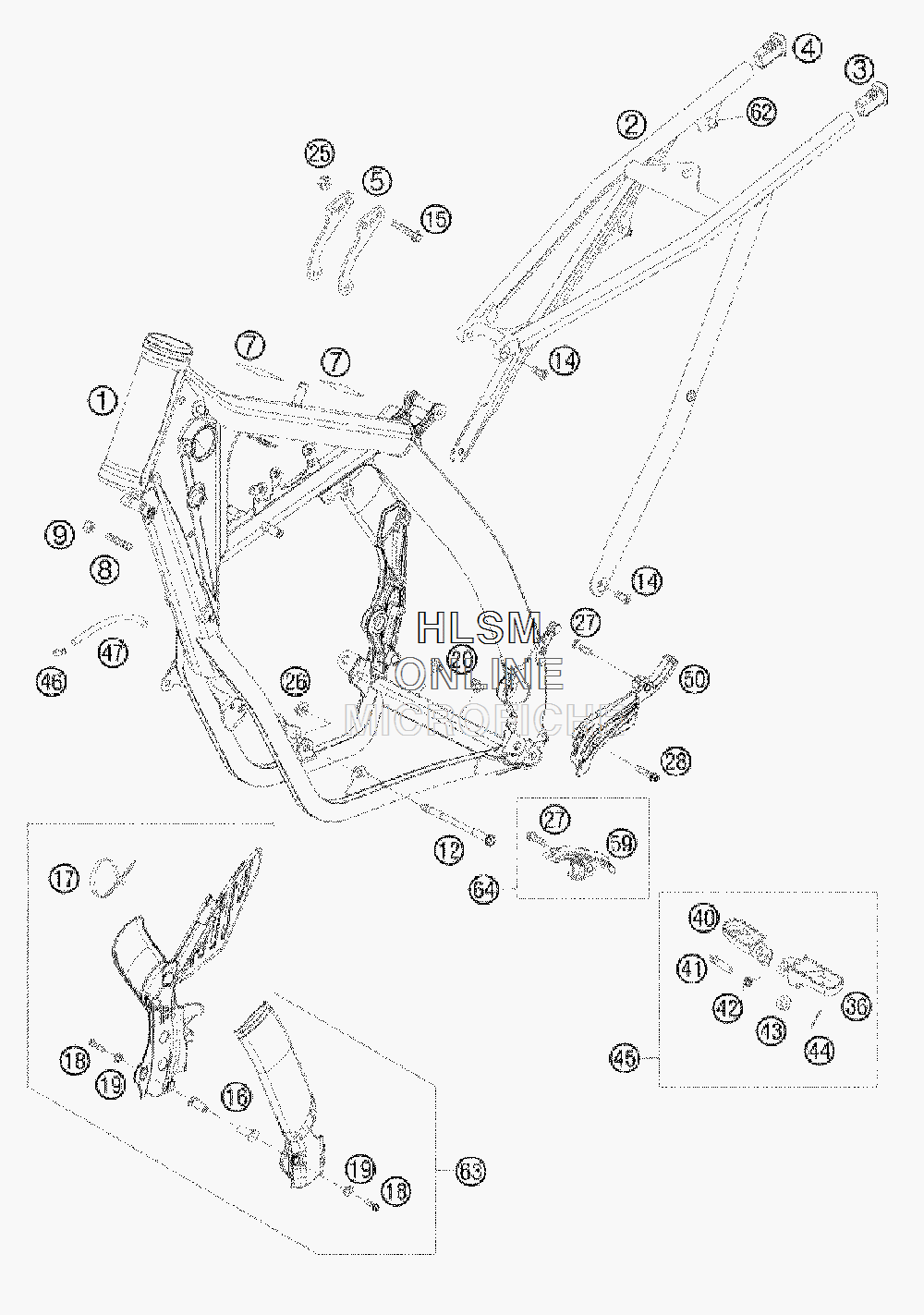

FRAME для Ktm 200 XC-W - 2009 года выпуска`
-
№АртикулНазвание
-
15030340110030 FRAME 200 XC-US ''BB08''FRAME 200 XC-US ''BB08''
-
277303002000 SUB FRAME SX ''Q7''SUB FRAME SX ''Q7''
-
378003002010 SUB FRAME APPLICATION LEFTSUB FRAME APPLICATION LEFT
-
478003002020 SUB FRAME APPLICATION RIGHTSUB FRAME APPLICATION RIGHT
-
552303113000 REINFORCING B. 200 EXCREINFORCING B. 200 EXC
-
750307012000 ADH. FOIL TRANSP. 80X80 MMADH. FOIL TRANSP. 80X80 MM
-
859001037000 SPECIAL SCREW M8X26SPECIAL SCREW M8X26
-
90934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
1254603013000 ENGINE BRAC.SCR. M10X105ENGINE BRAC.SCR. M10X105
-
140019080206S FLAT HEAD SCREW M. ISA45FLAT HEAD SCREW M. ISA45
-
1556530079000 COLLAR SCREW M8X42 WS=13COLLAR SCREW M8X42 WS=13
-
1654803092050 BLIND PLUG-IN NUT M5 WN 22ABLIND PLUG-IN NUT M5 WN 22A
-
1744011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
180738050250 COU.SUNK SCR. AH ISO7380 M5X25COU.SUNK SCR. AH ISO7380 M5X25
-
1954803092060 BUSH F. FRAME PROTECTIONBUSH F. FRAME PROTECTION
-
2054403135000 PLASTIC CAP SFL10PLASTIC CAP SFL10
-
2554310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
2654310086100 SELF LOCKING NUT M10 CUSELF LOCKING NUT M10 CU
-
270025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
280025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
3659003040250 FOOT PED L/S SILVERFOOT PED L/S SILVER
-
4059003041250 FOOT PED R/S SILVERFOOT PED R/S SILVER
-
4154803044000 BOLT FOR FOOT PEDBOLT FOR FOOT PED
-
4254603041000 FOOTREST SPRING L/S AND R/SFOOTREST SPRING L/S AND R/S
-
430125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
440094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
455030314013390 FOOTREST L.+R. CPL.FOOTREST L.+R. CPL.
-
4650303089000 ANGEL PIECEANGEL PIECE
-
4755007016001 PVC-HOSE 7X10 PER METERPVC-HOSE 7X10 PER METER
-
5054803096000 SPROCKET COVER 250 SXSPROCKET COVER 250 SX
-
5977303053000 CHAIN SLIDING PIECE BELOWCHAIN SLIDING PIECE BELOW
-
6277303139000 BLIND RIVET NUT EM6-60LF/HXBLIND RIVET NUT EM6-60LF/HX
-
6377303094100 PLASTIC FRAME PROTECTION SETPLASTIC FRAME PROTECTION SET
-
6477303053010 CHAIN SLIDING P. BELOW CPL.CHAIN SLIDING P. BELOW CPL.
