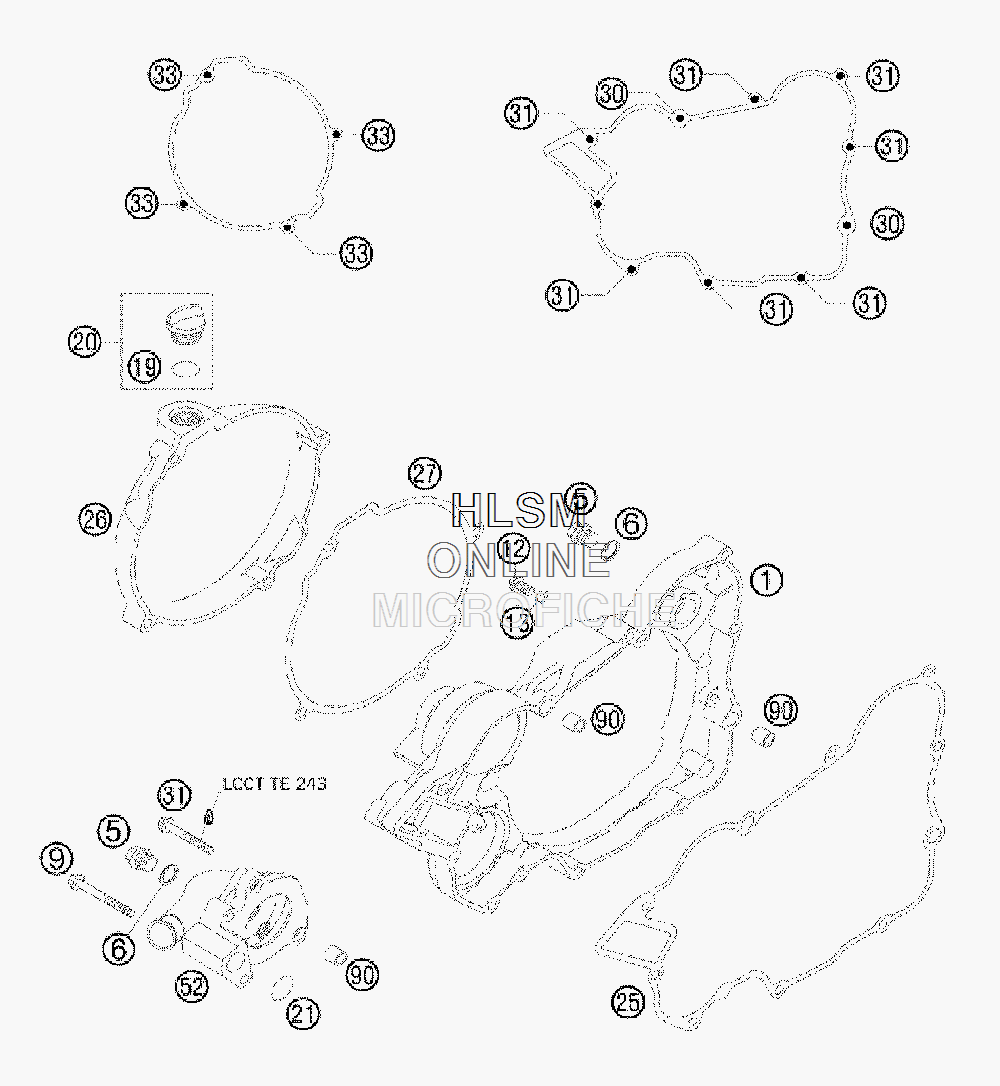

CLUTCH COVER для Ktm 200 XC-W - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5033000114415 CLUTCH COVER CPL.
    CLUTCH COVER CPL.
  • 5
    0910100003 PLUG DIN0910-M 10X1
    PLUG DIN0910-M 10X1
  • 6
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 9
    0025060506 HH COLLAR SCREW M6X50
    HH COLLAR SCREW M6X50
  • 12
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 13
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 19
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 20
    58030120000 OIL FILLER CAP M24X3 WITH O-R
    OIL FILLER CAP M24X3 WITH O-R
  • 21
    0770160030 O-RING 16,00X3,00 NBR 70
    O-RING 16,00X3,00 NBR 70
  • 25
    50330025000 CLUTCH COVER GASKET 0,5MM
    CLUTCH COVER GASKET 0,5MM
  • 26
    5033002610015 CLUTCH OUTSIDE COVER
    CLUTCH OUTSIDE COVER
  • 27
    50330027000 CLUTCH OUTS.COVER GASKET 1MM
    CLUTCH OUTS.COVER GASKET 1MM
  • 30
    0025060406 HH COLLAR SCREW M6X40
    HH COLLAR SCREW M6X40
  • 31
    0025060356 HH COLLAR SCREW M6X35
    HH COLLAR SCREW M6X35
  • 33
    0025060306 HH COLLAR SCREW M6X30
    HH COLLAR SCREW M6X30
  • 52
    50335052000 WATER PUMP COVER 125/200
    WATER PUMP COVER 125/200
  • 90
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
