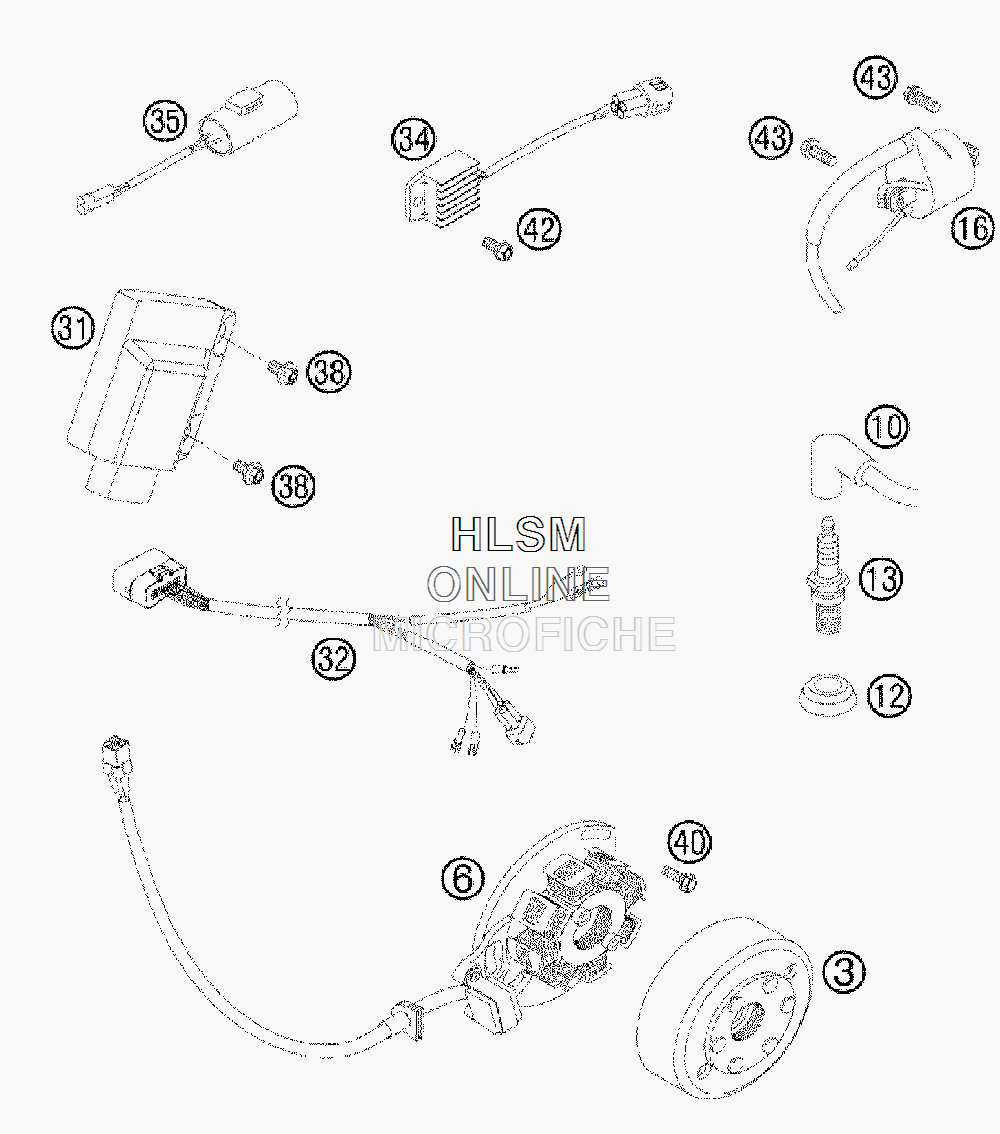

IGNITION SYSTEM для Ktm 200 XC-W - 2009 года выпуска

  • №
    Артикул
    Название
  • 3
    50339005200 FLYWHEEL KOKUSAN 2K-3
    FLYWHEEL KOKUSAN 2K-3
  • 6
    54839204000 STATOR KOKUSAN 2K-3
    STATOR KOKUSAN 2K-3
  • 10
    47039090000 SPARK PLUG CAP NGK REINFORC.
    SPARK PLUG CAP NGK REINFORC.
  • 12
    50231012000 SEALING CUP FOR SPARK PLUG
    SEALING CUP FOR SPARK PLUG
  • 13
    54331093310 SPARK PLUG NGK BR8EG
    SPARK PLUG NGK BR8EG
  • 16
    59039006000 IGNITIONCOIL KOKUSAN 4K3-A/B
    IGNITIONCOIL KOKUSAN 4K3-A/B
  • 31
    52339031900 CDI UNIT 200 XC/EXC
    CDI UNIT 200 XC/EXC
  • 32
    54839032300 WIRING HARNESS F.CDI 2-ST.SX07
    WIRING HARNESS F.CDI 2-ST.SX07
  • 34
    80011034000 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 35
    50311035000 CONDENSATOR 2200MF ADP-48
    CONDENSATOR 2200MF ADP-48
  • 38
    0023060123 COLLAR SCREW M6X12
    COLLAR SCREW M6X12
  • 40
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 42
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
  • 43
    0025060166 HH COLLAR SCREW M6X16
    HH COLLAR SCREW M6X16
