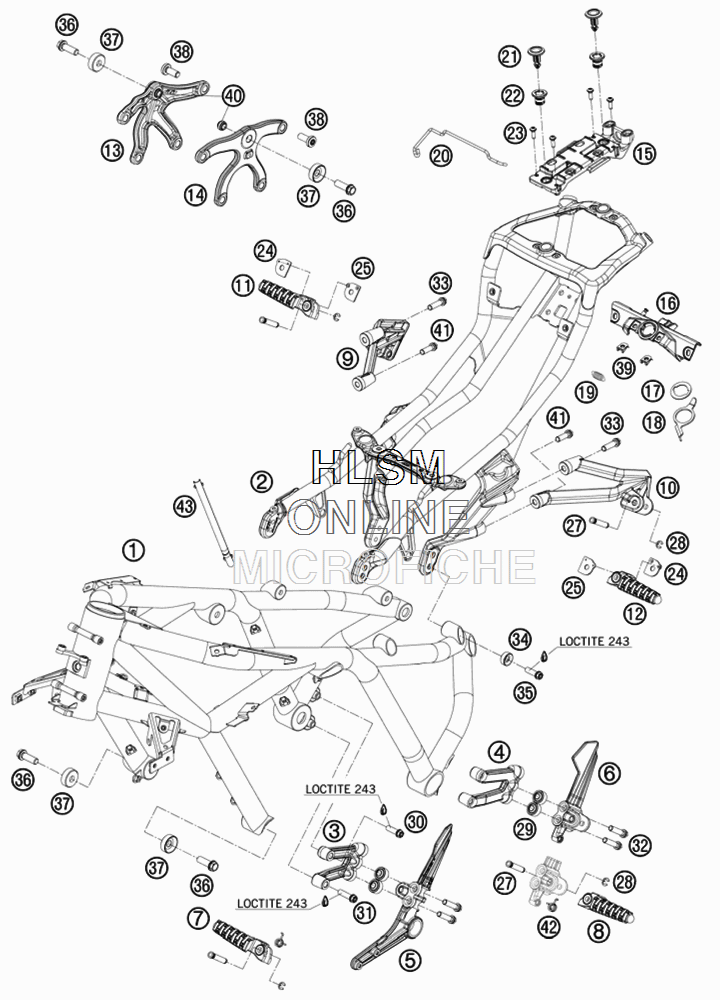

FRAME для Ktm 1190 RC 8 (SERIAL 9M953734-9M953793) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    6900300100033 FRAME "OA08" RC8
    FRAME "OA08" RC8
  • 2
    6900300200092 SUB FRAME PLATINUM
    SUB FRAME PLATINUM
  • 3
    69003039000 FOOTREST BRACKET R/S
    FOOTREST BRACKET R/S
  • 4
    69003038000 FOOTREST BRACKET L/S
    FOOTREST BRACKET L/S
  • 5
    69003039050 FOOTREST MOUNTING R/S
    FOOTREST MOUNTING R/S
  • 6
    69003038050 FOOTREST MOUNTING L/S
    FOOTREST MOUNTING L/S
  • 7
    69003041000 FOOTREST FRONT R/S
    FOOTREST FRONT R/S
  • 8
    69003040000 FOOTREST FRONT L/S
    FOOTREST FRONT L/S
  • 9
    6900304900001S FOOTREST BRACKET REAR R/S
    FOOTREST BRACKET REAR R/S
  • 10
    6900304800001S FOOTREST BRACKET REAR L/S
    FOOTREST BRACKET REAR L/S
  • 11
    69003051033 FOOTREST REAR R/S CPL.
    FOOTREST REAR R/S CPL.
  • 12
    69003050033 FOOTREST REAR L/S CPL.
    FOOTREST REAR L/S CPL.
  • 13
    69003006000 ENGINE SUPPORT R/S
    ENGINE SUPPORT R/S
  • 14
    69003005000 ENGINE SUPPORT L/S
    ENGINE SUPPORT L/S
  • 15
    69008025000 REAR SEAT ADJUSTMENT
    REAR SEAT ADJUSTMENT
  • 16
    69008027000 LOCK BRIDGE
    LOCK BRIDGE
  • 17
    69008025070 WASHER LEVER REAR SEAT RELEASE
    WASHER LEVER REAR SEAT RELEASE
  • 18
    69008025060 LEVER REAR SEAT RELEASE
    LEVER REAR SEAT RELEASE
  • 19
    69008025080 SPRING F. REAR SEAT LOCK
    SPRING F. REAR SEAT LOCK
  • 20
    69008025050 ADJUSTMENT WIRE REAR SEAT
    ADJUSTMENT WIRE REAR SEAT
  • 21
    69008026050 CLOSURE CAP
    CLOSURE CAP
  • 22
    69008026000 GUIDE BUSHING
    GUIDE BUSHING
  • 23
    0081050161 EJOT PT SCREW K50X16 1451
    EJOT PT SCREW K50X16 1451
  • 24
    60003052000 ENGAGE PANEL FOOTREST R/S
    ENGAGE PANEL FOOTREST R/S
  • 25
    60003152000 ENGAGE PANEL FOOTREST L/S
    ENGAGE PANEL FOOTREST L/S
  • 27
    60003044000 BOLT FOR FOOTREST REAR
    BOLT FOR FOOTREST REAR
  • 28
    0799060003 TAB WASHER DIN6799-RS 6,0
    TAB WASHER DIN6799-RS 6,0
  • 29
    69003047000 DISTANCE BUSHING 8,5X21X14 ALU
    DISTANCE BUSHING 8,5X21X14 ALU
  • 30
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 31
    0025080306S HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 32
    0025080356 HH COLLAR SCREW M8X35 TX40
    HH COLLAR SCREW M8X35 TX40
  • 33
    0025080556 HH COLLAR SCREW M8X55 TX40
    HH COLLAR SCREW M8X55 TX40
  • 34
    6900300400001 WASHER SUB FRAME MOUNTING
    WASHER SUB FRAME MOUNTING
  • 35
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 36
    0035100309S AH-COLLAR SCREW M10X30 ISA45
    AH-COLLAR SCREW M10X30 ISA45
  • 37
    6900300700001 WASHER ENGINE SUSPENSION
    WASHER ENGINE SUSPENSION
  • 38
    0035100249 AH-COLLAR SCREW M10X24 ISA45
    AH-COLLAR SCREW M10X24 ISA45
  • 39
    69008021080 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 40
    69004095000 ADAPTOR NUT M10
    ADAPTOR NUT M10
  • 41
    0025080506 HH COLLAR SCREW M8X50 TX40
    HH COLLAR SCREW M8X50 TX40
  • 42
    61003042000 SPRING FOOTREST FRONT
    SPRING FOOTREST FRONT
  • 43
    69011047000 CABLE DUCT BRAKE LIGHT SW. RC8
    CABLE DUCT BRAKE LIGHT SW. RC8
