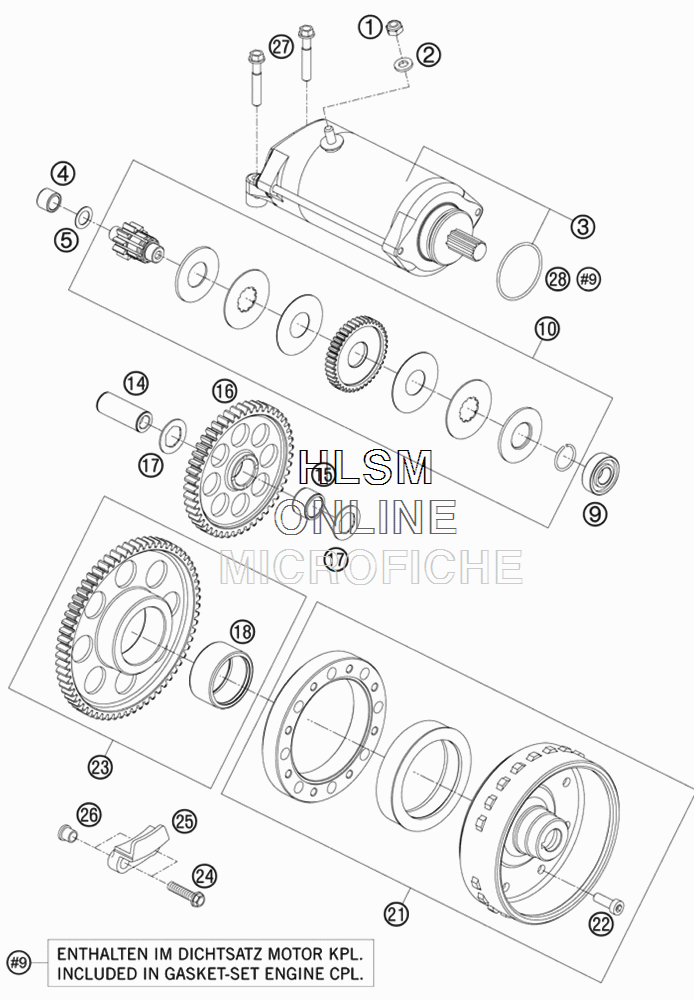

ELECTRIC STARTER для Ktm 1190 RC 8 (SERIAL 9M953734-9M953793) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 2
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 3
    61240001000 E-STARTER ENGINE 9T
    E-STARTER ENGINE 9T
  • 4
    0618101410 NEEDLE SLEEVE HK 1010 10/14/10
    NEEDLE SLEEVE HK 1010 10/14/10
  • 5
    60038007010 WASHER 10X16X0,5
    WASHER 10X16X0,5
  • 9
    0625060016 GROOV.BALL BEAR. 6001.2RSR C3
    GROOV.BALL BEAR. 6001.2RSR C3
  • 10
    61240017100 TORQUE LIMITER 10/45 CPL.
    TORQUE LIMITER 10/45 CPL.
  • 14
    61230058050 BEARING BOLT 15X39
    BEARING BOLT 15X39
  • 15
    0405151913 NEEDLE BEARING K 15X19X13
    NEEDLE BEARING K 15X19X13
  • 16
    61240022100 INTERMEDIATE GEAR 43T
    INTERMEDIATE GEAR 43T
  • 17
    61230057060 STOP DISK 15,2X25X1
    STOP DISK 15,2X25X1
  • 18
    0618354220 NEEDLE BUSH HK3520 35/42/20
    NEEDLE BUSH HK3520 35/42/20
  • 21
    61239005000 FLYWHEEL CPL.
    FLYWHEEL CPL.
  • 22
    0984060203 AH SCREW DIN6912-M 6X20 8.8
    AH SCREW DIN6912-M 6X20 8.8
  • 23
    61240020200 FREEWHEEL GEAR CPL. 66T
    FREEWHEEL GEAR CPL. 66T
  • 24
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 25
    60040027000 FREEWHEEL HOLDER
    FREEWHEEL HOLDER
  • 26
    60040027050 SUPPORTING SLEEVE
    SUPPORTING SLEEVE
  • 27
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 28
    0770335030 O-RING 33,5X3 VITON
    O-RING 33,5X3 VITON
