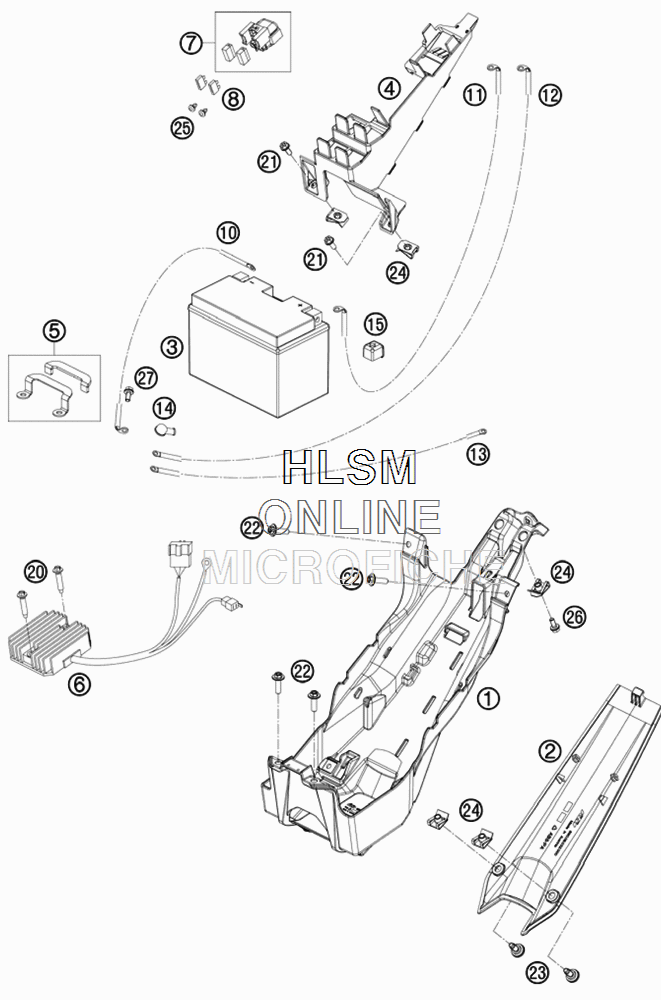

BATTERY для Ktm 1190 RC 8 (SERIAL 9M953734-9M953793) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    69008019000 TAIL END LOWER PART RC8
    TAIL END LOWER PART RC8
  • 2
    6900803200033 LOWER REAR END PANEL
    LOWER REAR END PANEL
  • 3
    60011053000 BATTERY 12V/11AH
    BATTERY 12V/11AH
  • 4
    69011048000 BRACKET FOR PLUGS
    BRACKET FOR PLUGS
  • 5
    69011055044 BATTERY RETAINING PLATE CPL.
    BATTERY RETAINING PLATE CPL.
  • 6
    60011034100 VOLTAGE REGULATOR
    VOLTAGE REGULATOR
  • 7
    58211058000 STARTER RELAY 12V
    STARTER RELAY 12V
  • 8
    58011109130 FUSE 30 A
    FUSE 30 A
  • 10
    69011097000 GROUND CABLE
    GROUND CABLE
  • 11
    69011059050 BATTERY CABLE
    BATTERY CABLE
  • 12
    69011059000 STARTER CABLE
    STARTER CABLE
  • 13
    69011096000 GROUND CABLE STARTER TO FRAME
    GROUND CABLE STARTER TO FRAME
  • 14
    60040009000 RUBBER CAP STARTER PORT
    RUBBER CAP STARTER PORT
  • 15
    69011059060 COVER F. POSITIVE POLE RC8
    COVER F. POSITIVE POLE RC8
  • 20
    0017060303 SPECIAL SCREW T60 6X30 WS=6
    SPECIAL SCREW T60 6X30 WS=6
  • 21
    58605083010 SCREW TORX M5X10
    SCREW TORX M5X10
  • 22
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 23
    69008021060 SPECIAL SCREW M5X17
    SPECIAL SCREW M5X17
  • 24
    69008021080 RANGE CHANGE METAL NUT M5
    RANGE CHANGE METAL NUT M5
  • 25
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 26
    0025050126 HH COLLAR SCREW M5X12 TX30
    HH COLLAR SCREW M5X12 TX30
  • 27
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
