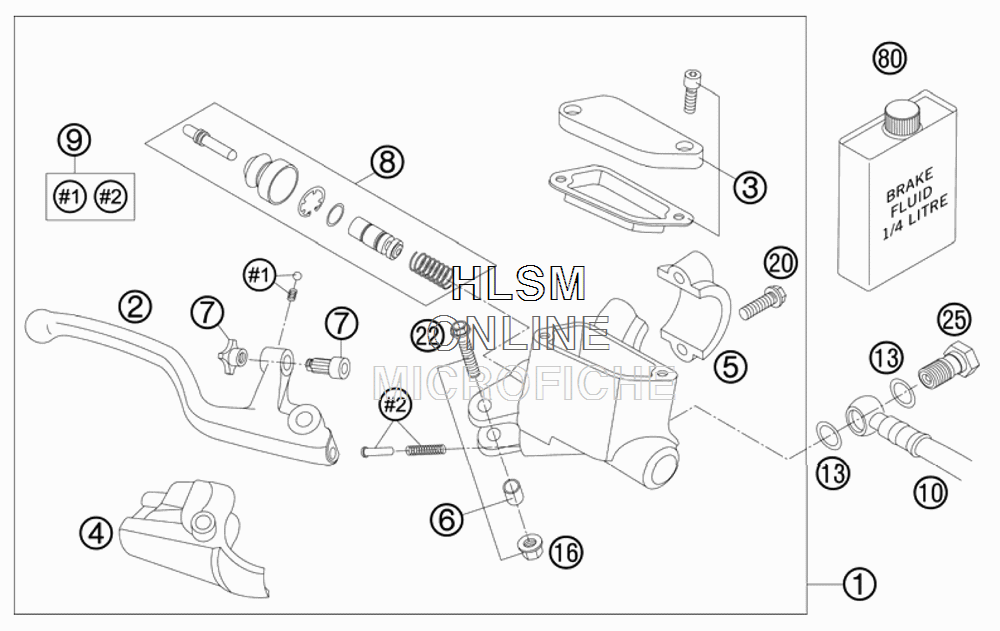

HAND BRAKE CYLNDER для Ktm 85 XC - 2008 года выпуска`
-
№АртикулНазвание
-
147013001100 H.BRAKE CYL. CPL. 9,5MM CPL.05H.BRAKE CYL. CPL. 9,5MM CPL.05
-
247013002000 BRAKE LEVER LOOSE 85 SXBRAKE LEVER LOOSE 85 SX
-
347013003000 CYLINDER COVER CPL. FRONTCYLINDER COVER CPL. FRONT
-
447013004000 PROTECTION COVER 85 SXPROTECTION COVER 85 SX
-
547013005000 CLAMP FOR BRAKE CYLINDERCLAMP FOR BRAKE CYLINDER
-
647013006000 SCREW+BUSHING+NUTSCREW+BUSHING+NUT
-
747013007000 ADJUSTING SCREW CPL. 85 SXADJUSTING SCREW CPL. 85 SX
-
847013008100 REP.SET PISTON FRONTREP.SET PISTON FRONT
-
947013009000 BALL+SPRING+SPRING GUIDEBALL+SPRING+SPRING GUIDE
-
1047013010000 BRAKE HOSE FRONT 85 SXBRAKE HOSE FRONT 85 SX
-
130770080019 O-RING 8,00X1,00 EPDMO-RING 8,00X1,00 EPDM
-
1656509064100 SELF LOCKING NUT M6SELF LOCKING NUT M6
-
200025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
220025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
2547013025000 HOLLOW SCREW BRAKE CYLINDERHOLLOW SCREW BRAKE CYLINDER
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
