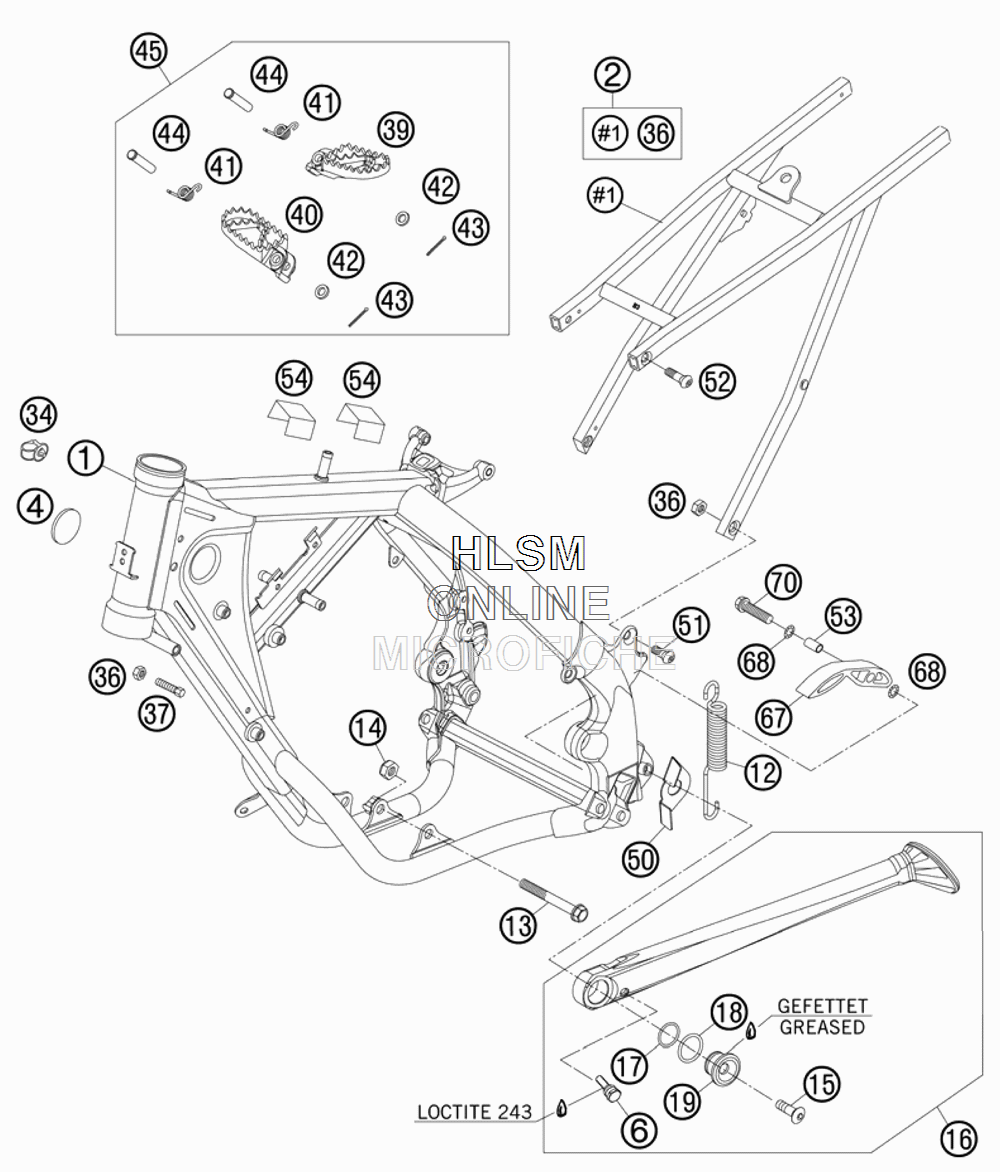

FRAME для Ktm 85 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    4700300130030 FRAME CPL. 85/105XC ''AB08''
    FRAME CPL. 85/105XC ''AB08''
  • 2
    47003002144 SUB FRAME 85 SX
    SUB FRAME 85 SX
  • 4
    54606004000 PLUG 37MM
    PLUG 37MM
  • 6
    50303023152 BOLT SIDE ST.SPRING M5 EGS
    BOLT SIDE ST.SPRING M5 EGS
  • 12
    50303024000 SIDESTAND SPRING 125-380EXC
    SIDESTAND SPRING 125-380EXC
  • 13
    47003013000 ENGINE BRACKET SCREW 85 SX
    ENGINE BRACKET SCREW 85 SX
  • 14
    54310086100 SELF LOCKING NUT M10 CU
    SELF LOCKING NUT M10 CU
  • 15
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 16
    47003023144 SIDE STAND CPL. 85 XC 14/17''
    SIDE STAND CPL. 85 XC 14/17''
  • 17
    0770125015 O-RING 12,5X1,5 NBR
    O-RING 12,5X1,5 NBR
  • 18
    0770180020 O-RING 18,00X2,00 NBR 70
    O-RING 18,00X2,00 NBR 70
  • 19
    78003023080 SIDE STAND BUSHING EXC USA
    SIDE STAND BUSHING EXC USA
  • 34
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 36
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 37
    59001037000 SPECIAL SCREW M8X26
    SPECIAL SCREW M8X26
  • 39
    59003040050 FOOT PED L/S EXC SILVER
    FOOT PED L/S EXC SILVER
  • 40
    59003041050 FOOT PED R/S EXC SILVER
    FOOT PED R/S EXC SILVER
  • 41
    54603041000 FOOTREST SPRING L/S AND R/S
    FOOTREST SPRING L/S AND R/S
  • 42
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 43
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 44
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 45
    4700304003390 FOOTREST L.+R. CPL. 85 SX
    FOOTREST L.+R. CPL. 85 SX
  • 50
    47003023050 STOP SHEET SST
    STOP SHEET SST
  • 51
    54610052000 SPROCKET SCREW-AH M8X20
    SPROCKET SCREW-AH M8X20
  • 52
    54510052100 SPROCKET SCREW-AH M8X26
    SPROCKET SCREW-AH M8X26
  • 53
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 54
    58711054050 METAMOLL FOR BATTERY BRACKET
    METAMOLL FOR BATTERY BRACKET
  • 67
    51103053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 68
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 70
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
