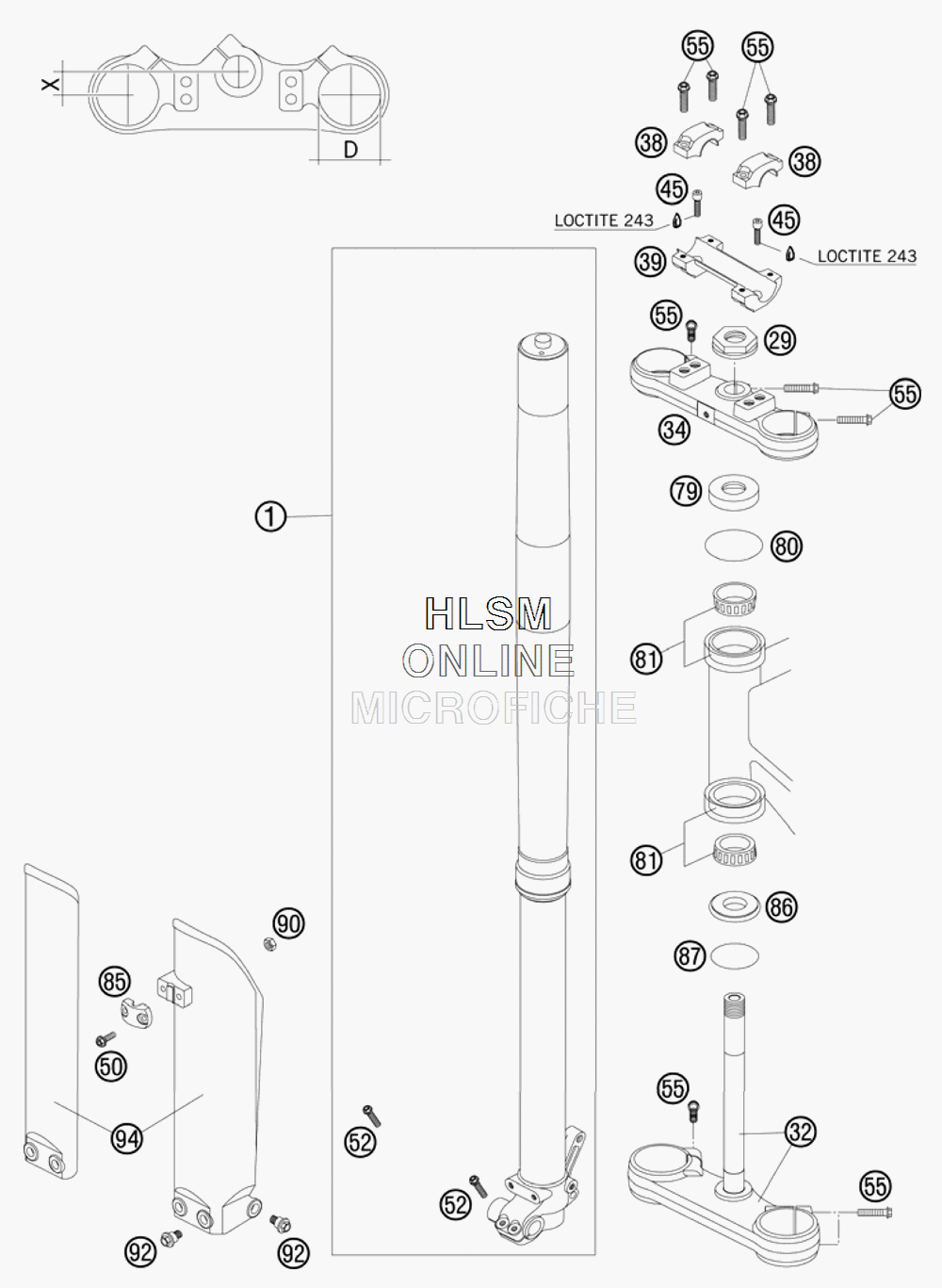

FRONT FORK для Ktm 85 XC - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    05187D06 FORK 85/105 XC
    FORK 85/105 XC
  • 29
    59030029000 HH NUT M20X1,5 RIGHT
    HH NUT M20X1,5 RIGHT
  • 32
    47001032014 BOT.TRIPLE CLAMP CPL. 85 SX
    BOT.TRIPLE CLAMP CPL. 85 SX
  • 34
    47001034014 TOP TRIPLE CLAMP 85 SX
    TOP TRIPLE CLAMP 85 SX
  • 38
    50301038000 HANDLEBAR CLAMP
    HANDLEBAR CLAMP
  • 39
    59001039000 HANDLEBAR SUPPORT 22MM 2T
    HANDLEBAR SUPPORT 22MM 2T
  • 45
    0912100250 AH SCREW DIN6912-M10X25,10.9,L
    AH SCREW DIN6912-M10X25,10.9,L
  • 50
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 52
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 55
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 79
    49001086000 COVERING CAP
    COVERING CAP
  • 80
    0770021300 O-RING 40,94X2,62 NBR70
    O-RING 40,94X2,62 NBR70
  • 81
    49001081000 TAPERED ROLLER BEARING 32004X
    TAPERED ROLLER BEARING 32004X
  • 85
    5460108500004 BRAKE HOSE CLAMP ORANGE
    BRAKE HOSE CLAMP ORANGE
  • 86
    46001086000 PROTECTION RING 20,1X39X5
    PROTECTION RING 20,1X39X5
  • 87
    0770360030 O-RING 36,00X3,00 NBR
    O-RING 36,00X3,00 NBR
  • 90
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 92
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 94
    4700109400004 FORK PROTECTOR L/S+R/S 85SX
    FORK PROTECTOR L/S+R/S 85SX
