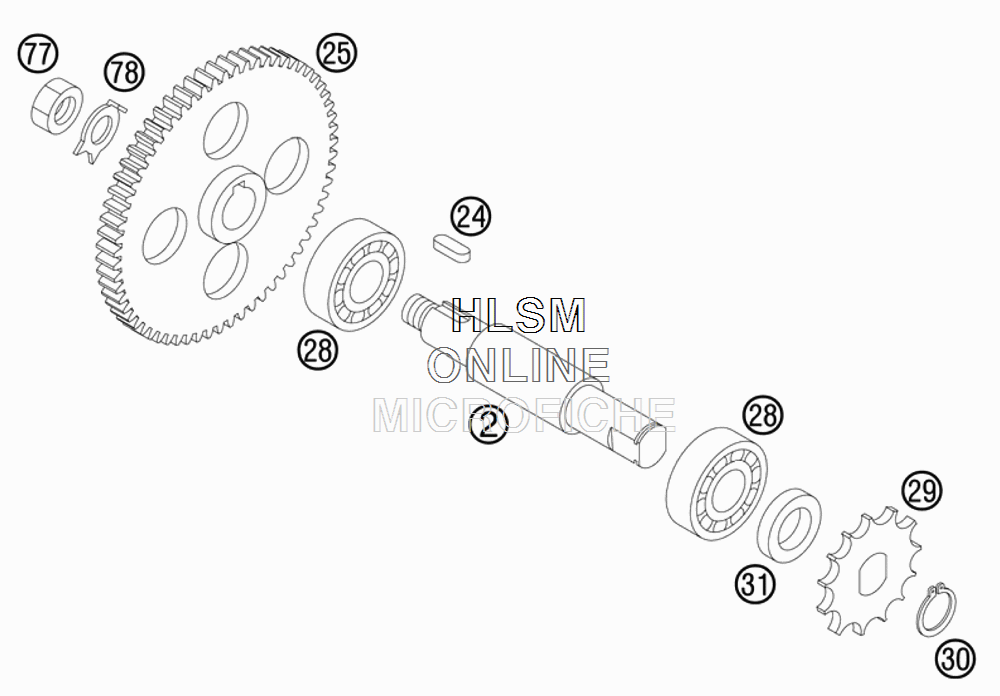

TRANSMISSION - COUNTER SHAFT для Ktm 50 SX - 2008 года выпуска`
-
№АртикулНазвание
-
245133002000 COUNTER SHAFT 50CCM LCCOUNTER SHAFT 50CCM LC
-
2445133024000 WOODRUFF KEY 5X5X12WOODRUFF KEY 5X5X12
-
2545132024057 PRIMARY GEAR 57-TPRIMARY GEAR 57-T
-
2845133028000 BALL BEARING 15X35X11BALL BEARING 15X35X11
-
2945133029009 SPROCKET 9-T 50 LCSPROCKET 9-T 50 LC
-
2945133029010 SPROCKET 10-T 50 LCSPROCKET 10-T 50 LC
-
2945133029011 SPROCKET 11-T 50 LCSPROCKET 11-T 50 LC
-
2945133029012 SPROCKET 12-T 50 LCSPROCKET 12-T 50 LC
-
2945133029013 SPROCKET 13-T 50 LCSPROCKET 13-T 50 LC
-
300471150010 CIRCLIP DIN0471-15X1CIRCLIP DIN0471-15X1
-
3145133031000 OIL SEAL RING 15X24X5OIL SEAL RING 15X24X5
-
7746030029000 HH NUT 14X1,25X7HH NUT 14X1,25X7
-
7846030078000 LOCKING PLATE D=14MMLOCKING PLATE D=14MM
