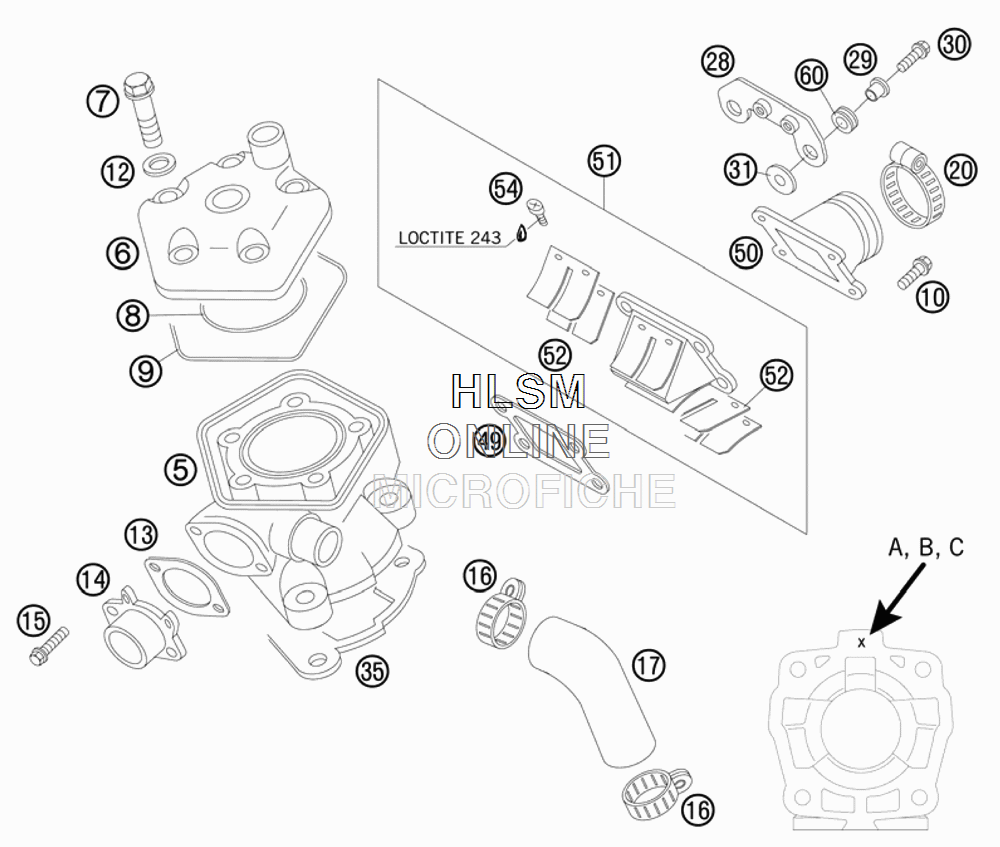

CYLINDER CYLINDER HEAD для Ktm 50 SX - 2008 года выпуска

  • №
    Артикул
    Название
  • 5
    45130005100 A CYLINDER 50 LC "A"
    CYLINDER 50 LC "A"
  • 5
    45130005100 B CYLINDER 50 LC "B"
    CYLINDER 50 LC "B"
  • 5
    45130005100 C CYLINDER 50 LC "C"
    CYLINDER 50 LC "C"
  • 6
    45130006100 CYLINDER HEAD 50 LC
    CYLINDER HEAD 50 LC
  • 7
    46030079000 CYLINDERIGHT HANDEADSCRIGHT HANDHH-M7X33
    CYLINDERIGHT HANDEADSCRIGHT HANDHH-M7X33
  • 8
    46030036000 O-RING 53,7X1,78 VITON
    O-RING 53,7X1,78 VITON
  • 9
    46030037000 O-RING 94,97X1,78
    O-RING 94,97X1,78
  • 10
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 12
    50230032010 CU-SEAL RING 7,3 X 12 X 0,5
    CU-SEAL RING 7,3 X 12 X 0,5
  • 13
    46030046000 EXHAUST GASKET 60/65 CCM
    EXHAUST GASKET 60/65 CCM
  • 14
    45105003100 EXHAUST FLANGE
    EXHAUST FLANGE
  • 15
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 16
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 17
    45135027000 PRE-FORM HOSE CYLEFT HAND-W.COVER
    PRE-FORM HOSE CYLEFT HAND-W.COVER
  • 20
    10001120000 CLAMP 25-40 SGT 4
    CLAMP 25-40 SGT 4
  • 28
    45139028000 BRACKET IGNITI. COIL 50LC
    BRACKET IGNITI. COIL 50LC
  • 29
    45139128000 COLLAR BUSHING 6,3X8X7,5
    COLLAR BUSHING 6,3X8X7,5
  • 30
    0015060303 HH COLLAR SCREW M 6X30
    HH COLLAR SCREW M 6X30
  • 31
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 35
    46030035020 CYLINDER BASE GASKET 0,2 MM
    CYLINDER BASE GASKET 0,2 MM
  • 35
    46030035050 CYLINDER BASE GASKET 0,5 MM
    CYLINDER BASE GASKET 0,5 MM
  • 49
    46030049000 INTAKE VALVE GASKET
    INTAKE VALVE GASKET
  • 50
    45130050000 INLET MANIFOLD 50CCM LC
    INLET MANIFOLD 50CCM LC
  • 51
    46030051144 MEMBRANE HOUSING CPLEFT HAND
    MEMBRANE HOUSING CPLEFT HAND
  • 52
    46030052000 MEMBRANE LOOSE 60/65 CCM
    MEMBRANE LOOSE 60/65 CCM
  • 54
    0985030063 FLAT HEAD SCREW DIN7985-M 3X6
    FLAT HEAD SCREW DIN7985-M 3X6
  • 60
    31008060000 RUBBER SLEEVE OPEN
    RUBBER SLEEVE OPEN
