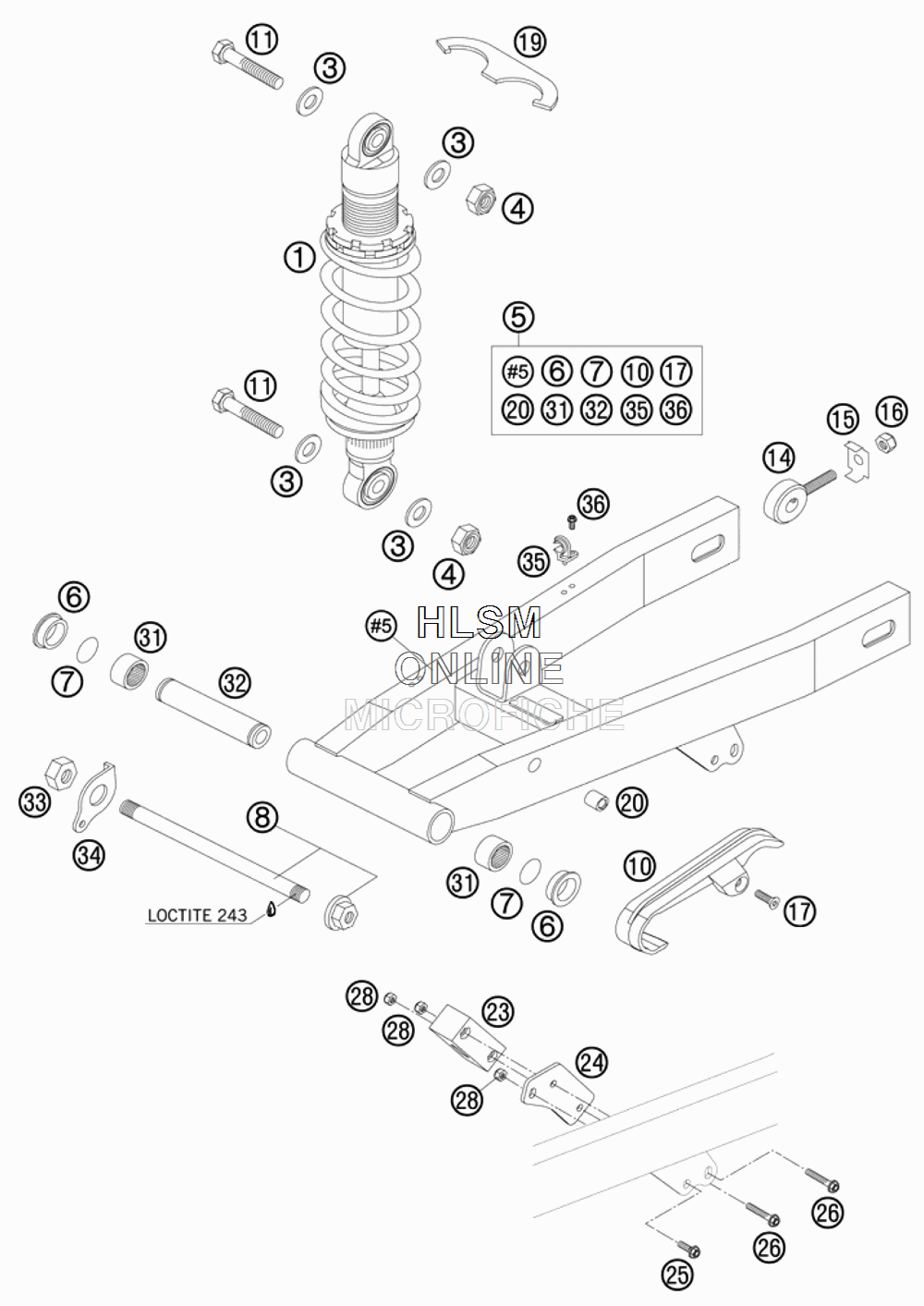

SWIMGARM MONOSHOCK для Ktm 50 SX - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    03189D02 MONOSHOCK 50 SX
    MONOSHOCK 50 SX
  • 3
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 4
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
  • 5
    45104030444 SWINGARM CPLEFT HAND SEN
    SWINGARM CPLEFT HAND SEN
  • 6
    46004030070 SPACER BUSHING 20X26X30X9,7
    SPACER BUSHING 20X26X30X9,7
  • 7
    0770160021 O-RING 16,00X2,00 VITON
    O-RING 16,00X2,00 VITON
  • 8
    45103014144 SWING ARM BOLT CPLEFT HAND
    SWING ARM BOLT CPLEFT HAND
  • 10
    45104066000 CHAIN SLID. GUARD FRO. MINI
    CHAIN SLID. GUARD FRO. MINI
  • 11
    0931100453 HH SCREW DIN0931-M10X45
    HH SCREW DIN0931-M10X45
  • 14
    45010083000 CHAIN ADJUSTER
    CHAIN ADJUSTER
  • 15
    45010083060 SUPPORTING BRACKET
    SUPPORTING BRACKET
  • 16
    0985080003 SELF LOCKING NUT DIN0985-M 8
    SELF LOCKING NUT DIN0985-M 8
  • 17
    0991060203 FLAT H.SCREW DIN7991-M6X20 8.8
    FLAT H.SCREW DIN7991-M6X20 8.8
  • 19
    45004010090 HOOK WRENCH 50 SXR
    HOOK WRENCH 50 SXR
  • 20
    55003139900 BLIND RIVET THREAD M6 STE. 4MM
    BLIND RIVET THREAD M6 STE. 4MM
  • 23
    45004070000 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 24
    45104170000 BRACKET FOR CHAIN GUARD
    BRACKET FOR CHAIN GUARD
  • 25
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
  • 26
    0025050306 HH COLLAR SCREW M5X30
    HH COLLAR SCREW M5X30
  • 28
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 31
    54603097000 NEEDLE BUSH HK 2016
    NEEDLE BUSH HK 2016
  • 32
    45104032000 BEARING SLEEVE
    BEARING SLEEVE
  • 33
    0934120103 HEXAGON NUT DIN0934-M12X1
    HEXAGON NUT DIN0934-M12X1
  • 34
    45113053000 BRACKET FOR SPRING
    BRACKET FOR SPRING
  • 35
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 36
    0025050126 HH COLLAR SCREW M5X12
    HH COLLAR SCREW M5X12
