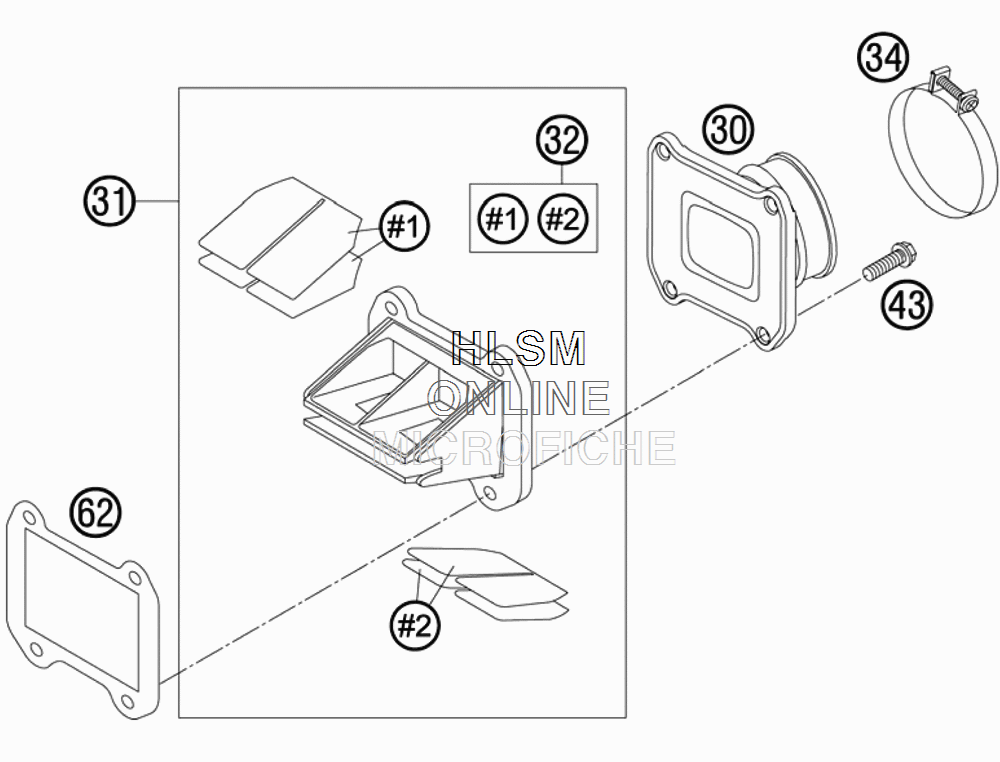

REED VALVE CASE для Ktm 300 XC-W - 2008 года выпуска
-
№АртикулНазвание
-
3054830050000 INTAKE FLANGE V-FORCEINTAKE FLANGE V-FORCE
-
3154830051244 REED VALVE ASSY V-FORCE CPL.REED VALVE ASSY V-FORCE CPL.
-
3254830052100 REED VALVE SET V-FORCEREED VALVE SET V-FORCE
-
3454330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
430015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
6254830062100 GASKET REED VALVE CASEGASKET REED VALVE CASE
