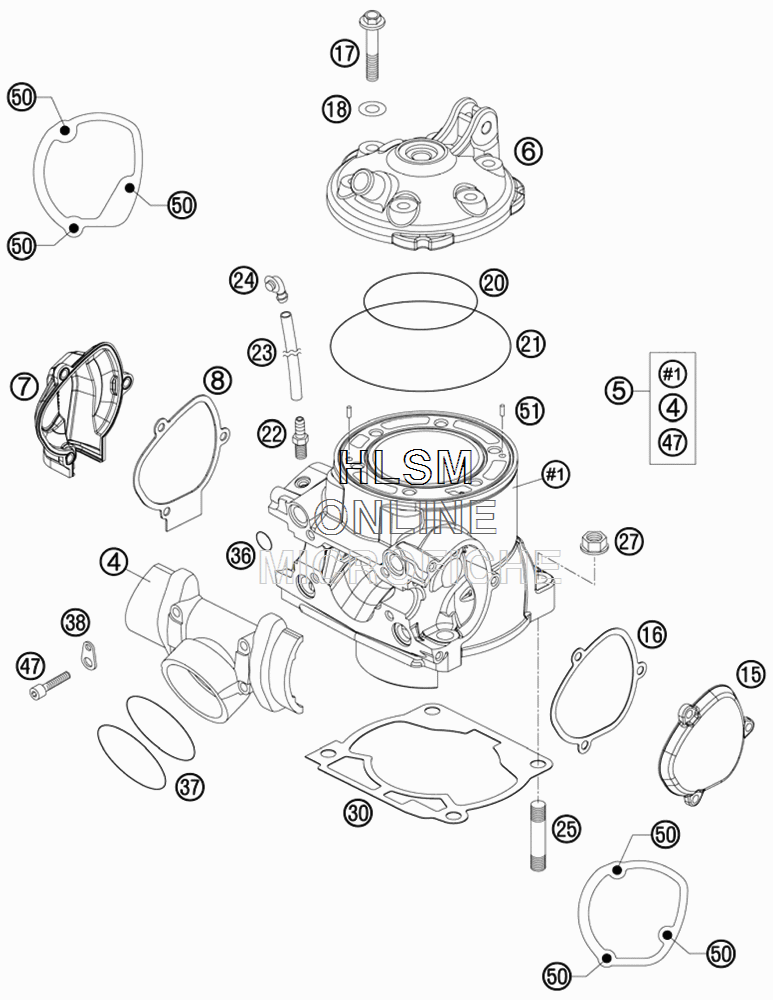

CYLINDER CYLINDER HEAD для Ktm 300 XC-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 4*
    54837001200 INTERMEDIATE FLANGE
    INTERMEDIATE FLANGE
  • 5*
    54830305144 CYLINDER 300 W. FLANGE
    CYLINDER 300 W. FLANGE
  • 6*
    54830306100 CYLINDER HEAD "3003"
    CYLINDER HEAD "3003"
  • 7*
    54837007000 CONTROL COVER R/S
    CONTROL COVER R/S
  • 8*
    54837008000 GASKET FOR CONTROL COVER R/S
    GASKET FOR CONTROL COVER R/S
  • 15*
    54837005000 CONTROL COVER L/S
    CONTROL COVER L/S
  • 16*
    54837006000 GASKET FOR CONTROL COVER L/S
    GASKET FOR CONTROL COVER L/S
  • 17
    54830079000 COLLAR SCREW M 8X35 WS=13
    COLLAR SCREW M 8X35 WS=13
  • 18
    56530080000 CU-SEAL RING 8 X 16 X 1
    CU-SEAL RING 8 X 16 X 1
  • 20*
    0770078020 O-RING 78,00X2,00 VIT. BLACK
    O-RING 78,00X2,00 VIT. BLACK
  • 21*
    0770105020 O-RING 105,00X2,00
    O-RING 105,00X2,00
  • 22
    58336020090 VACUUM CONNECTION M 6X1
    VACUUM CONNECTION M 6X1
  • 23
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 24
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 25
    0835100351 STUD DIN0835-M10X35
    STUD DIN0835-M10X35
  • 27
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 30
    54830030002 GASKET CYLINDER BASE 0,2MM
    GASKET CYLINDER BASE 0,2MM
  • 30
    54830030004 GASKET CYLINDER BASE 0,4MM
    GASKET CYLINDER BASE 0,4MM
  • 30
    54830030005 GASKET CYLINDER BASE 0,5MM
    GASKET CYLINDER BASE 0,5MM
  • 30
    54830030075 GASKET CYLINDER BASE 0,75MM
    GASKET CYLINDER BASE 0,75MM
  • 36
    0770116241 O-RING 11,3 X2,4 SILICON
    O-RING 11,3 X2,4 SILICON
  • 37
    0770440030 O-RING 44,00X3,00 VITON
    O-RING 44,00X3,00 VITON
  • 38
    51005074000 RETAINING PLATE
    RETAINING PLATE
  • 47
    0912060303 AH SCREW DIN0912-M 6X30
    AH SCREW DIN0912-M 6X30
  • 50*
    58605083014 SCREW M5X14 TORX 25
    SCREW M5X14 TORX 25
  • 51*
    0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8
    NEEDLE ROL.DIN5402 NRB 4X9,8
