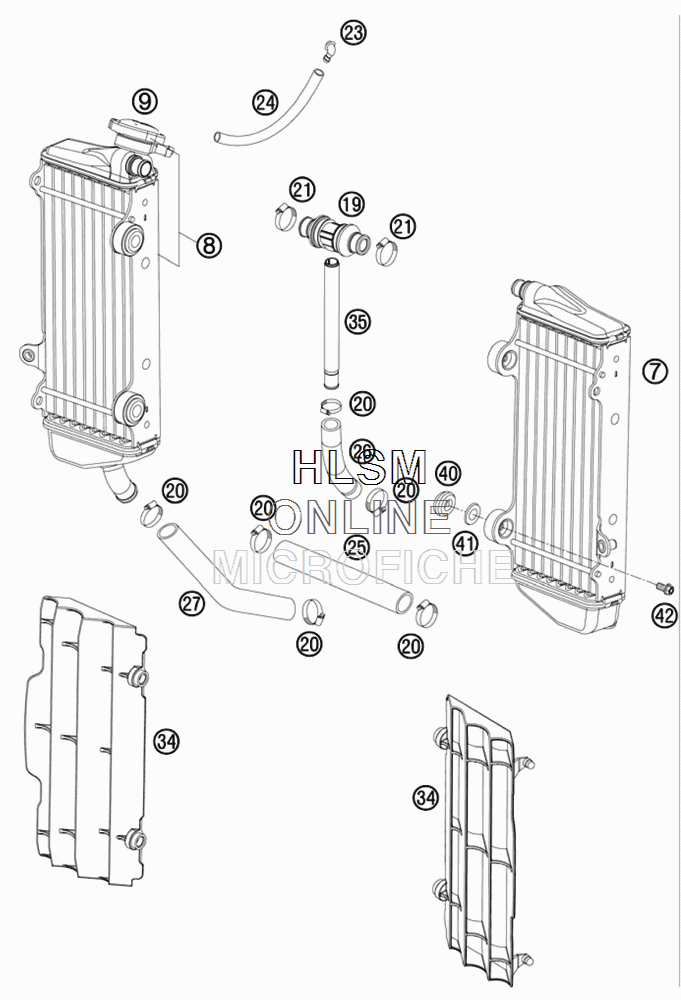

COOLING SYSTEM для Ktm 300 XC-W - 2008 года выпуска

  • №
    Артикул
    Название
  • 7*
    54835007100 RADIATOR L/S 2 STROKE
    RADIATOR L/S 2 STROKE
  • 8*
    54835008100 RADIATOR R/S 2 STROKE
    RADIATOR R/S 2 STROKE
  • 9
    58035016000 RADIATOR CAP SMALL 20,3 PSI
    RADIATOR CAP SMALL 20,3 PSI
  • 19*
    77335026000 T-CONNECTOR CPL.
    T-CONNECTOR CPL.
  • 20
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 21*
    42013037200 HOSE CLAMP GEMI 12/22
    HOSE CLAMP GEMI 12/22
  • 23
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 24
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 25
    56535025001 RADIATOR HOSE 18X25 PER METRE
    RADIATOR HOSE 18X25 PER METRE
  • 26*
    54835125000 PREFORMED HOSE ENG.-RAD.
    PREFORMED HOSE ENG.-RAD.
  • 27
    50335027000 RADIATOR HOSE 18X25
    RADIATOR HOSE 18X25
  • 34*
    7733503400030 RAD. PR. L/S+R/S BLACK
    RAD. PR. L/S+R/S BLACK
  • 35*
    54835072000 HOSE CONNECTOR 2 STROKE
    HOSE CONNECTOR 2 STROKE
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41*
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 42*
    0023060123 COLLAR SCREW M6X12 TX
    COLLAR SCREW M6X12 TX
