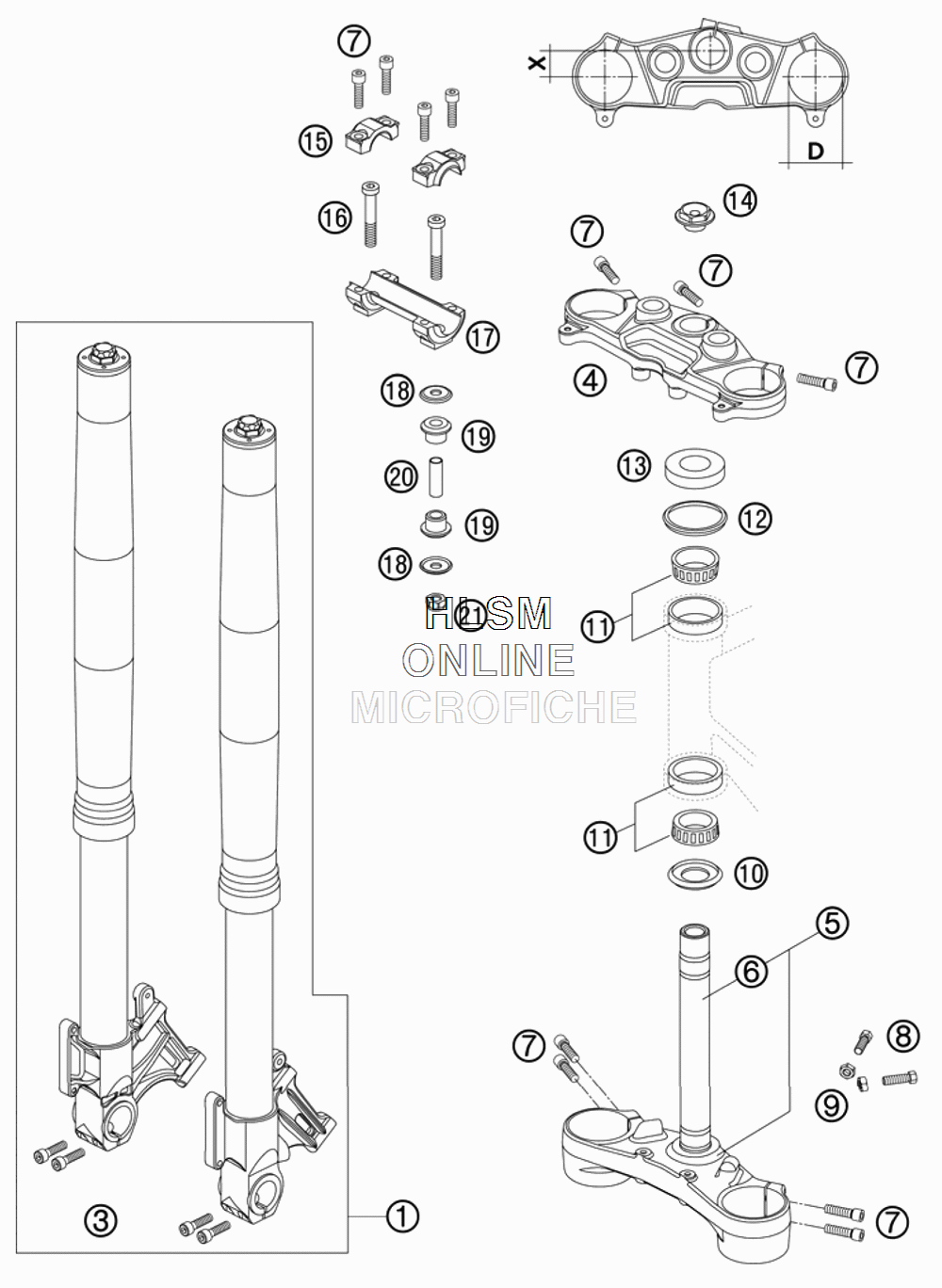

TELESCOPIC FORK для Ktm 990 Superduke Orange - 2007 года выпуска

  • №
    Артикул
    Название
  • 1*
    14187C13 FORK 4860 ROMA 990 DUKE
    FORK 4860 ROMA 990 DUKE
  • 3
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 4*
    6110103402901S TOP TRIPLE CLAMP 07
    TOP TRIPLE CLAMP 07
  • 5*
    6110103202901S BOT.TRIPLE CLAMP CPL.
    BOT.TRIPLE CLAMP CPL.
  • 6
    60001033000 FORK TUBE LC8 ADV
    FORK TUBE LC8 ADV
  • 7
    0012080303 AH SCREW DIN6912-M 8X30
    AH SCREW DIN6912-M 8X30
  • 8
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 9
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 10
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 11
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 12
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 13
    61001086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 14
    54801036200 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 15*
    5900103830001S HANDLEBAR CLAMP 28MM
    HANDLEBAR CLAMP 28MM
  • 16
    0012100603 AH SCREW DIN6912-M10X60
    AH SCREW DIN6912-M10X60
  • 17*
    5900103920001S HANDLEBAR SUPPORT 28MM
    HANDLEBAR SUPPORT 28MM
  • 18
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 19
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 20
    61001041000 SPACER TUBE 10,2X12X38
    SPACER TUBE 10,2X12X38
  • 21
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
