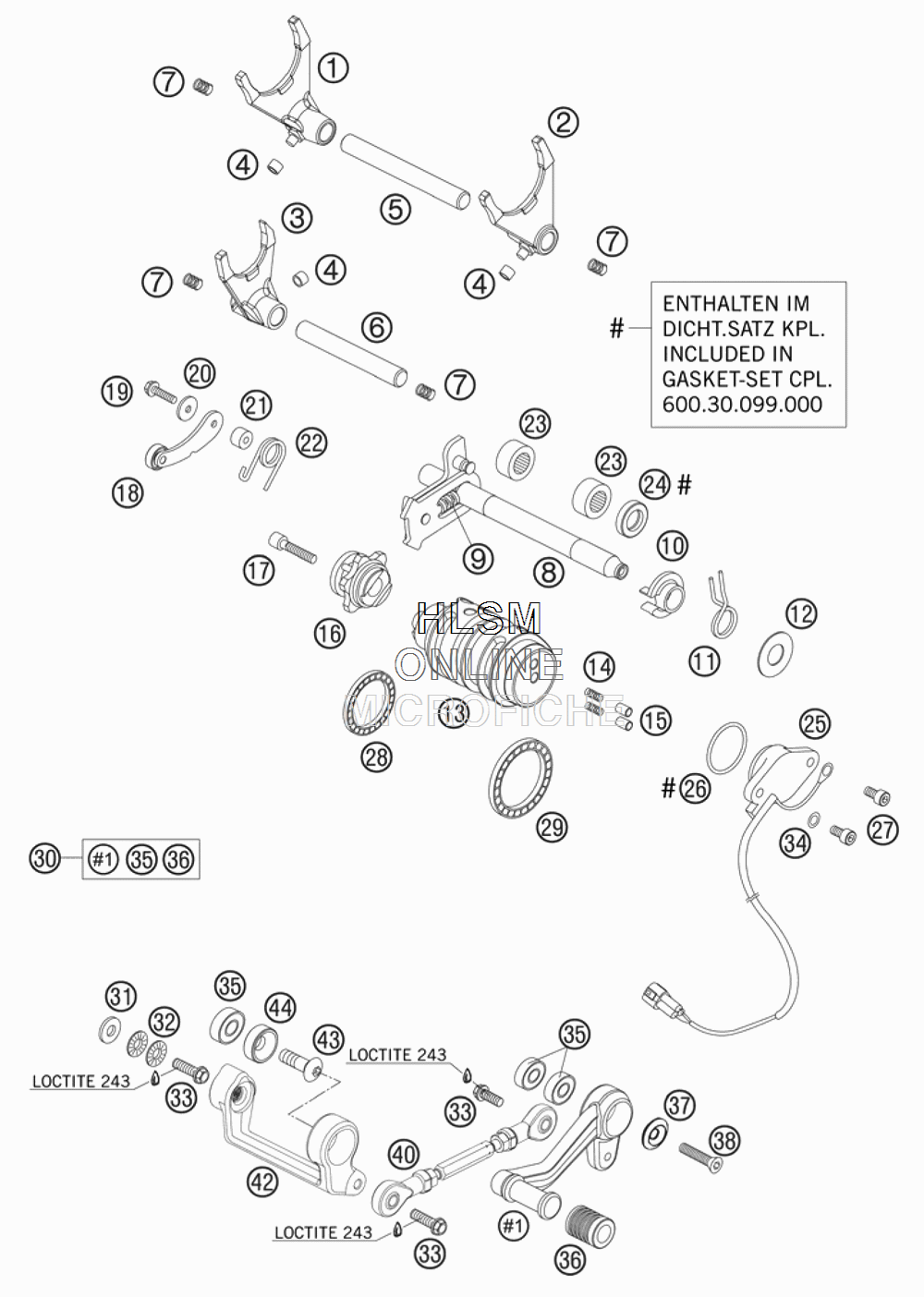

SHIFTING MECHANISM для Ktm 990 Superduke Orange - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    60034001000 SHIFT FORK 1-4 GEAR LC8
    SHIFT FORK 1-4 GEAR LC8
  • 2
    60034002000 SHIFT FORK 2-3 GEAR LC8
    SHIFT FORK 2-3 GEAR LC8
  • 3
    60034003000 SHIFT FORK 5-6 GEAR LC8
    SHIFT FORK 5-6 GEAR LC8
  • 4
    50334018100 SHIFTING ROLLER 6X8X5,2
    SHIFTING ROLLER 6X8X5,2
  • 5
    59034020000 SHIFT RAIL 11,8X105MM
    SHIFT RAIL 11,8X105MM
  • 6
    59034019000 SHIFT RAIL 11,8X89MM
    SHIFT RAIL 11,8X89MM
  • 7
    58038023200 PRESSURE SPRING 0,9MM
    PRESSURE SPRING 0,9MM
  • 8
    60034005044 SHIFT SHAFT CPL.
    SHIFT SHAFT CPL.
  • 9
    56534013100 TENSIONING SPRING 0,8MM
    TENSIONING SPRING 0,8MM
  • 10
    54634020000 SPRING GUIDE
    SPRING GUIDE
  • 11
    54634014100 RETURN SPRING 2,2MM '95
    RETURN SPRING 2,2MM '95
  • 12
    54634050000 STOP DISK 14X30X1
    STOP DISK 14X30X1
  • 13
    60034012300 SHIFT ROLLER CPL.
    SHIFT ROLLER CPL.
  • 14
    60034014000 CONTACT SPRING
    CONTACT SPRING
  • 15
    60034037000 CONTACT BOLT
    CONTACT BOLT
  • 16
    60034015044 SHIFT ARRESTING CPL.
    SHIFT ARRESTING CPL.
  • 17
    0984060302 AH SCREW DIN6912 M 6X30
    AH SCREW DIN6912 M 6X30
  • 18
    60034024044 ARRESTING LEVER CPL.
    ARRESTING LEVER CPL.
  • 19
    0015050203 HH COLLAR SCREW M 5X20
    HH COLLAR SCREW M 5X20
  • 20
    0349000050 WASHER DIN7349-5X15X2
    WASHER DIN7349-5X15X2
  • 21
    54634052300 SLEEVE FOR LOCKING LEVER
    SLEEVE FOR LOCKING LEVER
  • 22
    60034023000 ARRESTING LEVER SPRING
    ARRESTING LEVER SPRING
  • 23
    54632095000 NEEDLE BEAR.HK 1412 14X20X12
    NEEDLE BEAR.HK 1412 14X20X12
  • 24
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 25
    60011023100 GEAR-POSITION SENSOR
    GEAR-POSITION SENSOR
  • 26
    0770275025 O-RING 27,5X2,5 NBR
    O-RING 27,5X2,5 NBR
  • 27
    0912050123 AH SCREW DIN0912-M 5X12
    AH SCREW DIN0912-M 5X12
  • 28
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 29
    0625068080 GROOVED BALL BEARING 6808 JRC3
    GROOVED BALL BEARING 6808 JRC3
  • 30*
    6103403104401S SHIFT LEVER CPL.
    SHIFT LEVER CPL.
  • 31
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 32
    50233041000 PAIR OF WASHERS M 6 NORDLOCK
    PAIR OF WASHERS M 6 NORDLOCK
  • 33
    59009062019 SPECIAL SCREW M6X19 WS=8 10.9
    SPECIAL SCREW M6X19 WS=8 10.9
  • 34
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 35
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 36
    61034035000 RUBBER FOR SHIFT LEVER
    RUBBER FOR SHIFT LEVER
  • 37
    58303061100 SPECIAL WASHER ALU 8X24 MM ELO
    SPECIAL WASHER ALU 8X24 MM ELO
  • 38
    61013059000 FLAT HEAD SCREW M8X32 SL
    FLAT HEAD SCREW M8X32 SL
  • 40
    61034036044 SHIFT ROD CPL.
    SHIFT ROD CPL.
  • 42*
    6103403000001S RELAY LEVER SELECTOR SHAFT
    RELAY LEVER SELECTOR SHAFT
  • 43
    54510052100 SPROCKET SCREW-AH M8X26 WS=6
    SPROCKET SCREW-AH M8X26 WS=6
  • 44
    61034030050 WASHER COUNT. 8,5X21X7,804
    WASHER COUNT. 8,5X21X7,804
