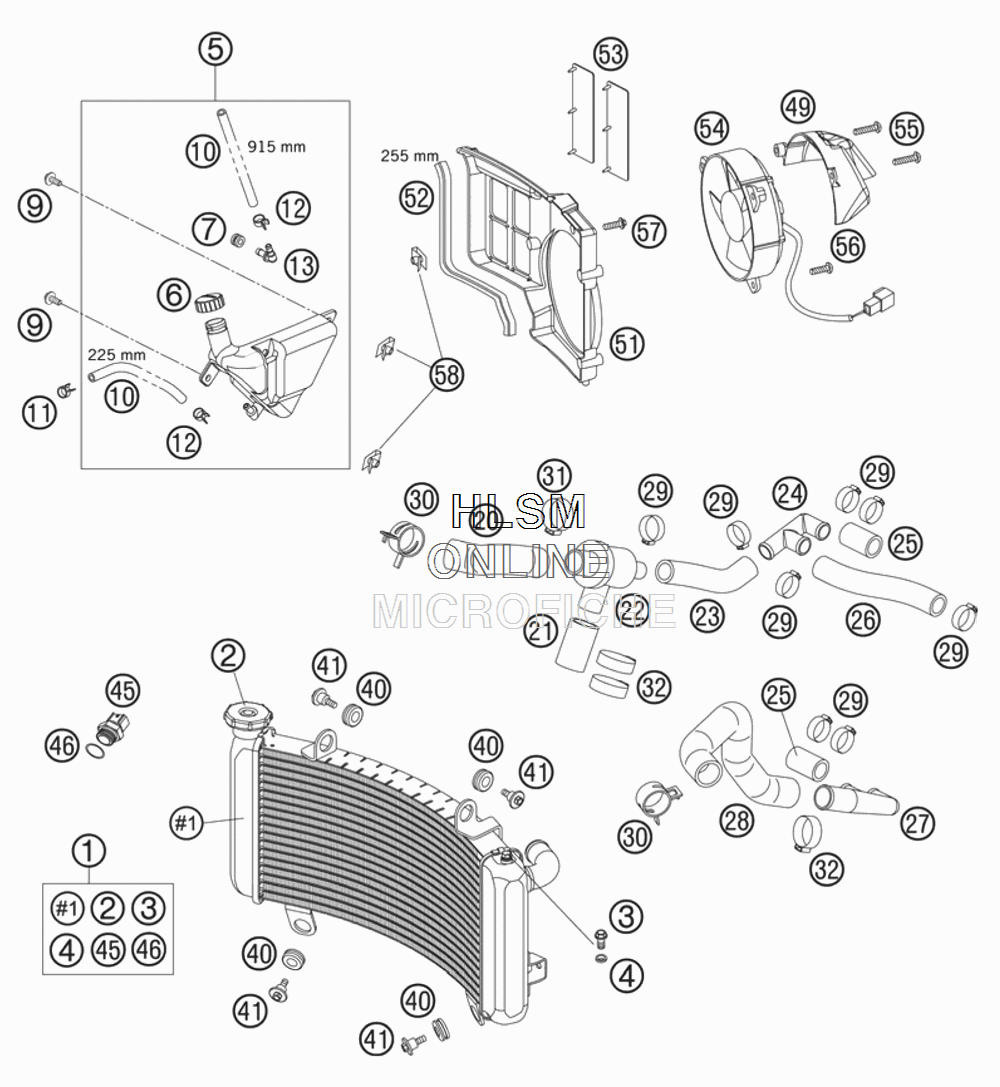

COOLING SYSTEM для Ktm 990 Superduke Orange - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    61035010000 RADIATOR 990 DUKE
    RADIATOR 990 DUKE
  • 2
    61035016000 RADIATOR CAP 990 DUKE
    RADIATOR CAP 990 DUKE
  • 3
    0015060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
  • 4
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 5
    61035065000 EXPANSION TANK CPL.
    EXPANSION TANK CPL.
  • 6
    60035066000 PLUG F. EXPANSION TANK
    PLUG F. EXPANSION TANK
  • 7
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 9
    0014060153 HH COLLAR SCREW M 6X15
    HH COLLAR SCREW M 6X15
  • 10
    60035067001 HOSE 6X10 EPDM
    HOSE 6X10 EPDM
  • 11
    50231005000 HOSE CLAMP YDNAC 10119 11MM
    HOSE CLAMP YDNAC 10119 11MM
  • 12
    58007117000 YDNAC-CLAMP 10107 10MM
    YDNAC-CLAMP 10107 10MM
  • 13
    60035068000 ANGLE CONNECTION EXPANS. TANK
    ANGLE CONNECTION EXPANS. TANK
  • 20
    60035031000 RADIATOR HOSE THERM./RAD.
    RADIATOR HOSE THERM./RAD.
  • 21
    60035030000 RADIATOR HOSE THERM./PUMP
    RADIATOR HOSE THERM./PUMP
  • 22
    60035017000 THERMOSTAT 75° CPL. W. CASE
    THERMOSTAT 75° CPL. W. CASE
  • 23
    60035025000 RADIATOR HOSE THERM./DISTR.
    RADIATOR HOSE THERM./DISTR.
  • 24
    60035019000 DISTRIBUTOR R/S 18/18/18MM
    DISTRIBUTOR R/S 18/18/18MM
  • 25
    60035026000 RADIATOR HOSE CYL./DISTR.
    RADIATOR HOSE CYL./DISTR.
  • 26
    60035027000 RADIATOR HOSE DISTR./DISTR.
    RADIATOR HOSE DISTR./DISTR.
  • 27
    60035028000 DISTRIBUTOR L/S 18/18/25MM
    DISTRIBUTOR L/S 18/18/25MM
  • 28
    60035024000 RADIATOR HOSE RADIATOR L/S
    RADIATOR HOSE RADIATOR L/S
  • 29
    00050271708 VARIABLE ONE-EAR CLAMP 27,1MM
    VARIABLE ONE-EAR CLAMP 27,1MM
  • 30
    00049320121 CLAMP STD DN32
    CLAMP STD DN32
  • 31
    00050346706 VARIABLE ONE-EAR CLAMP 34,6MM
    VARIABLE ONE-EAR CLAMP 34,6MM
  • 32
    00050331706 VARIABLE ONE-EAR CLAMP 33,1MM
    VARIABLE ONE-EAR CLAMP 33,1MM
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41
    60035001000 SCREW RADIATOR BRACKET M6
    SCREW RADIATOR BRACKET M6
  • 45
    60035045000 THERMOSWITCH LC8 102DG
    THERMOSWITCH LC8 102DG
  • 46
    0770017015 O-RING 17X1,5 NB75
    O-RING 17X1,5 NB75
  • 49
    61035044050 FAN CAP
    FAN CAP
  • 51
    60035044000 FAN COWL L/S
    FAN COWL L/S
  • 52
    58312085100 EDGE PROTECTOR PER METER
    EDGE PROTECTOR PER METER
  • 53
    58435044050 FAN FLAP RUBBER LC4
    FAN FLAP RUBBER LC4
  • 54
    60035041000 FAN L/S
    FAN L/S
  • 55
    0017060303 SPECIAL SCREW T60 6X30
    SPECIAL SCREW T60 6X30
  • 56
    0017060203 EJOT PT SCREW K60X20
    EJOT PT SCREW K60X20
  • 57
    0014060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 58
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
