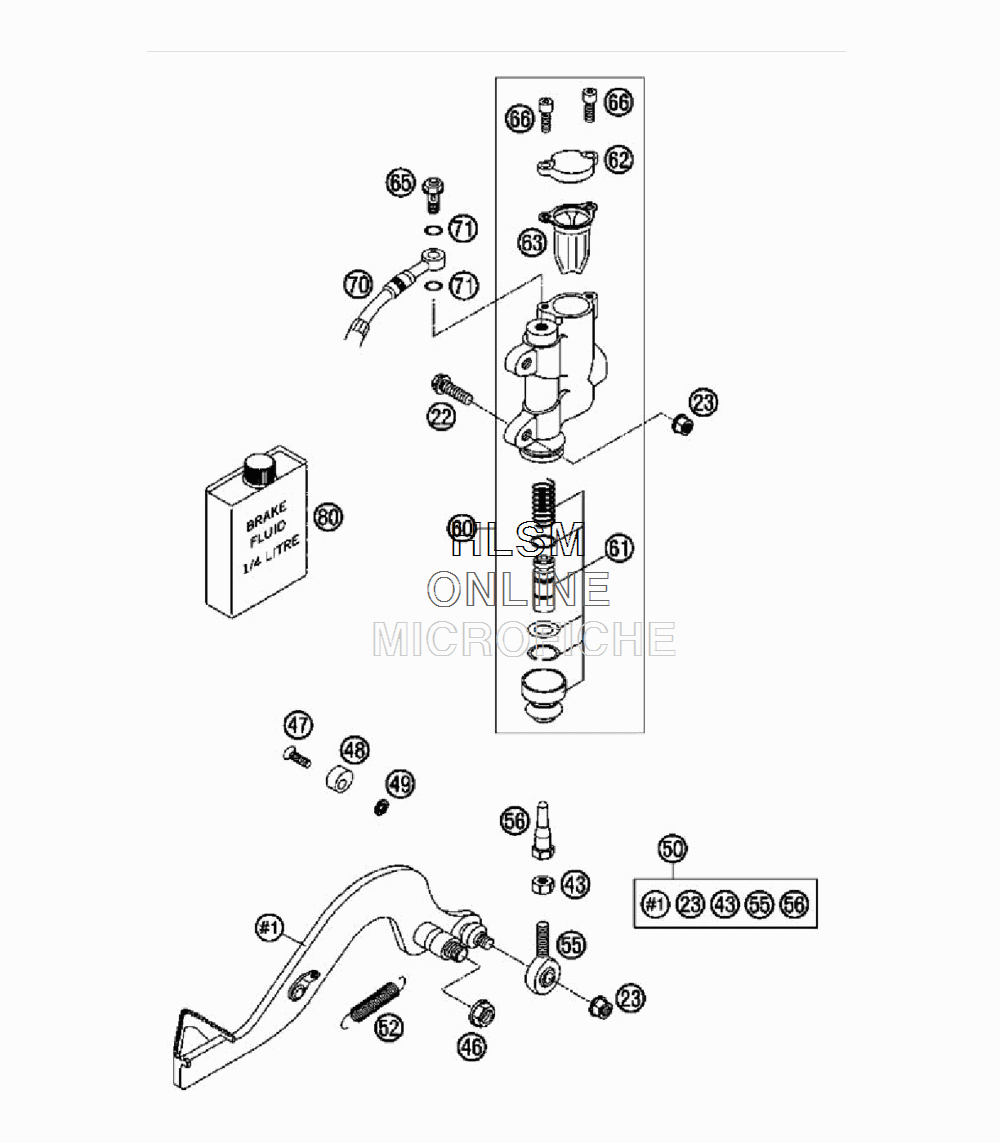

REAR BRAKE CONTROL для Ktm 50 SX - 2007 года выпуска

  • №
    Артикул
    Название
  • 22
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 23
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 43
    0934060003 HEXAGON NUT DIN0934-M 6
    HEXAGON NUT DIN0934-M 6
  • 46
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 47
    0991060203 FLAT H.SCREW DIN7991-M6X20 8.8
    FLAT H.SCREW DIN7991-M6X20 8.8
  • 48
    58303063000 BRAKE LEVER STOP
    BRAKE LEVER STOP
  • 49
    0797060003 TOOTH LOCK WASH. DIN6797-A 6,4
    TOOTH LOCK WASH. DIN6797-A 6,4
  • 50
    45113050144 REAR BRAKELEVER CPL.
    REAR BRAKELEVER CPL.
  • 52
    54603062000 RETURN SPRING FOR BRAKE LEVER
    RETURN SPRING FOR BRAKE LEVER
  • 55
    54813055000 SWIVEL HEAD KA6
    SWIVEL HEAD KA6
  • 56
    47013056000 PRESSURE ROD
    PRESSURE ROD
  • 60
    46113060000 REAR BRAKE CYL.
    REAR BRAKE CYL.
  • 61
    47013061000 REP. SET PISTON REAR D=11
    REP. SET PISTON REAR D=11
  • 62
    47013062000 CYLINDER COVER REAR
    CYLINDER COVER REAR
  • 63
    47013063000 GASKET CYLINDER COVER REAR
    GASKET CYLINDER COVER REAR
  • 65
    46113325000 HOLLOW SCREW M6
    HOLLOW SCREW M6
  • 66
    0912040103 AH.SCREW DIN0912-M 4X10
    AH.SCREW DIN0912-M 4X10
  • 70
    45113170000 BRAKE HOSE REAR
    BRAKE HOSE REAR
  • 71
    0770060019 O-RING 6,00X1,00
    O-RING 6,00X1,00
  • 80
    306054 BRAKE FLUID DOT 4.0
    BRAKE FLUID DOT 4.0
