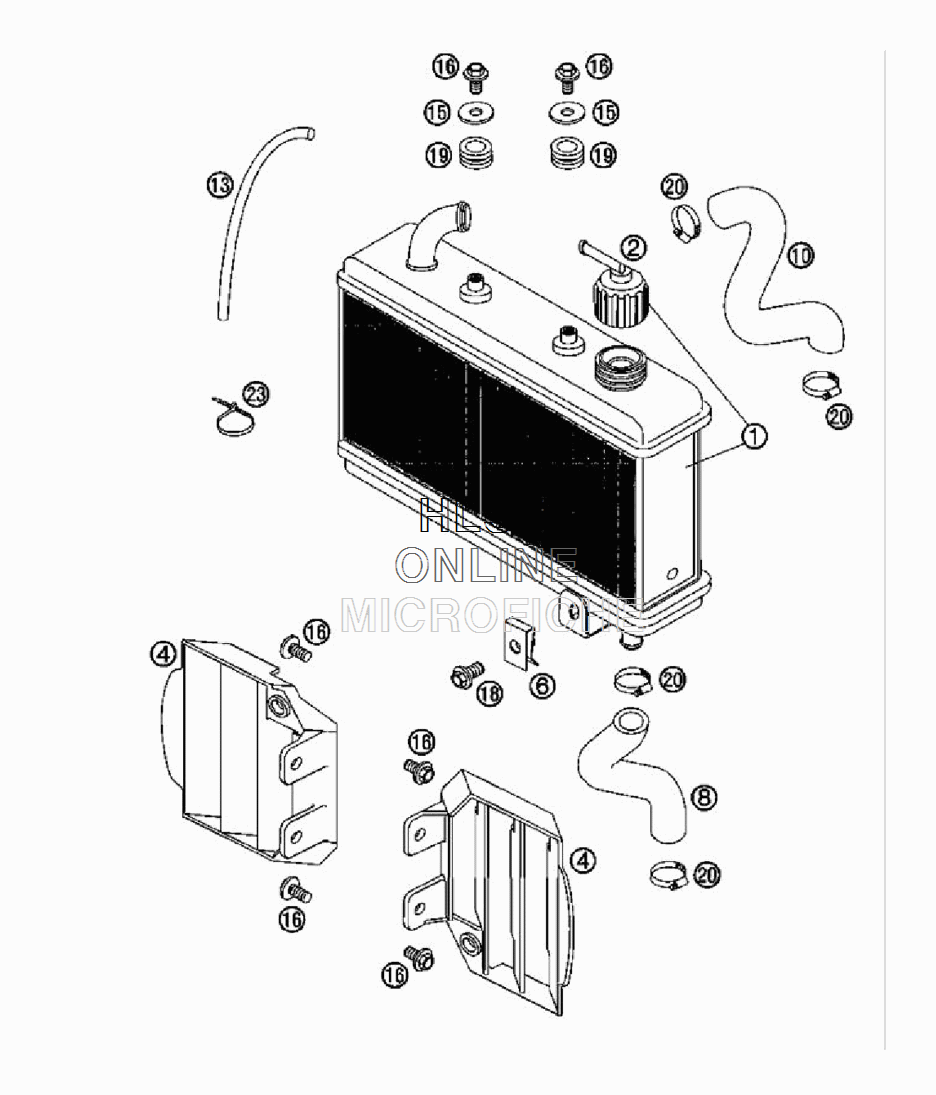

COOLING SYSTEM для Ktm 50 SX - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    45135007000 RADIATOR
    RADIATOR
  • 2
    45135009000 RADIATOR CAP
    RADIATOR CAP
  • 4
    4513500700130 RADIATOR PROT. SX BLACK
    RADIATOR PROT. SX BLACK
  • 6
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 8
    45135025000 RADIATOR HOSE
    RADIATOR HOSE
  • 10
    45135026000 RADIATOR HOSE
    RADIATOR HOSE
  • 13
    55007016001 PVC-HOSE 7X10 PER METER
    PVC-HOSE 7X10 PER METER
  • 15
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 16
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 18
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 19
    58414019000 RUBBER GROMMET 11 X 19 X 9
    RUBBER GROMMET 11 X 19 X 9
  • 20
    42013037200 HOSE CLAMP GEMI 12/22
    HOSE CLAMP GEMI 12/22
  • 23
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 23
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
