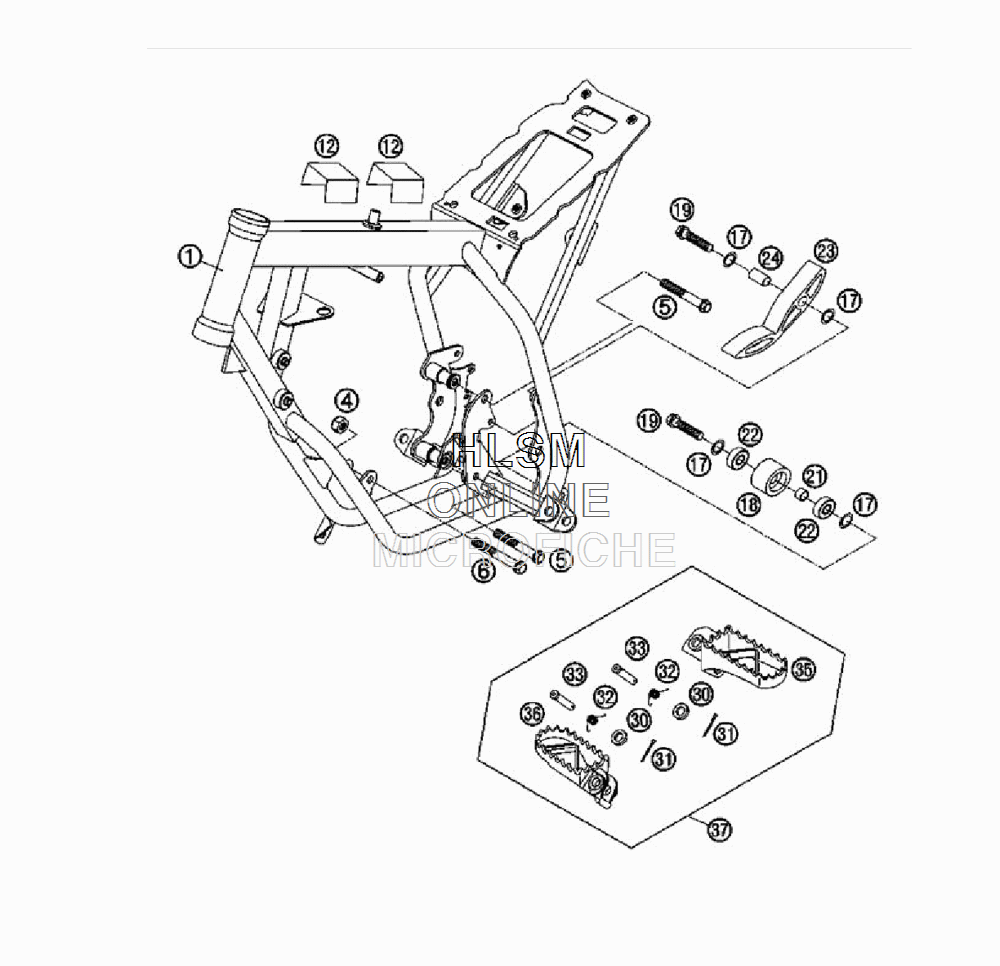

FRAME для Ktm 50 SX - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    4510300160030 FRAME
    FRAME
  • 4
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 5
    0015080603 HH COLLAR SCREW M 8X60 WS=10
    HH COLLAR SCREW M 8X60 WS=10
  • 6
    0015080653 HH COLLAR SCREW M 8X65 WS=10
    HH COLLAR SCREW M 8X65 WS=10
  • 12
    58711054050 METAMOLL FOR BATTERY BRACKET
    METAMOLL FOR BATTERY BRACKET
  • 17
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 18
    50203053000 CHAIN ROLL D=30MM
    CHAIN ROLL D=30MM
  • 19
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 21
    74003021000 BUSHING 8.2 X 12 X 6
    BUSHING 8.2 X 12 X 6
  • 22
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 23
    51103053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 24
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 30
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 31
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 32
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 33
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 35
    5460304000090 FOOT REST L/S SILVER
    FOOT REST L/S SILVER
  • 36
    5460314000090 FOOT REST R/S SILVER
    FOOT REST R/S SILVER
  • 37
    4510304013390A1 FOOTREST L.+R. CPL.
    FOOTREST L.+R. CPL.
