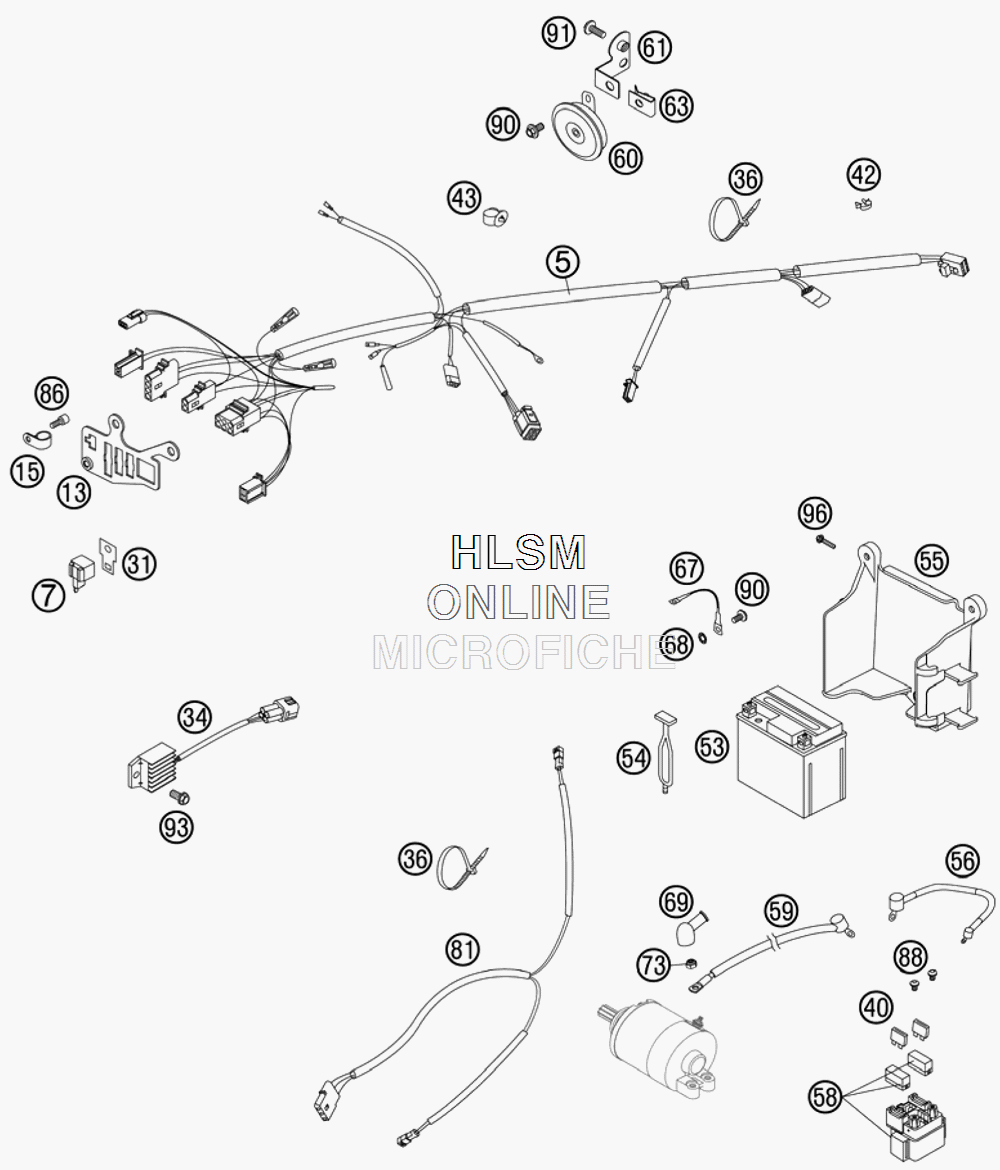

WIRING HARNESS для Ktm 450 EXC - 2007 года выпуска
-
№АртикулНазвание
-
5*59411075244 WIRING HARNESS EXC-S USAWIRING HARNESS EXC-S USA
-
744611207200 FLASHER UNITFLASHER UNIT
-
1354811083100 SUPPORT BRACKET EXCSUPPORT BRACKET EXC
-
1557013070100 PVC-CLAMP 7,9 MM HEYCO 3355PVC-CLAMP 7,9 MM HEYCO 3355
-
3158211031100 BRACKET FOR FLASHER RELAISEBRACKET FOR FLASHER RELAISE
-
3480011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
3644011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
3644011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
4058011109110 FUSE 10 AFUSE 10 A
-
4257013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
-
4257013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
4358111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
5358511053000 BATTERY 12V 4(5)AH TX5L-BSBATTERY 12V 4(5)AH TX5L-BS
-
5450303018000 RUBBER L=145MMRUBBER L=145MM
-
5559011055100 BATTERY CARRIER PLAST.BLACKBATTERY CARRIER PLAST.BLACK
-
5658711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5958411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
6050311060000 DC HORN 12V K80/L LEBDC HORN 12V K80/L LEB
-
6159011061000 BRACKETBRACKET
-
6354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
6758411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
6858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
6958440099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
730985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
8159011081100 FLASH. WIRINGHARNESS REARFLASH. WIRINGHARNESS REAR
-
860912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
880902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
900014060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
910014060153 HH COLLAR SCREW M 6X15HH COLLAR SCREW M 6X15
-
930015060123 HH COLLAR SCREW M 6X12HH COLLAR SCREW M 6X12
-
960017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
