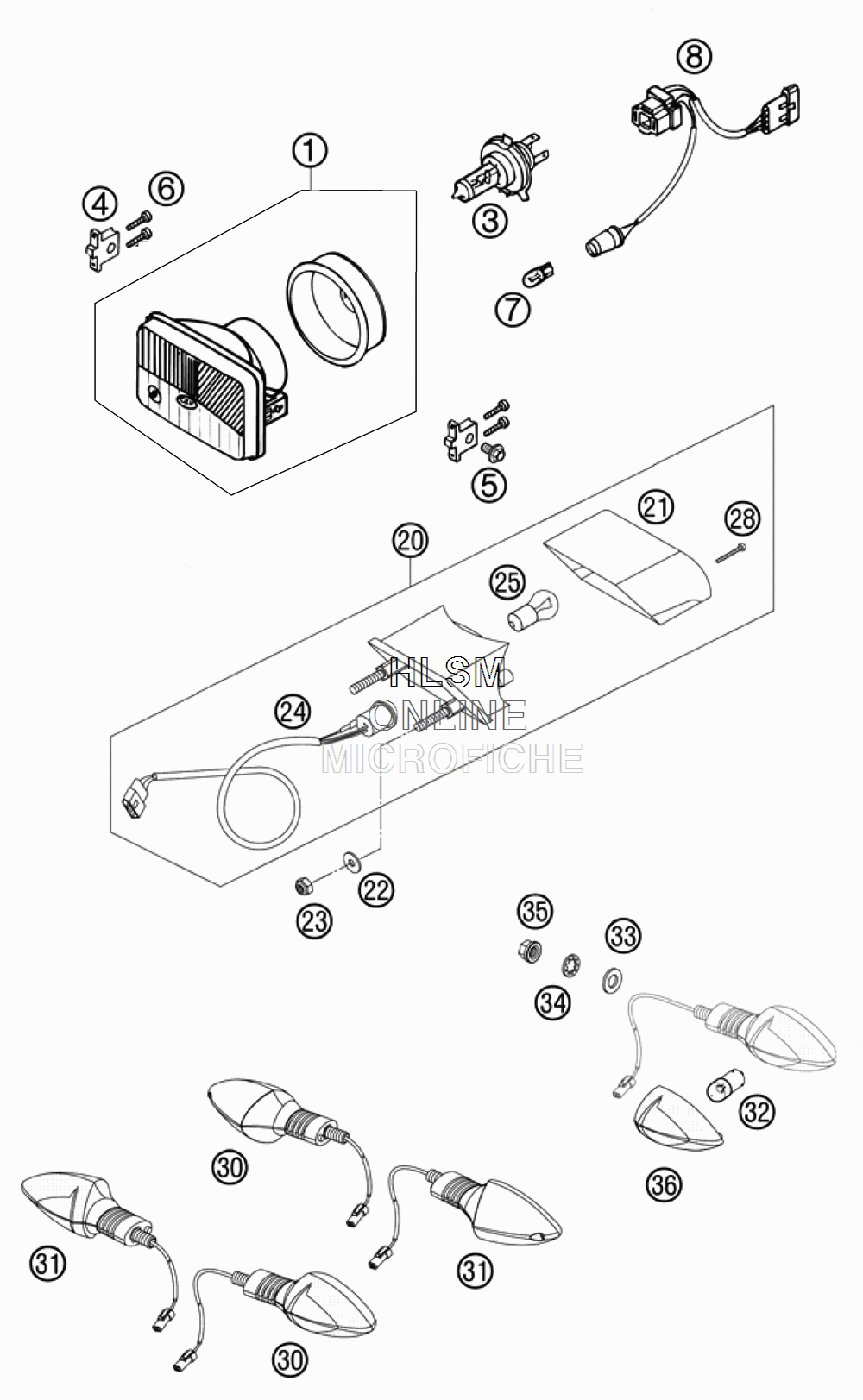

LIGHTING SYSTEM для Ktm 450 EXC - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    50211510000 HEADLIGHT CPL. CEV 394
    HEADLIGHT CPL. CEV 394
  • 3
    57111038000 BULB H4 12V 60/55W (P43T)
    BULB H4 12V 60/55W (P43T)
  • 4
    50211510050 HEADLIGHT BRACKET
    HEADLIGHT BRACKET
  • 5
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 6
    0981350193 SHEET MET.SCR.DIN7981 3,5X19
    SHEET MET.SCR.DIN7981 3,5X19
  • 7
    49011435100 BULB 12V 5W (W2,1X9,5D) PHIL.
    BULB 12V 5W (W2,1X9,5D) PHIL.
  • 8
    59411079000 CABLE FOR HEAD LIGHT EXC-S
    CABLE FOR HEAD LIGHT EXC-S
  • 20
    50314040200 REAR LIGHT CPL. EXC 07
    REAR LIGHT CPL. EXC 07
  • 21
    50314041100 REAR LIGHT LENS
    REAR LIGHT LENS
  • 22
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 23
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 24
    50311076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 25
    58414042000 BULB 12V 21/5W (BAY15S)REINFO.
    BULB 12V 21/5W (BAY15S)REINFO.
  • 28
    0981350323 SHEET MET. SCR. DIN7981 3,5X32
    SHEET MET. SCR. DIN7981 3,5X32
  • 30
    60114025000 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 31
    60114026000 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 32
    60114027000 BULB 12V ORANGE (RY10W)
    BULB 12V ORANGE (RY10W)
  • 33
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 34
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 35
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 36
    60114028000 FLASHER LENS L/S R/S TRANSP.
    FLASHER LENS L/S R/S TRANSP.
