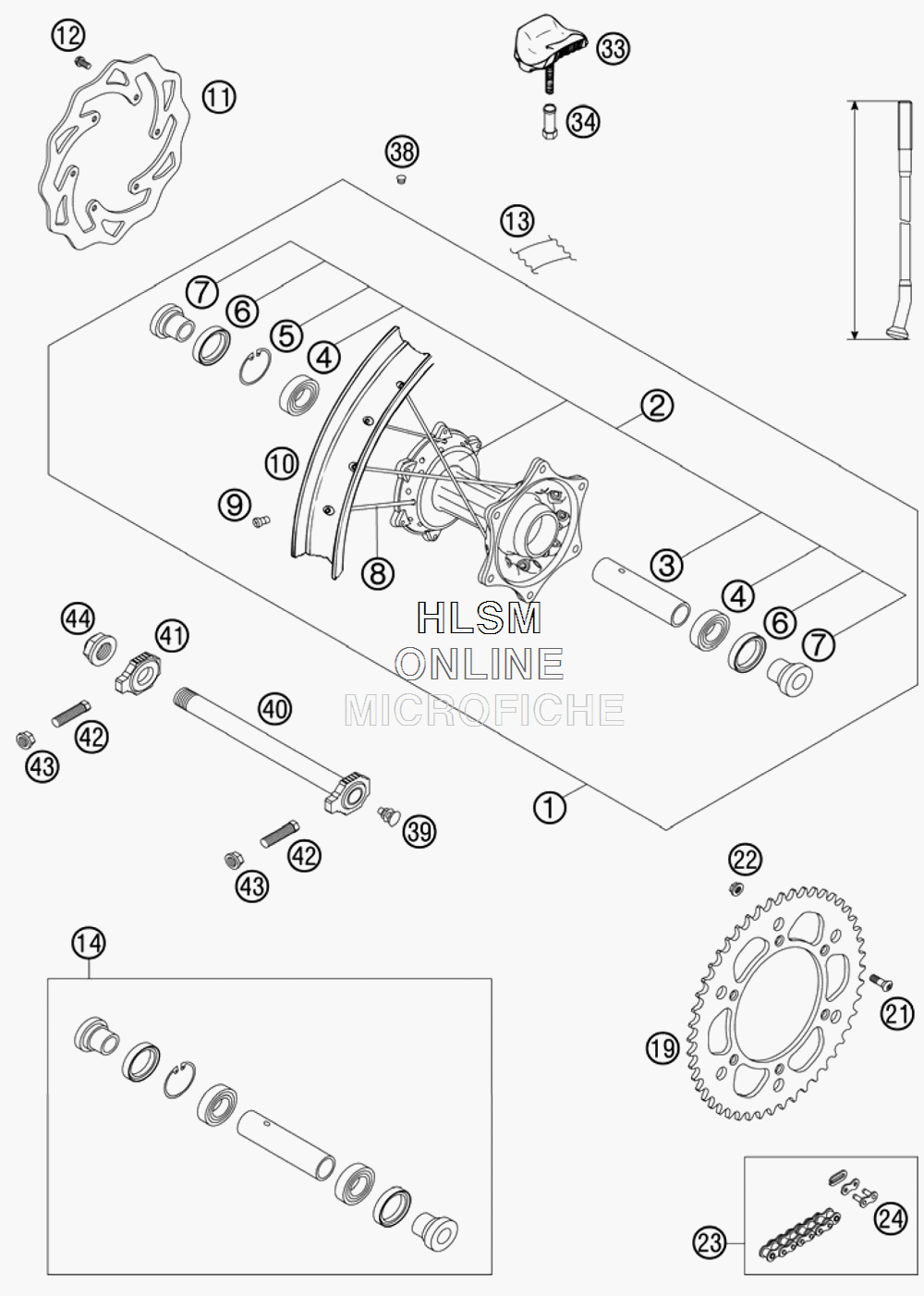

REAR WHEEL для Ktm 450 EXC - 2007 года выпуска
-
№АртикулНазвание
-
1*5481010104430 R. WHEEL CPL.2,15X18" EXCELR. WHEEL CPL.2,15X18" EXCEL
-
25481001004491 REAR WHEEL HUB CPL. SX, EXCREAR WHEEL HUB CPL. SX, EXC
-
359010011000 BUSHING SPACER TUBE 121,5MMBUSHING SPACER TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
754610016000 BUSHING FOR HUBBUSHING FOR HUB
-
850310072195 SPOKE M5X195-10G 18" DDESPOKE M5X195-10G 18" DDE
-
958309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
10*5481007000030 REAR RIM 2,15X18" EXCEL AL7REAR RIM 2,15X18" EXCEL AL7
-
11*77310060000 BRAKE DISC REAR 220BRAKE DISC REAR 220
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
1454810015000 REAR WHEEL REP. KITREAR WHEEL REP. KIT
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
2350310165118 CHAIN 5/8X1/4" MX 118 LINKSCHAIN 5/8X1/4" MX 118 LINKS
-
2350310800118 CHAIN Z-RING 118 ROLLSCHAIN Z-RING 118 ROLLS
-
2450310166000 CONNECT. LINK FOR 50310165118CONNECT. LINK FOR 50310165118
-
2450310366000 MASTER LINK FOR 50310800118MASTER LINK FOR 50310800118
-
2450310866000 RIVET LINK FOR 50310800118RIVET LINK FOR 50310800118
-
3354010100100 RIM LOCK VM3 (2.15")RIM LOCK VM3 (2.15")
-
3450310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
40*77310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
42*50304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
