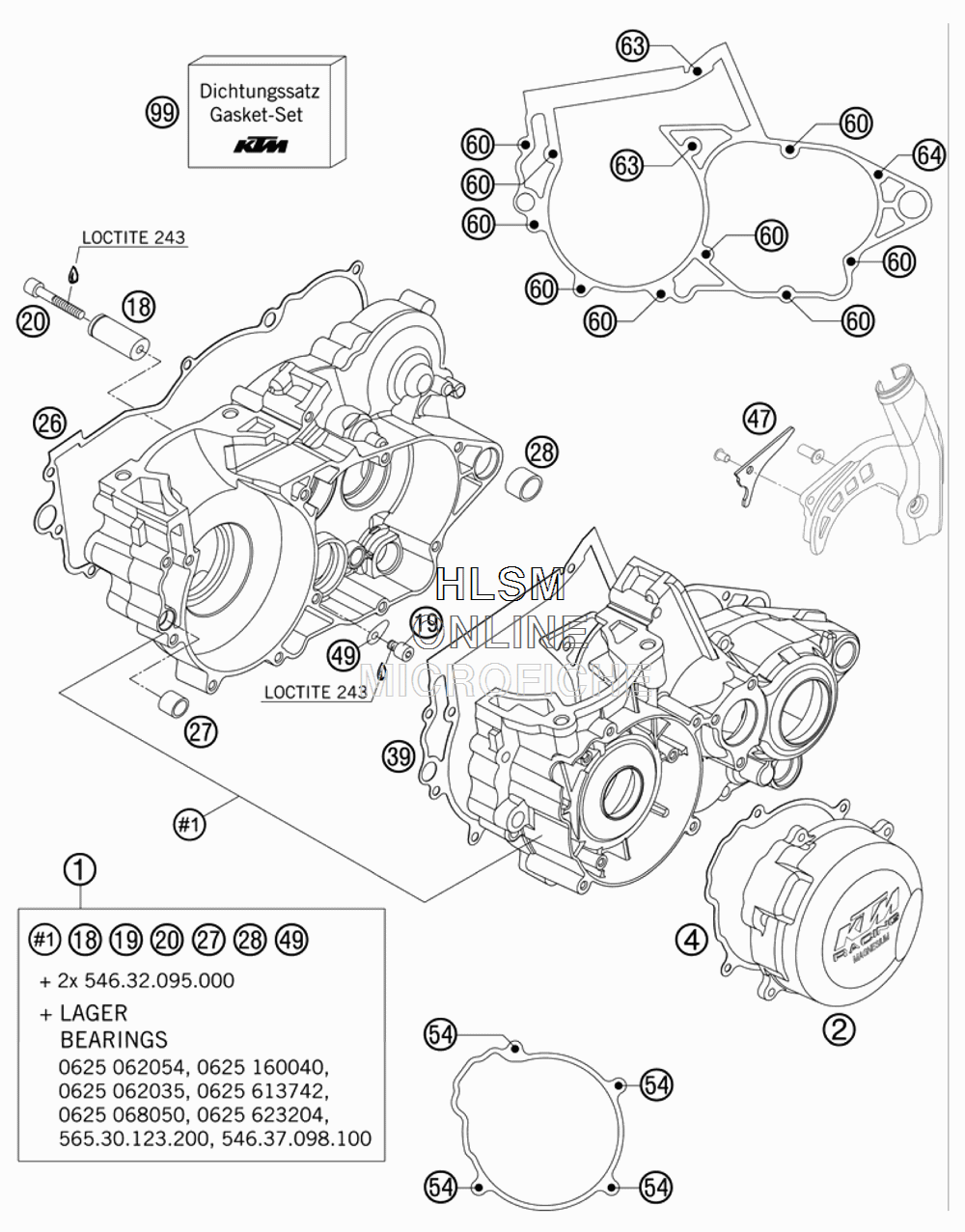

ENGINE CASE для Ktm 250 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    54830000044 ENGINE CASE CPL. WITH BEAR.
    ENGINE CASE CPL. WITH BEAR.
  • 2
    54830002000 IGNITION COVER
    IGNITION COVER
  • 4
    54830040000 IGNITI.COVER GASKET
    IGNITI.COVER GASKET
  • 18
    59033018000 BUSHING PIN
    BUSHING PIN
  • 19
    0912060083 AH SCREW DIN0912-M 6X 8
    AH SCREW DIN0912-M 6X 8
  • 20
    0912060404 AH SCREW DIN0912-M 6X40 A2
    AH SCREW DIN0912-M 6X40 A2
  • 26
    54830024000 CLUTCH COVER GASKET
    CLUTCH COVER GASKET
  • 27
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 28
    54830027000 DOWEL 21X12
    DOWEL 21X12
  • 39
    54830039000 ENGINE CASE GASKET
    ENGINE CASE GASKET
  • 47
    54830047100 CHAIN FAIL. PROTECTION
    CHAIN FAIL. PROTECTION
  • 49
    54634049000 RETAINING PLATE
    RETAINING PLATE
  • 54
    0014050163 HH COLLAR SCREW M 5X16 WS=6
    HH COLLAR SCREW M 5X16 WS=6
  • 60
    0015060403 HH COLLAR SCREW M 6X40 WS=8
    HH COLLAR SCREW M 6X40 WS=8
  • 63
    0015060553 HH COLLAR SCREW M 6X55 WS=8
    HH COLLAR SCREW M 6X55 WS=8
  • 64
    0015060603 HH COLLAR SCREW M 6X60 WS=8
    HH COLLAR SCREW M 6X60 WS=8
  • 99
    54830099100 GASKET SET
    GASKET SET
