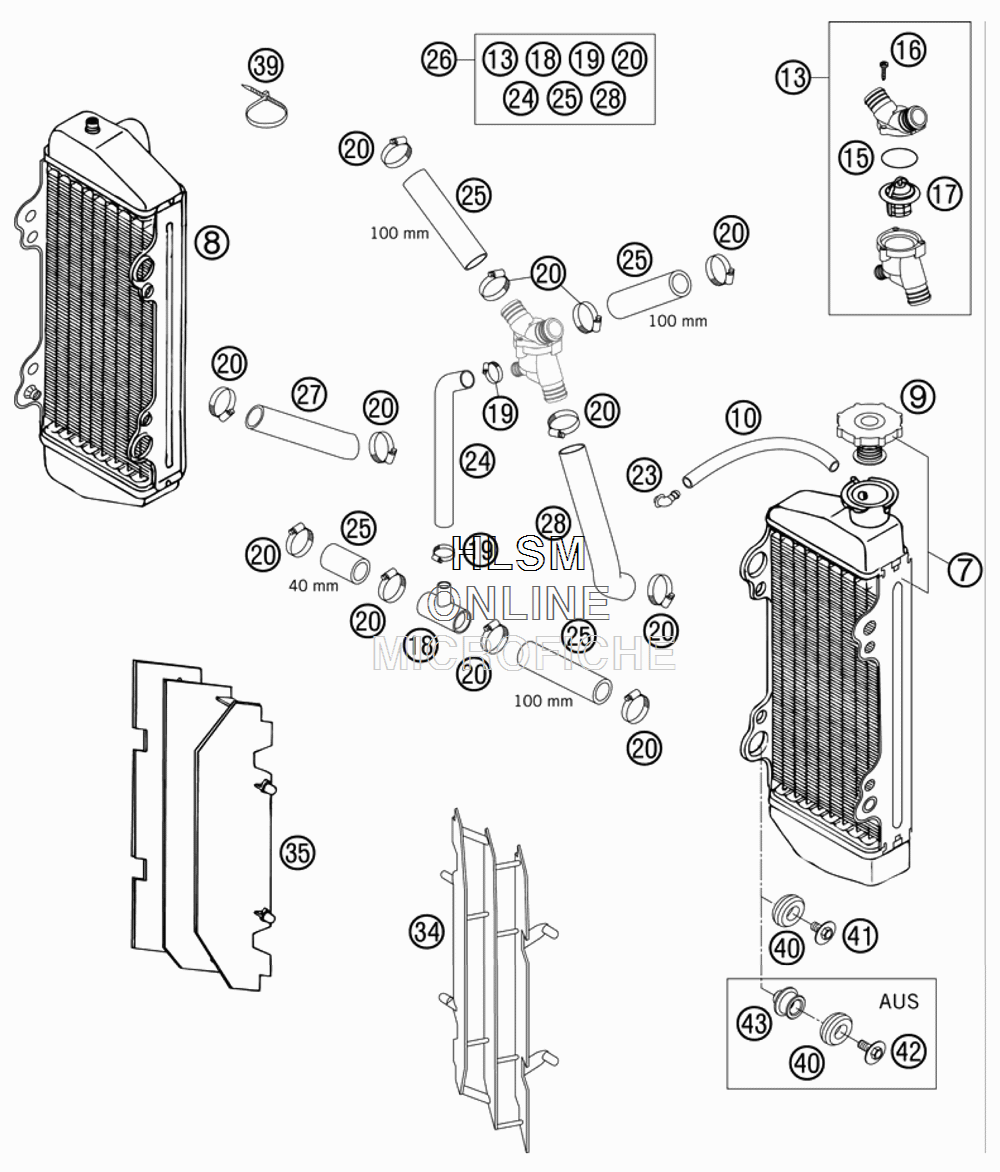

COOLING SYSTEM для Ktm 250 XC-W - 2007 года выпуска

  • №
    Артикул
    Название
  • 7
    50335007000 RADIATOR L/S NATURE (45286)
    RADIATOR L/S NATURE (45286)
  • 8
    50335008000 RADIATOR R/S NATURE (45285)
    RADIATOR R/S NATURE (45285)
  • 9
    59035009000 RADIAT.CAP 20,3PSI (1,4BAR)
    RADIAT.CAP 20,3PSI (1,4BAR)
  • 10
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 13
    54835013044 THERMOSTAT 55°C CPL.
    THERMOSTAT 55°C CPL.
  • 15
    0770320020 O-RING 32,00X2,00
    O-RING 32,00X2,00
  • 16
    0016040183 SCREW FOR PLASTIC D=4X18
    SCREW FOR PLASTIC D=4X18
  • 17
    54835017000 THERMOSTAT 55°C
    THERMOSTAT 55°C
  • 18
    54835018000 T-CONNECTOR 23/23/12,5
    T-CONNECTOR 23/23/12,5
  • 19
    58335099000 HOSE CLAMP GEMI 10-16
    HOSE CLAMP GEMI 10-16
  • 20
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 23
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 24
    54835024000 RADIATOR HOSE 10X17
    RADIATOR HOSE 10X17
  • 25
    56535025001 RADIATOR HOSE 18X25 PER METRE
    RADIATOR HOSE 18X25 PER METRE
  • 26
    54835026033 RADIATOR HOSE W. THERMOSTAT
    RADIATOR HOSE W. THERMOSTAT
  • 27
    54835027000 RADIATOR HOSE 18X25X130 MM WATER PUMP - RADIATOR
    RADIATOR HOSE 18X25X130 MM WATER PUMP - RADIATOR
  • 28
    54835028000 RADIATOR HOSE 18X25
    RADIATOR HOSE 18X25
  • 34
    5463503420030 RADIATOR PROTECTOR L. BLACK
    RADIATOR PROTECTOR L. BLACK
  • 35
    5463513420030 RADIATOR PROTECTOR BLACK
    RADIATOR PROTECTOR BLACK
  • 39
    44011076200 CABLE TIE 200/3,6MM BLACK
    CABLE TIE 200/3,6MM BLACK
  • 40
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 41
    0024060123 COLLAR SCREW M6X12 ISA
    COLLAR SCREW M6X12 ISA
  • 42
    0024060273 COLLAR SCREW M6X27 ISA
    COLLAR SCREW M6X27 ISA
  • 43
    77035002100 SPACER BUSHING
    SPACER BUSHING
