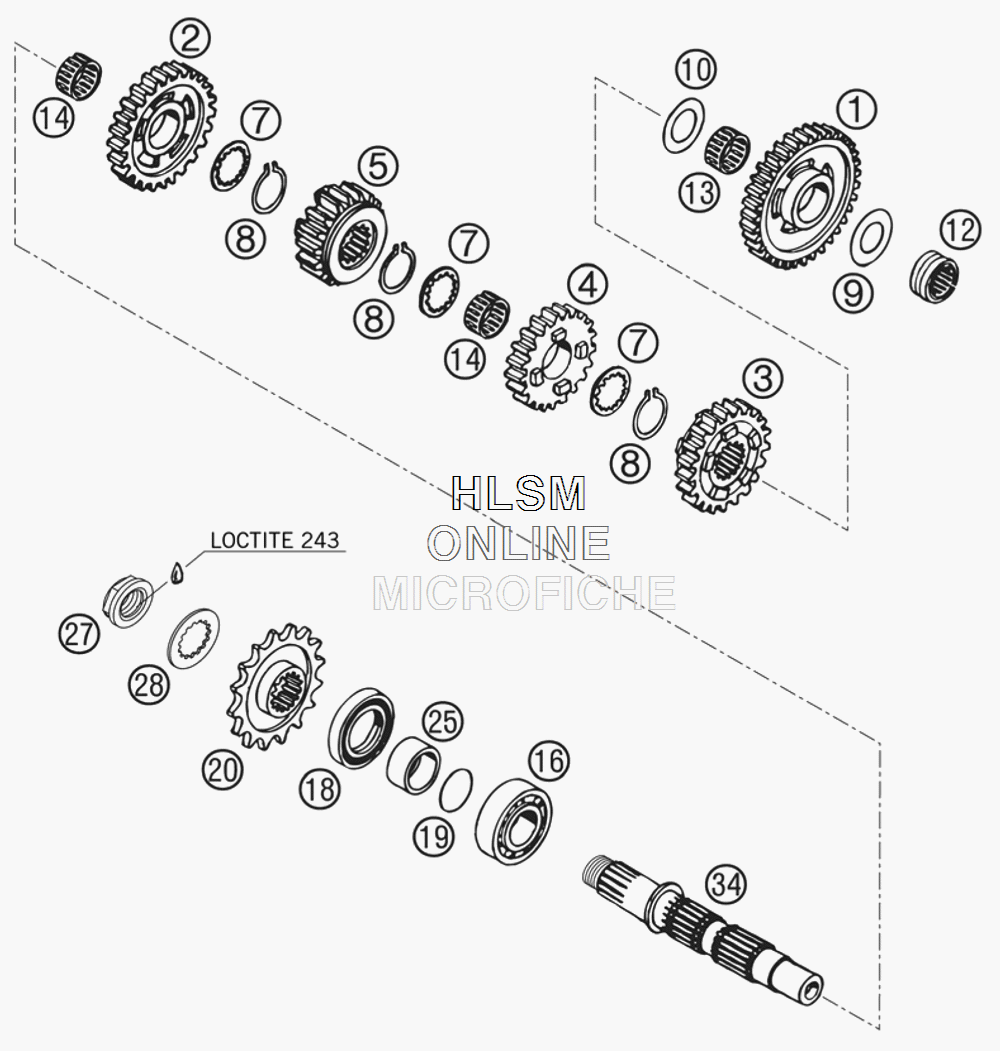

TRANSMISSION II - COUNTERSHAFT для Ktm 640 LC4 ADVENTURE - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    56533005300 IDLER GEAR 1.G 35-T (1M3)
    IDLER GEAR 1.G 35-T (1M3)
  • 2
    58333113010 IDLER GEAR 2.G 24-T "10"
    IDLER GEAR 2.G 24-T "10"
  • 3
    58333007003 SLIDING GEAR 3.G 21-T "03"
    SLIDING GEAR 3.G 21-T "03"
  • 4
    58333009005 IDLER GEAR 4.G 19-T "05"
    IDLER GEAR 4.G 19-T "05"
  • 5
    58333011009 SLIDING GEAR 5.G 18-T "09"
    SLIDING GEAR 5.G 18-T "09"
  • 7
    56533016300 STOP DISK 22,7 X 32 X 1,5
    STOP DISK 22,7 X 32 X 1,5
  • 8
    52033096000 LOCK RING DIN0471-25X1,64SD
    LOCK RING DIN0471-25X1,64SD
  • 9
    56533015000 STOP DISK 20,2 X 35 X 1
    STOP DISK 20,2 X 35 X 1
  • 10
    56533018300 STOP DISK 22,2 X 35 X 1,5
    STOP DISK 22,2 X 35 X 1,5
  • 12
    56533093000 NEEDLE BEARING RNA 4902 KSE
    NEEDLE BEARING RNA 4902 KSE
  • 13
    56533098000 NEEDLE BEARING K22X26X13H
    NEEDLE BEARING K22X26X13H
  • 14
    0405222613 NEEDLE BEAR. K 22X26X13 TN
    NEEDLE BEAR. K 22X26X13 TN
  • 16
    49030023000 CYL.ROLL BEARING NJ205
    CYL.ROLL BEARING NJ205
  • 18
    0760324771 SHAFT SEAL RING 32X47X7 BSL
    SHAFT SEAL RING 32X47X7 BSL
  • 19
    0770250021 O-RING 25,00X2,00 SILICONE
    O-RING 25,00X2,00 SILICONE
  • 20
    58033029014 ENGINE SPROCKET 14 T
    ENGINE SPROCKET 14 T
  • 20
    58033029015 ENGINE SPROCKET 15 T
    ENGINE SPROCKET 15 T
  • 20
    58033029016 ENGINE SPROCKET 16 T
    ENGINE SPROCKET 16 T
  • 20
    58033029017 ENGINE SPROCKET 17 T
    ENGINE SPROCKET 17 T
  • 25
    54633014100 SPACER BUSHING 12MM
    SPACER BUSHING 12MM
  • 27
    58033032200 SPROCKET NUT
    SPROCKET NUT
  • 28
    51033031000 LOCK WASHER
    LOCK WASHER
  • 34
    58333003100 COUNTERSHAFT
    COUNTERSHAFT
