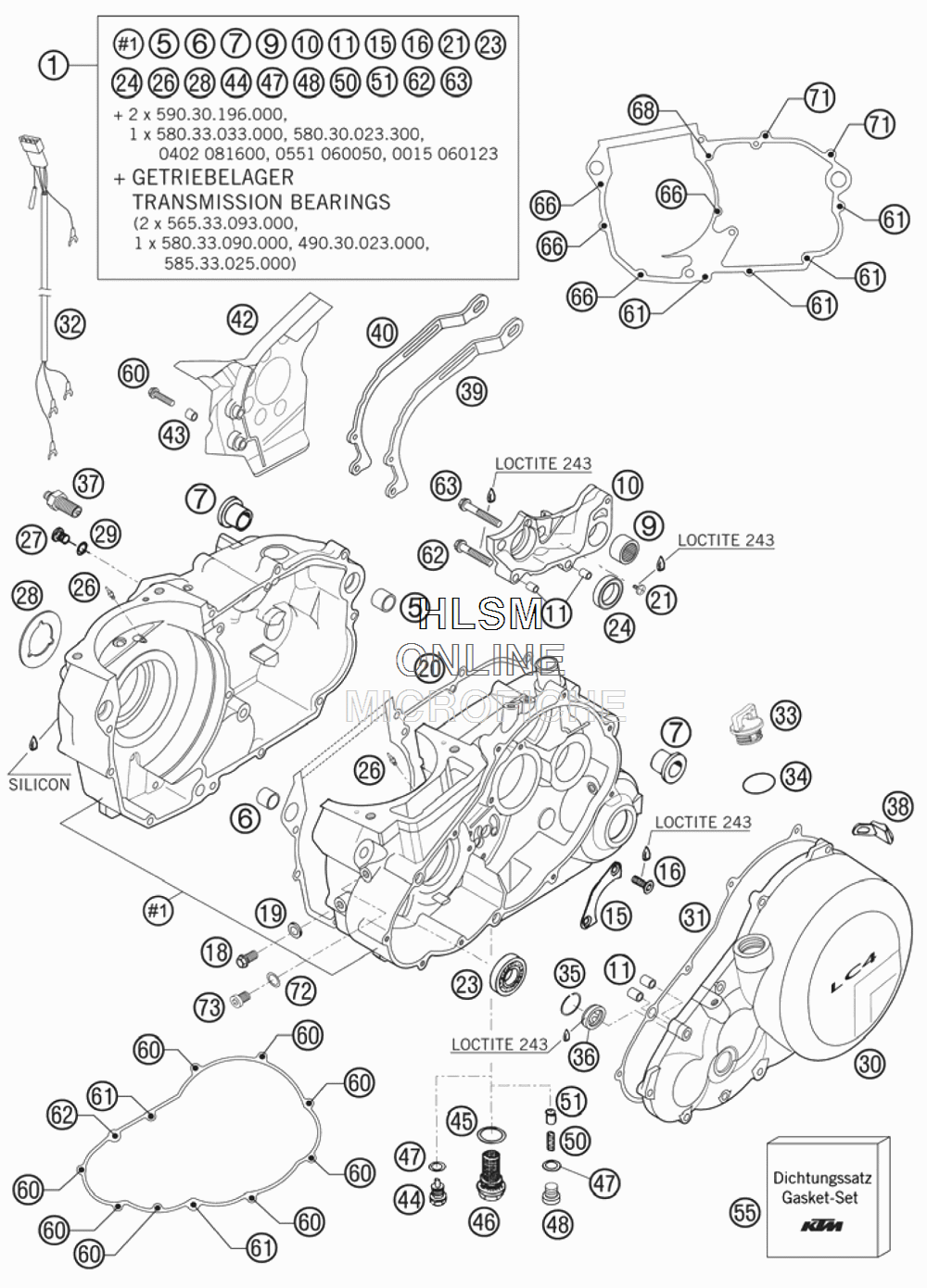

ENGINE CASE для Ktm 640 LC4 ADVENTURE - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5843000034423 ENGINE CASE CPL.W.BEAR. LC4 GREY
    ENGINE CASE CPL.W.BEAR. LC4 GREY
  • 5
    50130027000 DOWEL 19 X15,1X12
    DOWEL 19 X15,1X12
  • 6
    51030026100 DOWEL 17 X 13 X 12
    DOWEL 17 X 13 X 12
  • 7
    50130010000 CRANK CASE BUSH
    CRANK CASE BUSH
  • 9
    58033097000 NEEDLE BEARING HK 2216
    NEEDLE BEARING HK 2216
  • 10
    58330011000 SHIFT MECHANISM SUPPORT
    SHIFT MECHANISM SUPPORT
  • 11
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 15
    56530017000 RETAINING PLATE
    RETAINING PLATE
  • 16
    0991060166 FL.HEAD SCR.DIN7991-M6X16 10.9
    FL.HEAD SCR.DIN7991-M6X16 10.9
  • 18
    0015080163 HH COLLAR SCREW M 8X16
    HH COLLAR SCREW M 8X16
  • 19
    0603082121 SEAL RING CU DIN7603- 8X12X1
    SEAL RING CU DIN7603- 8X12X1
  • 20*
    58530039400 ENGINE CASE SIL C4302
    ENGINE CASE SIL C4302
  • 21
    0985050103 OVAL HEAD SCR. DIN7985-M 5X10
    OVAL HEAD SCR. DIN7985-M 5X10
  • 23
    0412174012 CYLIND.ROLL.NJ 203 ECP/C3
    CYLIND.ROLL.NJ 203 ECP/C3
  • 24
    0625618050 BALL BEARING 61805 C3
    BALL BEARING 61805 C3
  • 26
    60030064070 OIL JET 70 M6X0,75 WS8
    OIL JET 70 M6X0,75 WS8
  • 27
    49030029000 OIL DRAIN PLUG M10X1,5 AH-WS=6 (ONLY FOR USA)
    OIL DRAIN PLUG M10X1,5 AH-WS=6 (ONLY FOR USA)
  • 28
    58440091000 STOP DISK 33 X 58 X 1,5
    STOP DISK 33 X 58 X 1,5
  • 29
    0603100141 COPPER GASKET DIN7603-10X14X1 (ONLY FOR USA)
    COPPER GASKET DIN7603-10X14X1 (ONLY FOR USA)
  • 30
    5833010124423 CLUTCH COVER CPL. GREY WITH OIL INSPECTION GLASS
    CLUTCH COVER CPL. GREY WITH OIL INSPECTION GLASS
  • 31
    58530025000 CLUTCH COVER GASKET
    CLUTCH COVER GASKET
  • 32
    58411085000 WIRING HARN. EPC F. ENGINE
    WIRING HARN. EPC F. ENGINE
  • 33
    58030020100 PLUG CPL. M24X3
    PLUG CPL. M24X3
  • 34
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 35
    61030019050 CIRCLIP OIL LEVEL GLASS
    CIRCLIP OIL LEVEL GLASS
  • 36
    59030019000 OIL LEVEL GLASS G 1777 Y
    OIL LEVEL GLASS G 1777 Y
  • 37
    58011081100 CONTACT SCREW M10 STEEL
    CONTACT SCREW M10 STEEL
  • 38
    58333041000 BUMP RUBBER
    BUMP RUBBER
  • 39
    58430047200 CHA.DAMPERSHEET 15/16T 92MM
    CHA.DAMPERSHEET 15/16T 92MM
  • 40
    58730047100 CHAIN DAMPERSHEET 17T 92MM
    CHAIN DAMPERSHEET 17T 92MM
  • 42
    58430060100 SPROCKET COVER
    SPROCKET COVER
  • 43
    54613038150 BUSHING 6,5X8X11
    BUSHING 6,5X8X11
  • 44
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 45
    58038017100 CU-SEAL RING DIN7603-22X27X2
    CU-SEAL RING DIN7603-22X27X2
  • 46
    58038019100 OIL DRAIN PLUG M22X1,5
    OIL DRAIN PLUG M22X1,5
  • 47
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 48
    0908120153 PLUG DIN0908-M12X1,5
    PLUG DIN0908-M12X1,5
  • 50
    58038023300 PRESSURE SPRING L=25MM D=1MM
    PRESSURE SPRING L=25MM D=1MM
  • 51
    58038028000 VALVE PISTON D=10MM
    VALVE PISTON D=10MM
  • 55
    58430099200 GASKET SET LC4
    GASKET SET LC4
  • 60
    0015060253 HH COLLAR SCREW M 6X25
    HH COLLAR SCREW M 6X25
  • 61
    0015060303 HH COLLAR SCREW M 6X30
    HH COLLAR SCREW M 6X30
  • 62
    0015060353 HH COLLAR SCREW M 6X35
    HH COLLAR SCREW M 6X35
  • 63
    0015060403 HH COLLAR SCREW M 6X40
    HH COLLAR SCREW M 6X40
  • 66
    0015060553 HH COLLAR SCREW M 6X55
    HH COLLAR SCREW M 6X55
  • 68
    0015060653 HH COLLAR SCREW M 6X65
    HH COLLAR SCREW M 6X65
  • 71
    0015060353 HH COLLAR SCREW M 6X35 ADVENTURE
    HH COLLAR SCREW M 6X35 ADVENTURE
  • 72
    0603082131 COPPER GASK.DIN7603- 8,2X13X1
    COPPER GASK.DIN7603- 8,2X13X1
  • 73
    0908080013 PLUG M8X1 DIN 908
    PLUG M8X1 DIN 908
