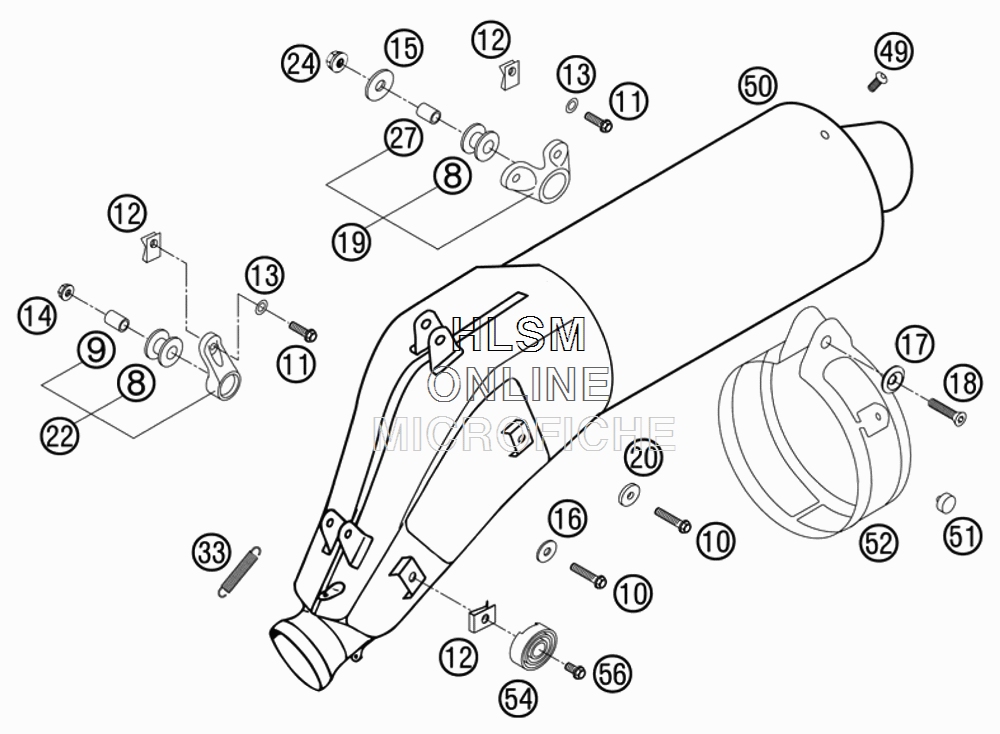

MAINFOLD SILENCER для Ktm 640 LC4 ADVENTURE - 2006 года выпуска

  • №
    Артикул
    Название
  • 8
    54305068100 DAMP. COMPONENT SILICONE GREY
    DAMP. COMPONENT SILICONE GREY
  • 9
    54305069000 BUSHING 7X12X15,4
    BUSHING 7X12X15,4
  • 10
    0015060303 HH COLLAR SCREW M 6X30
    HH COLLAR SCREW M 6X30
  • 11
    0015060203 HH COLLAR SCREW M 6X20
    HH COLLAR SCREW M 6X20
  • 12
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 13
    0137060003 SPRING WASHER DIN0137-B 6
    SPRING WASHER DIN0137-B 6
  • 14
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 15
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 16
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 17
    58303061000 SPECIAL WASHER ALU 8 X 24 MM
    SPECIAL WASHER ALU 8 X 24 MM
  • 18
    0991080353 FLAT HEAD SCREW DIN7991-M 8X35
    FLAT HEAD SCREW DIN7991-M 8X35
  • 19
    58405085044 SILENCER BRACKET CPL.
    SILENCER BRACKET CPL.
  • 20
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 22
    58305165244 SILENCER BRACKET CPL. SHORT
    SILENCER BRACKET CPL. SHORT
  • 24
    54310086200 SELF LOCKING NUT M8
    SELF LOCKING NUT M8
  • 27
    56505069000 SPACER BUSHING 8,4X12X16
    SPACER BUSHING 8,4X12X16
  • 33
    50305016000 TEN.SPRING L=62MM EY.MOVEABLE
    TEN.SPRING L=62MM EY.MOVEABLE
  • 49
    0902060083 AH OVAL SCREW ISO 7380 M 6X8
    AH OVAL SCREW ISO 7380 M 6X8
  • 50*
    58305083500 SILENCER SUPERTRAPP
    SILENCER SUPERTRAPP
  • 51
    54308042000 RUBBER BUFFER
    RUBBER BUFFER
  • 52
    58405161100 RETAIN CLAMP F.HGS4-SILENC.
    RETAIN CLAMP F.HGS4-SILENC.
  • 54
    58405098100 RUBBERBUFFER F. SILENCER
    RUBBERBUFFER F. SILENCER
  • 56
    0015060123 HH COLLAR SCREW M 6X12
    HH COLLAR SCREW M 6X12
