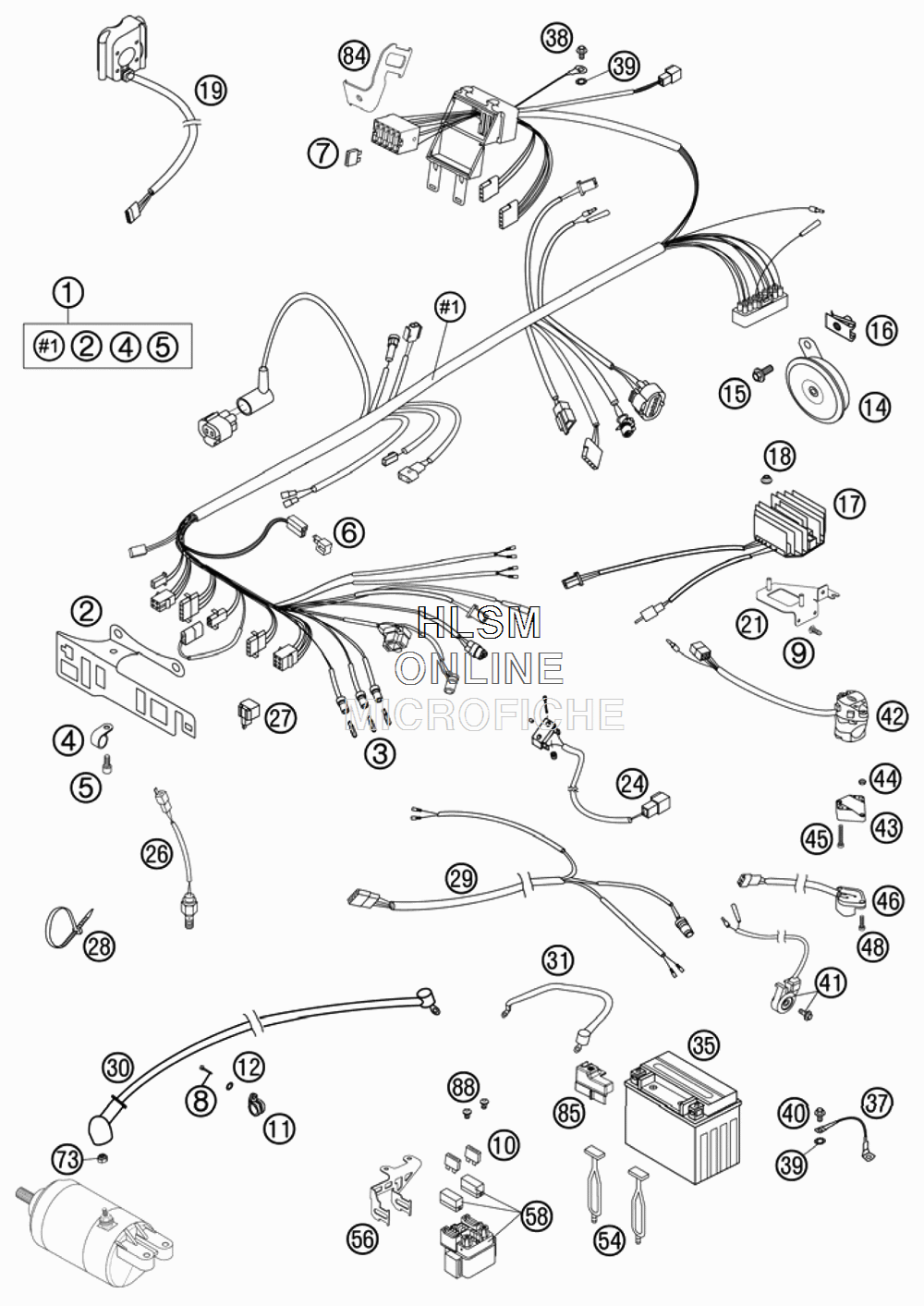

WIRING HARNESS для Ktm 625 SMC - 2006 года выпуска
-
№АртикулНазвание
-
158611075100 WIRING HARNESS 625 SMCWIRING HARNESS 625 SMC
-
259011083000 SUPPORT BRACKET BLACKSUPPORT BRACKET BLACK
-
349111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
457013070100 PVC-CLAMP 7,9 MM HEYCO 3355PVC-CLAMP 7,9 MM HEYCO 3355
-
50912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
658411096100 DIODE S3H-15DIODE S3H-15
-
758011109110 FUSE 10 AFUSE 10 A
-
80981480133 SHEET MET.SCR.DIN7981- 4,8X13SHEET MET.SCR.DIN7981- 4,8X13
-
90016050121 SCREW FOR PLASTIC 50X12SCREW FOR PLASTIC 50X12
-
1058011109120 FUSE 20 AFUSE 20 A
-
1145001070000 BRAKE CABLE CLAMP RSGU 9/12BRAKE CABLE CLAMP RSGU 9/12
-
120797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
1450311060100 DC HORN L.E.B.DC HORN L.E.B.
-
150014060153 HH COLLAR SCREW M 6X15HH COLLAR SCREW M 6X15
-
1654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1758411034100 VOLT.REGULATOR-RECTIFIER 12VVOLT.REGULATOR-RECTIFIER 12V
-
1856509064100 SELF LOCKING NUT M6SELF LOCKING NUT M6
-
1958411074100 START-STOP SWITCH AD LC4START-STOP SWITCH AD LC4
-
21*58611055200 BRACKET REGULATORBRACKET REGULATOR
-
2458411050000 BRAKE LIGHT SWITCH FRONT SMBRAKE LIGHT SWITCH FRONT SM
-
2650311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
2744611207200 FLASHER UNITFLASHER UNIT
-
2844011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
2844011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
2958611076000 WIRING HARNESS REARWIRING HARNESS REAR
-
3058611059000 STARTERCABLE L=810MMSTARTERCABLE L=810MM
-
3158611059050 BATTERY CABLE L=140MMBATTERY CABLE L=140MM
-
3558411053100 BATTERY 12V 8,6AHBATTERY 12V 8,6AH
-
3758611097000 GROUND CABLE L=80MMGROUND CABLE L=80MM
-
380015060103 HH COLLAR SCREW M 6X10HH COLLAR SCREW M 6X10
-
3958411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
400015060123 HH COLLAR SCREW M 6X12HH COLLAR SCREW M 6X12
-
4158411045000 SIDE STAND SWITCH CPL.SIDE STAND SWITCH CPL.
-
4250311070100 H.LIGHT SWITCH CEV EGS AUS.H.LIGHT SWITCH CEV EGS AUS.
-
4313011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
440934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
450084040223 CYL.HEAD SCREW DIN0084-M 4X22ACYL.HEAD SCREW DIN0084-M 4X22A
-
4650311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
480985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
5450303018000 RUBBER L=145MMRUBBER L=145MM
-
5658611058050 BRACKET STARTER RELAYBRACKET STARTER RELAY
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
730985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
8458611087050 BRACKET FUSE BOXBRACKET FUSE BOX
-
8558611059060 TERMINAL POST COVERTERMINAL POST COVER
-
880902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
