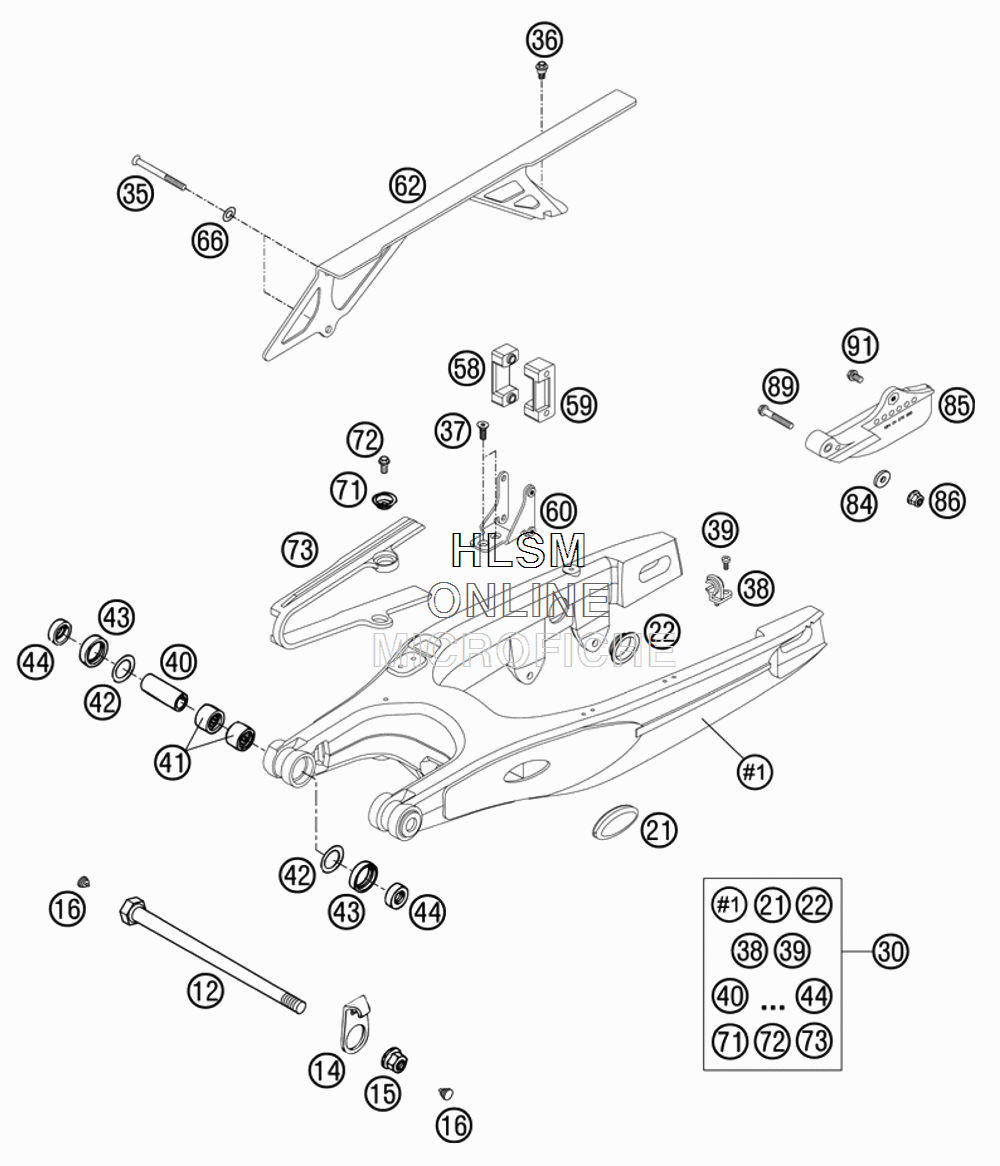

SWINGARM для Ktm 625 SMC - 2006 года выпуска

  • №
    Артикул
    Название
  • 12
    54603014100 SWINGARM BOLT KPL. L=253
    SWINGARM BOLT KPL. L=253
  • 14
    50230211000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 15
    54603015000 SELF LOCKING NUT M14X1,5 WS=19
    SELF LOCKING NUT M14X1,5 WS=19
  • 16
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 21
    58404041000 CLOSING COVER SWINGARM SM
    CLOSING COVER SWINGARM SM
  • 22
    58404041100 CLOSING COVER ROUND
    CLOSING COVER ROUND
  • 30*
    58404130144 SWINGARM CPL. SM
    SWINGARM CPL. SM
  • 35
    0991060553 FLAT HEAD SCREW DIN7991 M6X55
    FLAT HEAD SCREW DIN7991 M6X55
  • 36
    59001092050 SPECIAL SCREW M6X12,5
    SPECIAL SCREW M6X12,5
  • 37
    0991060163 FLAT HEAD SCR. DIN7991-M 6X16
    FLAT HEAD SCR. DIN7991-M 6X16
  • 38
    5461107610030 RET. CLAMP F. BRAKE HOSE BLACK
    RET. CLAMP F. BRAKE HOSE BLACK
  • 39
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 40
    50203081700 BUSHING SLEEVE 15X20X38,75
    BUSHING SLEEVE 15X20X38,75
  • 41
    59004031000 NEEDLE BUSH HK2012V
    NEEDLE BUSH HK2012V
  • 42
    59004033100 WASHER 20X32X0,8
    WASHER 20X32X0,8
  • 43
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 44
    54603090000 BUCKET F.SHAFTSEALRING 15X25X9
    BUCKET F.SHAFTSEALRING 15X25X9
  • 58
    58604067000 CHAIN GUIDE INSIDE
    CHAIN GUIDE INSIDE
  • 59
    58604068000 CHAIN GUIDE OUTSIDE
    CHAIN GUIDE OUTSIDE
  • 60
    58307068300 SUPPORT F. CHAIN GUIDE
    SUPPORT F. CHAIN GUIDE
  • 62
    58404060000 CHAINGUARD SM, DUKE
    CHAINGUARD SM, DUKE
  • 66
    58404060051 WASHER F. CHAINGUARD SM
    WASHER F. CHAINGUARD SM
  • 71
    72210079000 BUCKET
    BUCKET
  • 72
    0015060103 HH COLLAR SCREW M 6X10
    HH COLLAR SCREW M 6X10
  • 73
    58404066000 CHAIN SLIDING GUARD SM
    CHAIN SLIDING GUARD SM
  • 84
    50232050001 STEEL WASHER 6,4X17X3
    STEEL WASHER 6,4X17X3
  • 85
    58404070000 CHAIN GUIDE CPL. REAR
    CHAIN GUIDE CPL. REAR
  • 86
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 89
    0015060353 HH COLLAR SCREW M 6X35
    HH COLLAR SCREW M 6X35
  • 91
    0015060123 HH COLLAR SCREW M 6X12
    HH COLLAR SCREW M 6X12
