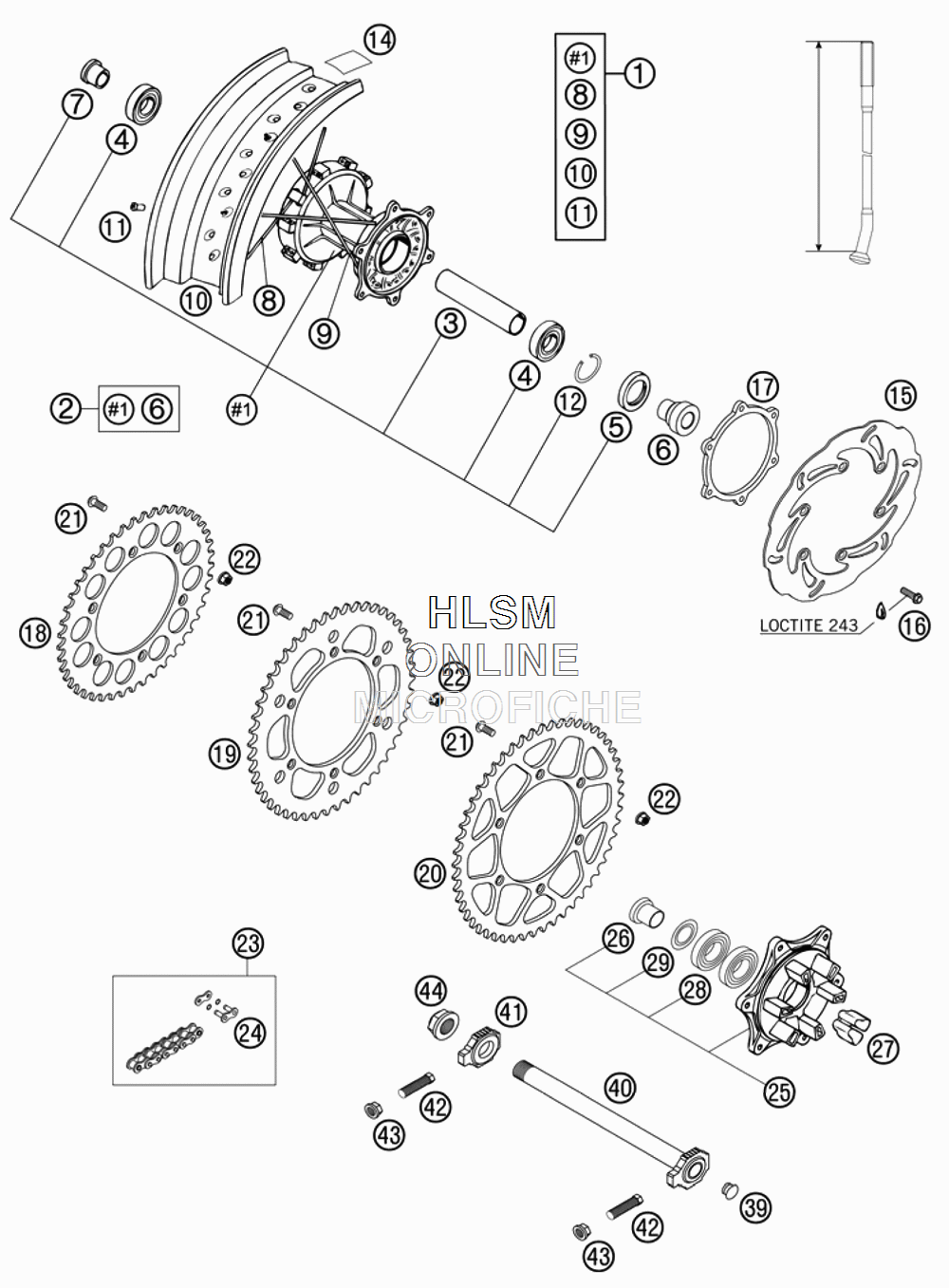

REAR WHEEL для Ktm 625 SMC - 2006 года выпуска
-
№АртикулНазвание
-
1*58410001944 REAR WHEEL-SP 5X17"POLISHEDREAR WHEEL-SP 5X17"POLISHED
-
2*5841001034491 REAR WHEEL HUB DAMPED CPL.REAR WHEEL HUB DAMPED CPL.
-
358410011000 BUSHING SPACER TUBE L=98,3MMBUSHING SPACER TUBE L=98,3MM
-
40625062052 GR.BALL BEAR. 6205-2RSHC3HMTF7GR.BALL BEAR. 6205-2RSHC3HMTF7
-
50760325272 SHAFT SEAL RING 32X52X7 BSHAFT SEAL RING 32X52X7 B
-
658410017000 BUSHING FOR REAR WHEEL SMBUSHING FOR REAR WHEEL SM
-
7*54610416500 BUSHING FOR REAR DAMPED HUBBUSHING FOR REAR DAMPED HUB
-
8*58310171100 SPOKE M5X199-16G 17"SPOKE M5X199-16G 17"
-
9*58310071100 SPOKE M5X186-26G 17"SPOKE M5X186-26G 17"
-
1058410070100 REAR RIM 5X17" POLISHEDREAR RIM 5X17" POLISHED
-
1158309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
120472052200 CIRCLIP DIN0472-52X2CIRCLIP DIN0472-52X2
-
1458309073000 RIM BAND 17"RIM BAND 17"
-
1558310060100 BRAKE DISC REAR D=220MMBRAKE DISC REAR D=220MM
-
1659009062019 SPECIAL SCREW M6X19 WS=8 10.9SPECIAL SCREW M6X19 WS=8 10.9
-
1758410061000 DISTANCE RING F. BRAKE DISCDISTANCE RING F. BRAKE DISC
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8SELF LOCKING NUT M8
-
23*50310800118 CHAIN Z-RING 118 ROLLS REGINACHAIN Z-RING 118 ROLLS REGINA
-
24*50310366000 MASTER LINK FOR 50310800118 REGINAMASTER LINK FOR 50310800118 REGINA
-
25*58310050244 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
26*58310417200 BUSH. F.SPROCKETSUPPORTBUSH. F.SPROCKETSUPPORT
-
2754610459000 DAMPING RUBBERDAMPING RUBBER
-
28*0625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
29*58310018000 SEAL WASHER 6005AVSEAL WASHER 6005AV
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4058410085044 WHEEL SPINDLE RE.CPL.L=270MWHEEL SPINDLE RE.CPL.L=270M
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
42*50304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
