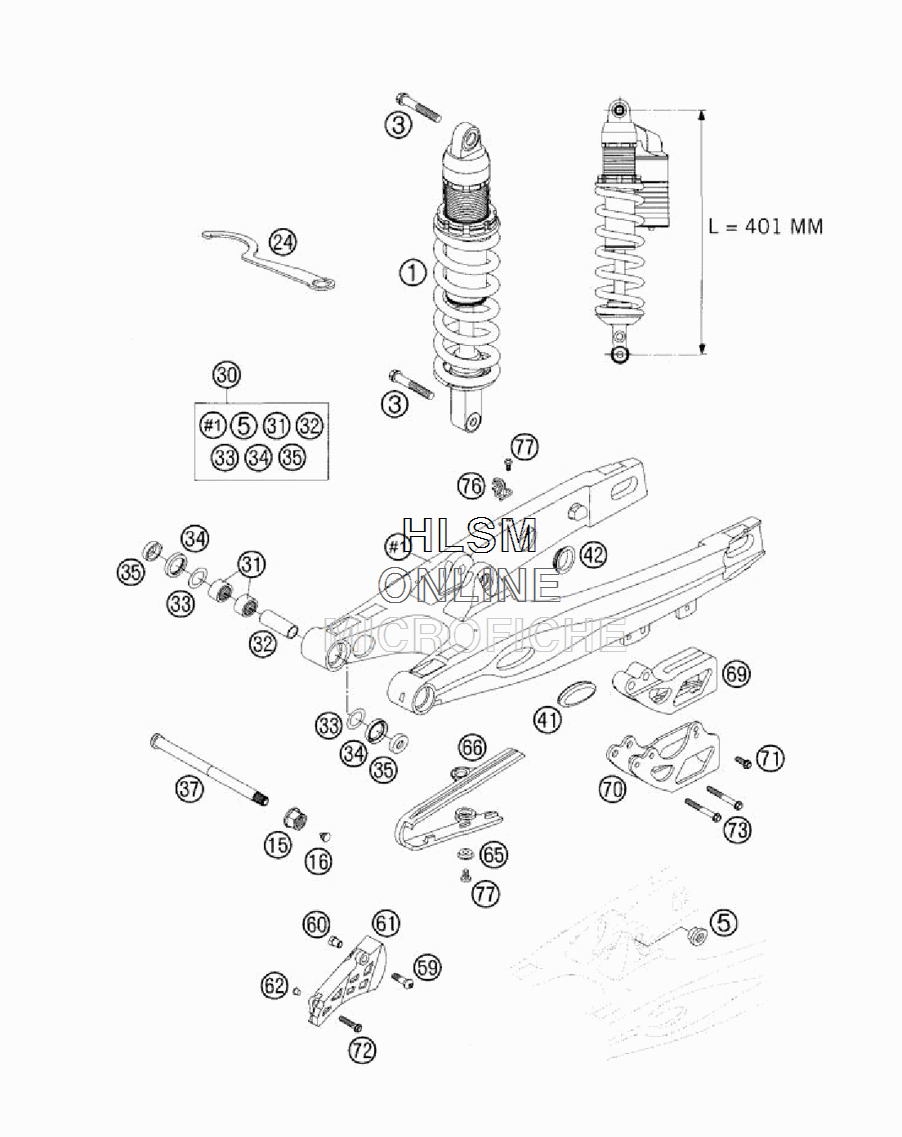

SWINGARM W/ MONOSHOCK для Ktm 85 SX - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    15187A02 MONOSHOCK
    MONOSHOCK
  • 3
    0015120556 HH COLLAR SCREW M12X55 WS=13
    HH COLLAR SCREW M12X55 WS=13
  • 5
    50180105 THREADED BUSH M12 PDS
    THREADED BUSH M12 PDS
  • 15
    54603015000 SELF LOCKING NUT M14X1,5 WS=19
    SELF LOCKING NUT M14X1,5 WS=19
  • 16
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 24
    46012024000 HOOK WRENCH FOR SHOCK ABSORBER
    HOOK WRENCH FOR SHOCK ABSORBER
  • 30
    47004030144 SWINGARM
    SWINGARM
  • 31
    59004031000 NEEDLE BUSH HK2012V
    NEEDLE BUSH HK2012V
  • 32
    50203081700 BUSHING SLEEVE 15X20X38,75
    BUSHING SLEEVE 15X20X38,75
  • 33
    59033080000 SHIM20X32X1
    SHIM20X32X1
  • 34
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 35
    54603090000 BUCKET F.SHAFTSEALRING 15X25X9
    BUCKET F.SHAFTSEALRING 15X25X9
  • 37
    47004037000 SWINGARM BOLT
    SWINGARM BOLT
  • 41
    58404041000 CLOSING COVER SWINGARM SM
    CLOSING COVER SWINGARM SM
  • 42
    58404041100 CLOSING COVER ROUND
    CLOSING COVER ROUND
  • 59
    54510052100 SPROCKET SCREW-AH M6X26 WS=6
    SPROCKET SCREW-AH M6X26 WS=6
  • 60
    47030060051 THREADED BUSH FOR CHAIN GUARD
    THREADED BUSH FOR CHAIN GUARD
  • 61
    47007061000 CHAIN GUARD
    CHAIN GUARD
  • 62
    58314060050 SPACER BUSH. F SPEEDOMET.BRA.
    SPACER BUSH. F SPEEDOMET.BRA.
  • 65
    72210079000 BUCKET
    BUCKET
  • 66
    58404066000 CHAIN SLIDING GUARD SM
    CHAIN SLIDING GUARD SM
  • 69
    54607066100 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 70
    54607070144 RETAINING PLATE CPL.
    RETAINING PLATE CPL.
  • 71
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 72
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 73
    0015060503 HH COLLAR SCREW M 6X50 WS=8
    HH COLLAR SCREW M 6X50 WS=8
  • 76
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 77
    0009050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
