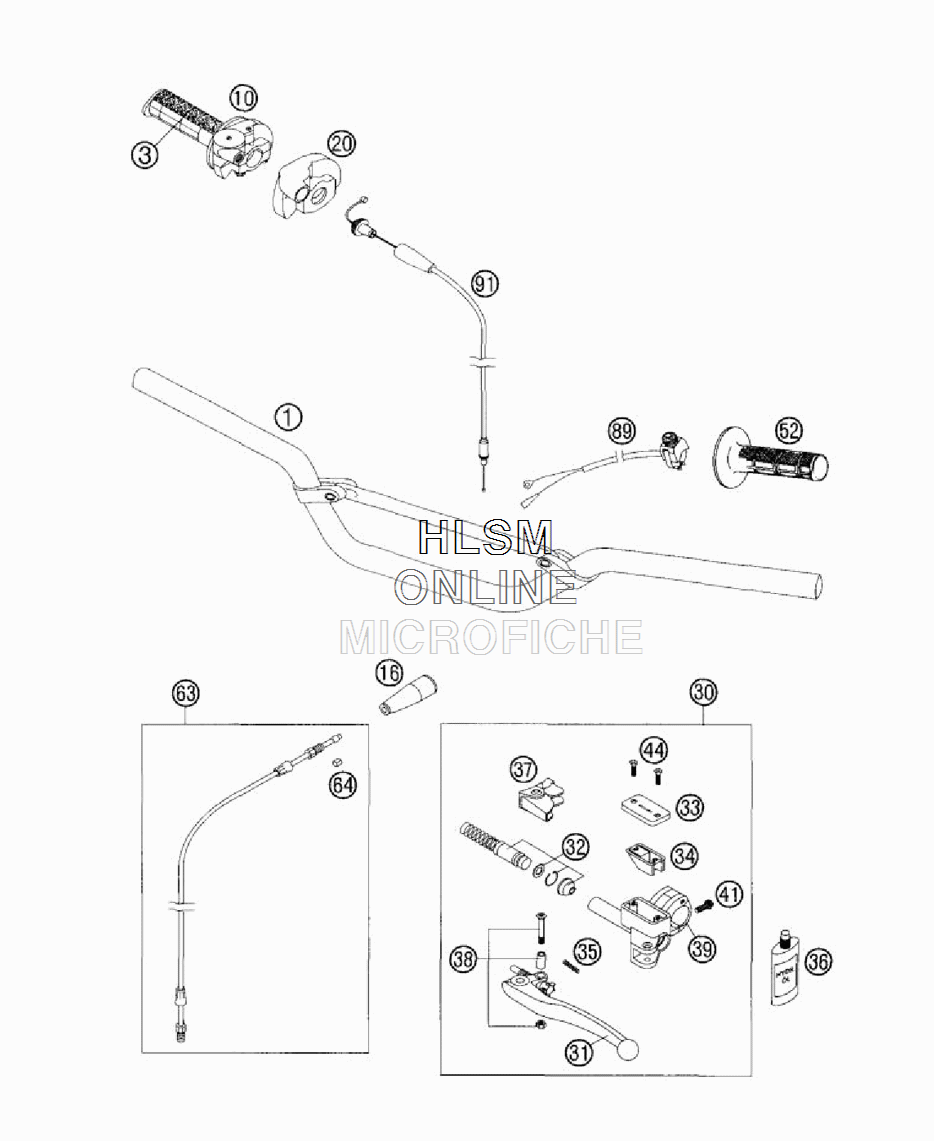

HANDLEBAR W/ CONTROLS для Ktm 85 SX - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    47002001100 HANDLEBAR D=22MM
    HANDLEBAR D=22MM
  • 3
    50202003000 TWIST GRIP COVER DOMINO BLACK
    TWIST GRIP COVER DOMINO BLACK
  • 10
    50302010000 THR.TWIST CRIP CPL. W.O.C.
    THR.TWIST CRIP CPL. W.O.C.
  • 16
    54002016000 PROTECTION CAP
    PROTECTION CAP
  • 20
    50302020000 PROTECTION COVER
    PROTECTION COVER
  • 30
    46102030100 MASTER CYLINDER CPL. D=9MM
    MASTER CYLINDER CPL. D=9MM
  • 31
    54602031000 CLUTCH LEVER SHORT CPL.
    CLUTCH LEVER SHORT CPL.
  • 31
    59002031000 CLUTCH LEVER LONG CPL.
    CLUTCH LEVER LONG CPL.
  • 32
    59002032100 REP.KIT PISTON 9,0MM RAC.
    REP.KIT PISTON 9,0MM RAC.
  • 33
    50302033100 COVER HYD. CLUTCH
    COVER HYD. CLUTCH
  • 34
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 35
    59002035000 SPRING FOR CLUTCH LEVER
    SPRING FOR CLUTCH LEVER
  • 36
    50302036200 OIL FOR HYD. CLUTCH 75ML
    OIL FOR HYD. CLUTCH 75ML
  • 37
    50302037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 38
    50302038000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 39
    50302030150 CLAMP WITH PIN
    CLAMP WITH PIN
  • 41
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 44
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 52
    50202052000 FIXED GRIP DOMINO BLACK
    FIXED GRIP DOMINO BLACK
  • 63
    46132063000 PIPE KIT FOR HYDR.CLUTCH
    PIPE KIT FOR HYDR.CLUTCH
  • 64
    50332063050 SELF CUTTING RING HYDR.PIPE
    SELF CUTTING RING HYDR.PIPE
  • 89
    50311089200 SHORT CIRCUIT BUTTON
    SHORT CIRCUIT BUTTON
  • 91
    50302091000 THROTTLE C.
    THROTTLE C.
