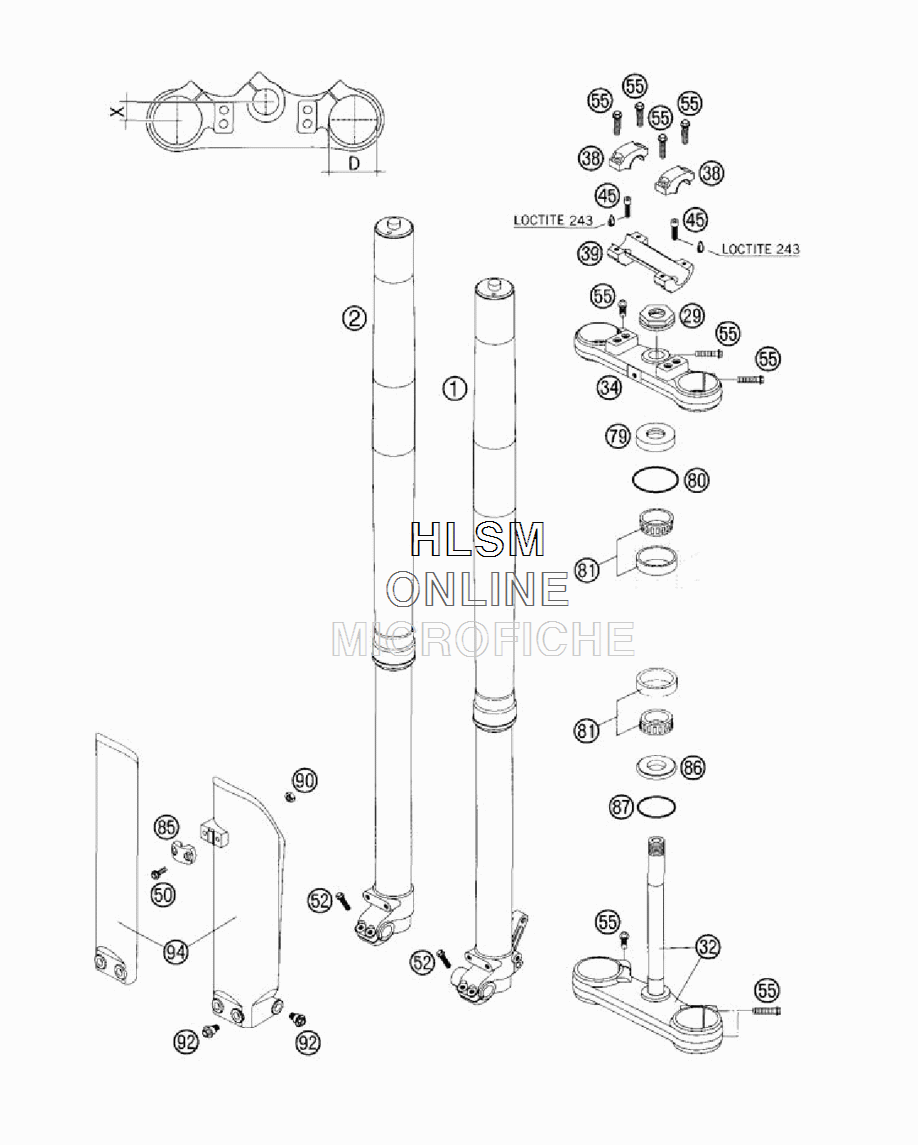

FRONT FORK для Ktm 85 SX - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    05187A05LS FORK LEG L/S WP
    FORK LEG L/S WP
  • 2
    05187A05RS FORK LEG R/S WP
    FORK LEG R/S WP
  • 32
    47001032014 B0T TRIPLE CLAMP CPL.
    B0T TRIPLE CLAMP CPL.
  • 34
    47001034014 TOP TRIPLE CLAMP
    TOP TRIPLE CLAMP
  • 38
    50301038000 HANDLEBAR CLAMP D=22MM
    HANDLEBAR CLAMP D=22MM
  • 39
    59001039000 HANDLEBAR SUPPORT 22MM 21
    HANDLEBAR SUPPORT 22MM 21
  • 45
    0912100250 AH SCREWDIN6912-M10X25,10.9,1
    AH SCREWDIN6912-M10X25,10.9,1
  • 50
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 52
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 55
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 79
    49001086000 COVERING CAP
    COVERING CAP
  • 80
    0770021300 O-RING 40,94X2,62 NBR70
    O-RING 40,94X2,62 NBR70
  • 81
    49001081000 TAPERED ROLLER BEARING 32004X
    TAPERED ROLLER BEARING 32004X
  • 85
    54601085000 BRAKE HOSE CLAMP MARZOCCHI
    BRAKE HOSE CLAMP MARZOCCHI
  • 86
    46001086000 PROTECTION RING20,1X39X5
    PROTECTION RING20,1X39X5
  • 87
    0770360030 O-RING 36,0010,00 NBR
    O-RING 36,0010,00 NBR
  • 90
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 92
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 94
    4700109400030 FORK PROTECTOR L/S+R/S
    FORK PROTECTOR L/S+R/S
