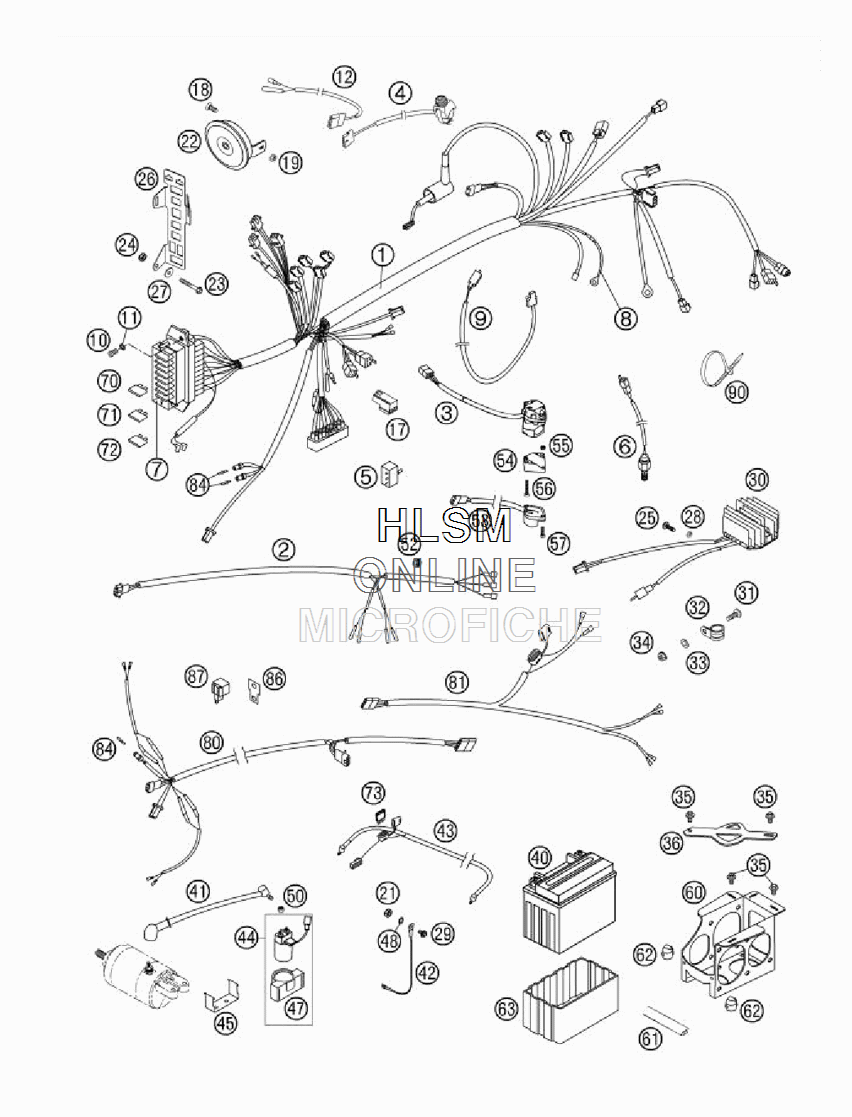

WIRING HARNESS для Ktm 660 RALLYE - 2005 года выпуска`
-
№АртикулНазвание
-
158511075500 MAIN WIRING HARNESSMAIN WIRING HARNESS
-
258511076100 WIRING HARNESS REARWIRING HARNESS REAR
-
350311070000 H.LIGHT SWITCH CEV 2/4TAKTH.LIGHT SWITCH CEV 2/4TAKT
-
450311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
558511069100 SWITCH ON/OFFSWITCH ON/OFF
-
658511051100 BRAKE LIGHT SWITCH LONGBRAKE LIGHT SWITCH LONG
-
758511075510 FUSE-BOX COVERFUSE-BOX COVER
-
858511080000 CABLE F. TEMP. SWITCHCABLE F. TEMP. SWITCH
-
950311050100 BRAKE LIGHT SWITCH FRONTBRAKE LIGHT SWITCH FRONT
-
100985050103 OVAL HEAD SCR. DIN7985-M 5X10OVAL HEAD SCR. DIN7985-M 5X10
-
110797050003 TOOTH LOCK WASH. DIN6797-J 5,3TOOTH LOCK WASH. DIN6797-J 5,3
-
1258511074050 STARTER BUTTON ADAPTER CABLESTARTER BUTTON ADAPTER CABLE
-
1758411057000 STARTER RELAYSTARTER RELAY
-
180991060163 FLAT HEAD SCR. DIN7991-M 6X16FLAT HEAD SCR. DIN7991-M 6X16
-
1956509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
210985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
2250311060000 DC HORN 12V K80/L LEBDC HORN 12V K80/L LEB
-
230931050453 HH SCREW DIN931 M5X45HH SCREW DIN931 M5X45
-
240934050003 HEXAGON NUT DIN0934-M 5HEXAGON NUT DIN0934-M 5
-
250015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
2658511083100 BRACKET SOCKETSBRACKET SOCKETS
-
270021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
2856509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
290015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
3058411034100 VOLT.REGULATOR-RECTIFIER 12VVOLT.REGULATOR-RECTIFIER 12V
-
310015050253 HH COLLAR SCREW M 5X25 WS=8HH COLLAR SCREW M 5X25 WS=8
-
3249007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
330125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
340985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
350014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
3658511054250 BRACKET F. BATTERY BOXBRACKET F. BATTERY BOX
-
4058411053000 BATTERY 12V 8AHBATTERY 12V 8AH
-
4158411059200 STARTERCABLE 250MMSTARTERCABLE 250MM
-
4258411097300 GROUND CABLE 275MMGROUND CABLE 275MM
-
4358511059000 BATTERY CABLE 600MMBATTERY CABLE 600MM
-
4458411058000 STARTER RELAY WITH HOLD.RUBBERSTARTER RELAY WITH HOLD.RUBBER
-
4558511058050 BRACKET FOR STARTRELAYSBRACKET FOR STARTRELAYS
-
4758411058050 HOLD. RUBBER FOR STARTER RELAYHOLD. RUBBER FOR STARTER RELAY
-
4858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
500985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
5231008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
5350311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
5413011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
550934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
560084040223 CYL.HEAD SCREW DIN0084-M 4X22ACYL.HEAD SCREW DIN0084-M 4X22A
-
570985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
6058511054200 BATTERY BOX RALLYE 01BATTERY BOX RALLYE 01
-
6158214070150 BORDER PROTEC. ADVENTURE 2002BORDER PROTEC. ADVENTURE 2002
-
6258111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
6358411053050 BATTERY COVER 96BATTERY COVER 96
-
7058011109005 FUSE 5 AFUSE 5 A
-
7158011109110 FUSE 10 A 2000FUSE 10 A 2000
-
7258011109015 FUSE 15 AFUSE 15 A
-
7358011109120 FUSE 20 A 2000FUSE 20 A 2000
-
8050311080100 FLAS.WIRING HARN. FRONT 125-380FLAS.WIRING HARN. FRONT 125-380
-
8150311081000 FLAS.WIRING HARN. REAR 125-380FLAS.WIRING HARN. REAR 125-380
-
8449111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
8658211031100 BRACKET FOR FLASHER RELAISEBRACKET FOR FLASHER RELAISE
-
8744611207200 FLASHER UNIT 97FLASHER UNIT 97
-
9044011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
9044011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
9044011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
