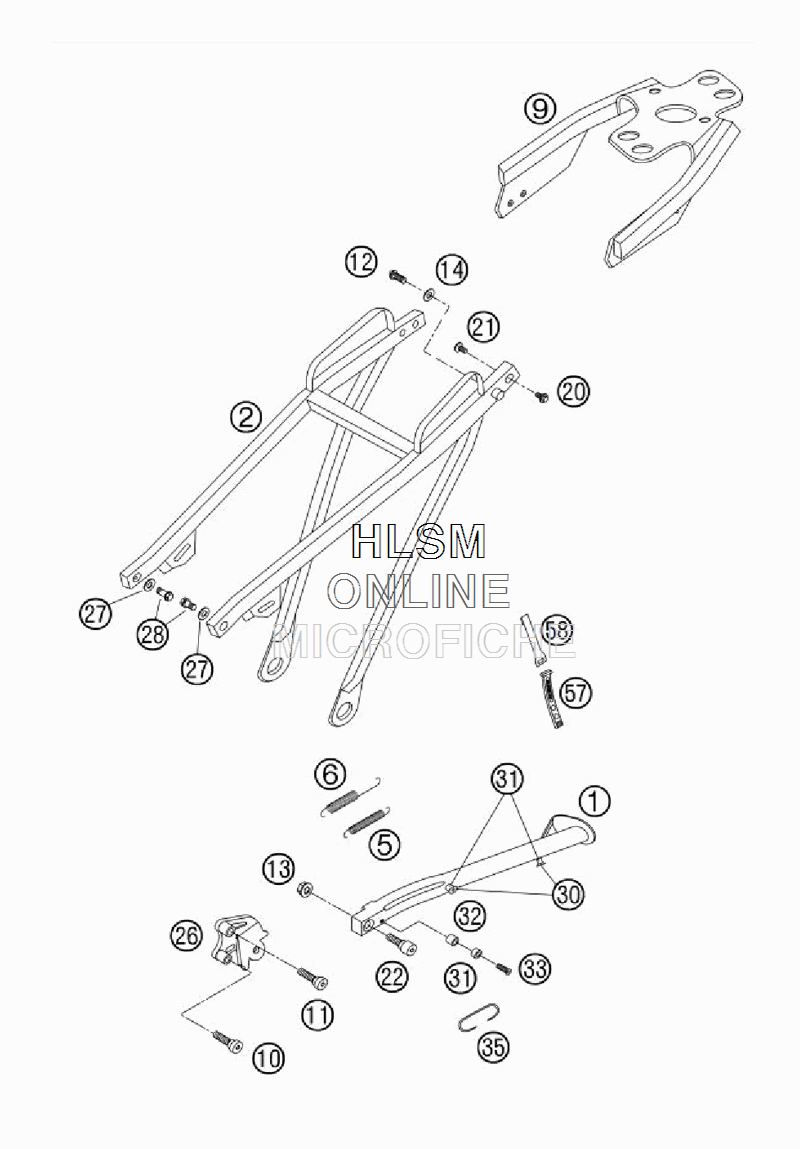

SUB FRAME - SIDE STAND для Ktm 660 RALLYE - 2005 года выпуска`
-
№АртикулНазвание
-
158503023200 SIDE STAND L=430SIDE STAND L=430
-
258503002300 SUB FRAME STEELSUB FRAME STEEL
-
558403030000 SIDE STAND SPRING D=7,7MMSIDE STAND SPRING D=7,7MM
-
651003021000 SIDESTAND SPRING LONGSIDESTAND SPRING LONG
-
958503002340 SUB FRAME EXTENSIONSUB FRAME EXTENSION
-
100984100356 AH SCREW DIN7984 M10X35AH SCREW DIN7984 M10X35
-
110984100456 AH SCREW DIN6912 M10X45AH SCREW DIN6912 M10X45
-
1254610052000 SPROCKET SCREW-AH M8X20 WS=6SPROCKET SCREW-AH M8X20 WS=6
-
130985100003 SELF LOCKING NUT DIN0985-M10SELF LOCKING NUT DIN0985-M10
-
1458303061000 SPECIAL WASHER ALU 8 X 24 MMSPECIAL WASHER ALU 8 X 24 MM
-
200014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
210014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
2258503023060 STAND SCREWSTAND SCREW
-
2658503026250 SIDE STANDING BRACKET CPL.SIDE STANDING BRACKET CPL.
-
2736003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
2858503002001 HH COLLAR SCREW S.FRAMEHH COLLAR SCREW S.FRAME
-
300991060153 FLAT HEAD SCREW DIN7991 M6X15FLAT HEAD SCREW DIN7991 M6X15
-
3158011039000 SPACER BUSHING 6,5 X 8 X 7SPACER BUSHING 6,5 X 8 X 7
-
3254613038150 BUSHING 6,5X8X11BUSHING 6,5X8X11
-
330991060253 FLAT HEAD SCREW DIN7991-M 6X25FLAT HEAD SCREW DIN7991-M 6X25
-
3558503031000 SPRING CLIP SIDE STANDSPRING CLIP SIDE STAND
-
5754611186000 RUBBER BANDRUBBER BAND
-
5858503023170 SIDE STAND RUBBER-RET.PANELSIDE STAND RUBBER-RET.PANEL
