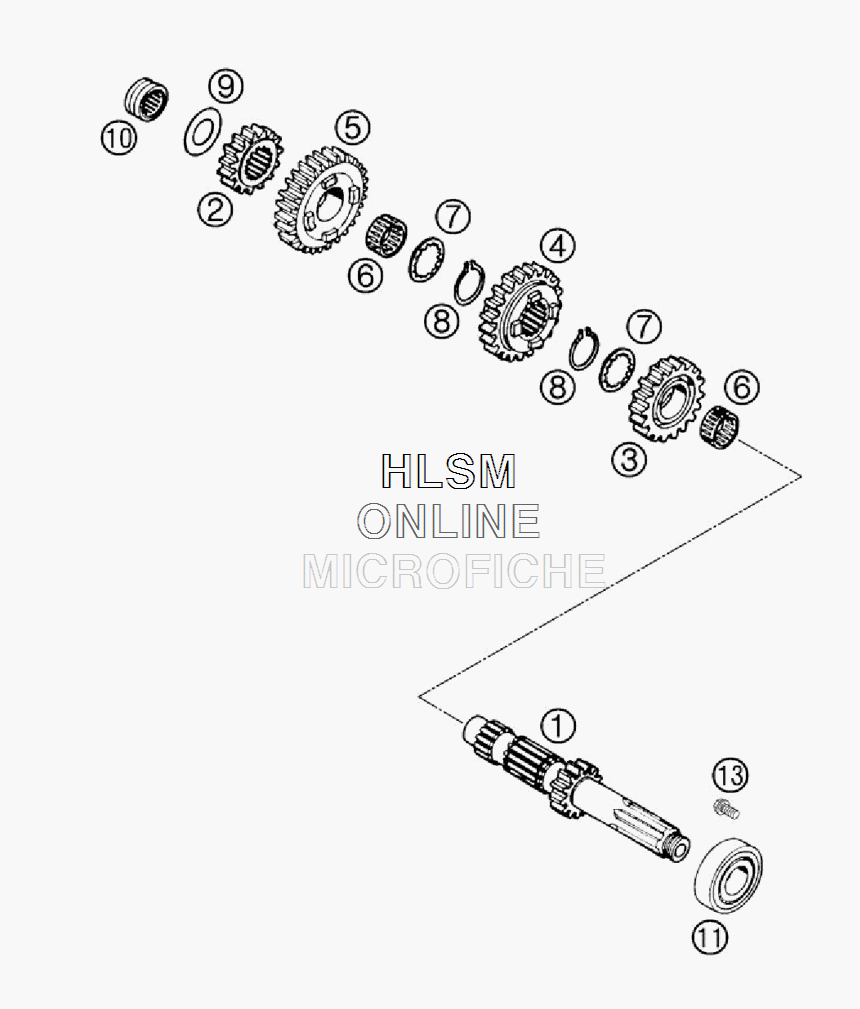

TRANSMISSION - MAIN SHAFT для Ktm 660 RALLYE - 2005 года выпуска`
-
№АртикулНазвание
-
158333002000 MAIN SHAFT 15TMAIN SHAFT 15T
-
256533010300 SOLID GEAR 2.G 15-T (2G3)SOLID GEAR 2.G 15-T (2G3)
-
358333004002 IDLER GEAR 3.G 18-T "02"IDLER GEAR 3.G 18-T "02"
-
458333006004 SLIDING GEAR 4.G 20-T "04"SLIDING GEAR 4.G 20-T "04"
-
558333008008 IDLER GEAR 5.G 22-T "08"IDLER GEAR 5.G 22-T "08"
-
658533021000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
756533016300 STOP DISK 22,7 X 32 X 1,5STOP DISK 22,7 X 32 X 1,5
-
852033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
956533015000 STOP DISK 20,2 X 35 X 1STOP DISK 20,2 X 35 X 1
-
1056533093000 NEEDLE BEARING RNA 4902 KSENEEDLE BEARING RNA 4902 KSE
-
1158533025000 CYL.ROLL BEARING BC1-0076ACYL.ROLL BEARING BC1-0076A
-
130015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
