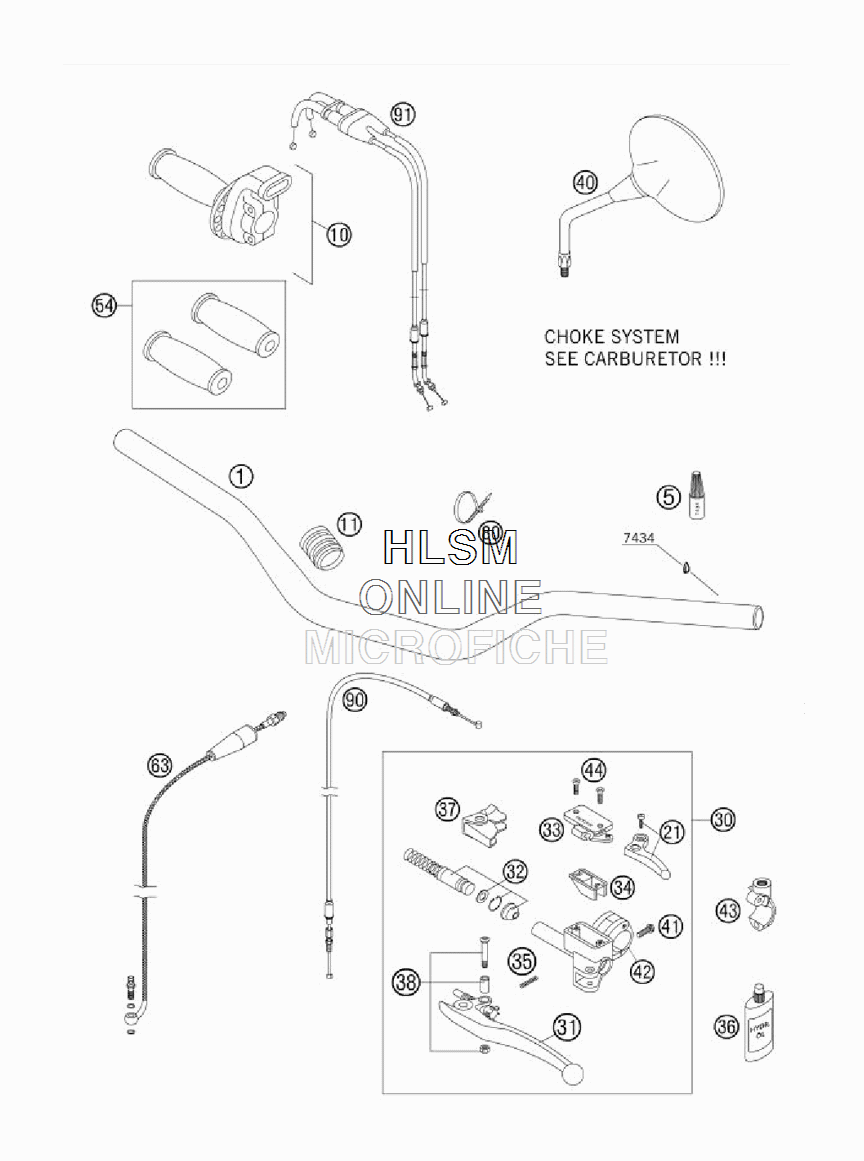

HANDLEBAR W/ CONTROLS для Ktm 660 RALLYE - 2005 года выпуска`
-
№АртикулНазвание
-
158402001000 HANDLEBAR ALUHANDLEBAR ALU
-
56899792 GLUE CYANACRYLAT 7434GLUE CYANACRYLAT 7434
-
1058502010000 THROTTLE GRIPTHROTTLE GRIP
-
1154605057000 RUBBER SLEEVE D=21MM/23MMRUBBER SLEEVE D=21MM/23MM
-
2159002047000 DECO.LEVER CPL. RACINGDECO.LEVER CPL. RACING
-
3059002030100 MASTER CYLINDER CPL. RACINGMASTER CYLINDER CPL. RACING
-
3159002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3154602031000 CLUTCH LEVER SHORT CPL.CLUTCH LEVER SHORT CPL.
-
3259002032000 REP.KIT PISTON 9,5MM RAC.REP.KIT PISTON 9,5MM RAC.
-
3359002033000 COVER HYD.CLUTCH RACINGCOVER HYD.CLUTCH RACING
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3559002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3750302037000 PROTECT.CAP FOR LEVER PERCHPROTECT.CAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
4058412040100 REAR MIRROR L/S+R/SREAR MIRROR L/S+R/S
-
410015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
4250302030150 CLAMP WITH PINCLAMP WITH PIN
-
4359002044000 CLAMP MIRROR WITH PINCLAMP MIRROR WITH PIN
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
5458502039044 RUBBER GRIPS PER GRIPRUBBER GRIPS PER GRIP
-
6350332063100 CLUTCH PIPECLUTCH PIPE
-
8044011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
9058502094000 DECOMPRESSION CABLEDECOMPRESSION CABLE
-
9159002091200 THR.CABLE"OPEN-CLOSE" RAC.THR.CABLE"OPEN-CLOSE" RAC.
