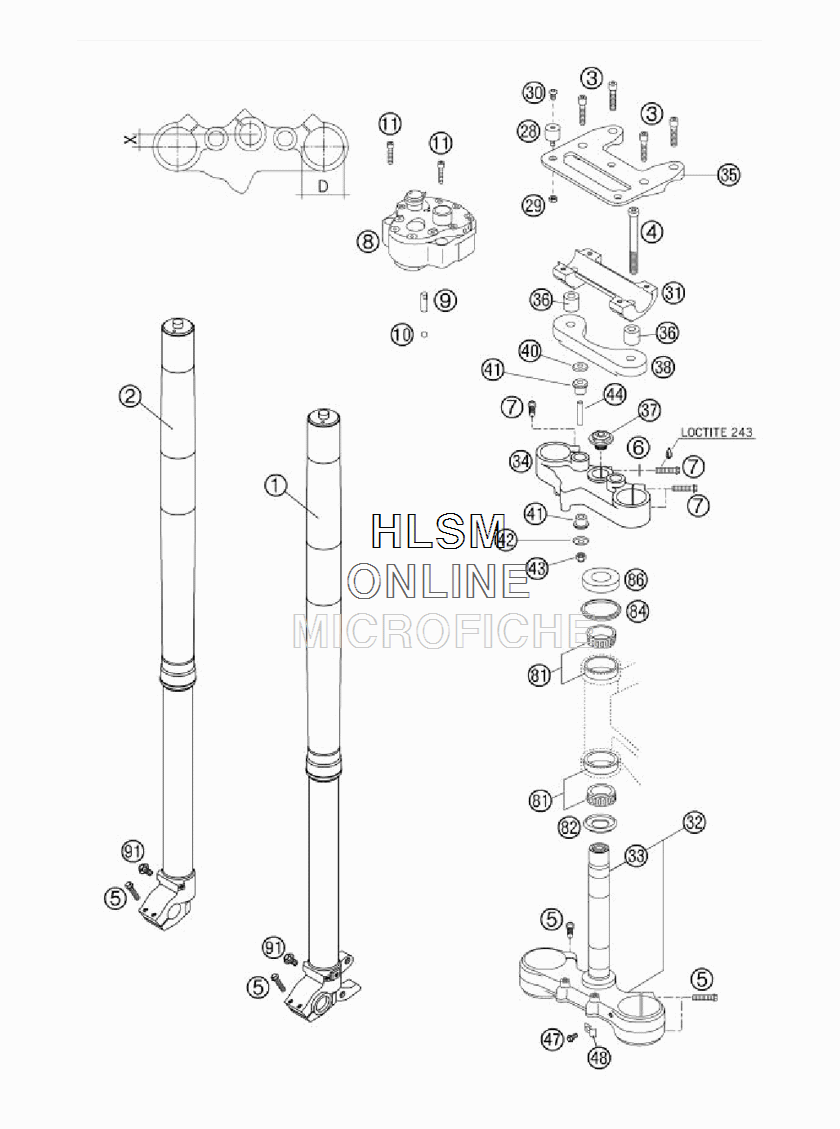

FRONT FORK для Ktm 660 RALLYE - 2005 года выпуска`
-
№АртикулНазвание
-
114187A10LS FORK LEG L/S WP48FORK LEG L/S WP48
-
214187A10RS FORK LEG R/S WP48FORK LEG R/S WP48
-
30912080303 AH SCREW DIN0912-M 8X30AH SCREW DIN0912-M 8X30
-
40984101006 AH SCREW DIN6912-M10X100 SHORT HEADAH SCREW DIN6912-M10X100 SHORT HEAD
-
50015080303 HH COLLAR SCREW M 8X30 WS=10HH COLLAR SCREW M 8X30 WS=10
-
650233041100 PAIR OF WASHERS M10 NORDLOCKPAIR OF WASHERS M10 NORDLOCK
-
70015080353 HH COLLAR SCREW M 8X35 WS=10HH COLLAR SCREW M 8X35 WS=10
-
858512050000 STEERING STABILI.CPL.STEERING STABILI.CPL.
-
958502006100 PIN F.STEERING STAB. 8MMPIN F.STEERING STAB. 8MM
-
100401070003 BALL DIN5401-7BALL DIN5401-7
-
110912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
2843205062100 RUBBER GROMMET 20X15-M6X10 (1)RUBBER GROMMET 20X15-M6X10 (1)
-
290985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
300902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
3159001039100 HANDLEBAR SUPPORT 28MMHANDLEBAR SUPPORT 28MM
-
3259001132120 BOT.TRIP.CL.CPL. X=20MM/D=60MMBOT.TRIP.CL.CPL. X=20MM/D=60MM
-
3350101033100 FORK TUBE L=244FORK TUBE L=244
-
3458501034020 TOP TRIPLE CLAMPTOP TRIPLE CLAMP
-
3558502003000 GPS HALTERUNG MILLEDGPS HALTERUNG MILLED
-
3658502005051 HANDLEBAR BUSHING 17MMHANDLEBAR BUSHING 17MM
-
3750301036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
3858502009000 HOLD.F.STEERING SHOCK ABSORBERHOLD.F.STEERING SHOCK ABSORBER
-
4056401042000 WASHER 10,5X32X2WASHER 10,5X32X2
-
4156401040000 RUBBER BUSHINGRUBBER BUSHING
-
4256401142000 WASHER 10,5X31WASHER 10,5X31
-
430985100003 SELF LOCKING NUT DIN0985-M10SELF LOCKING NUT DIN0985-M10
-
4456401041100 SPACER TUBE 10,2X12X44SPACER TUBE 10,2X12X44
-
470015050123 HH COLLAR SCREW M 5X12 WS=8HH COLLAR SCREW M 5X12 WS=8
-
4850211096000 CLAMP FOR WIRING HARNESSCLAMP FOR WIRING HARNESS
-
8154201081000 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
910014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
