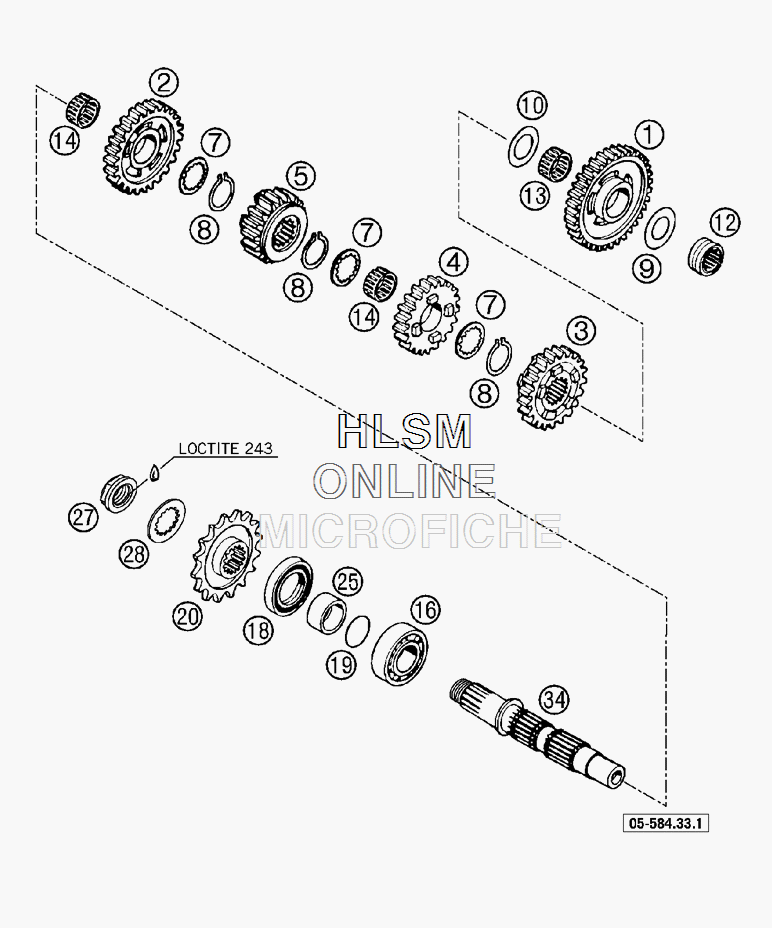

TRANSMISSION - COUNTER SHAFT для Ktm 640 SUPERMOTO - 2005 года выпуска`

№

Артикул

Название
1

56533005300 IDLER GEAR 1.G 35-T (1M3)

IDLER GEAR 1.G 35-T (1M3)

49 730 ₽
2

58333113010 IDLER GEAR 2.G 24-T "10"

IDLER GEAR 2.G 24-T "10"

51 910 ₽
3

58333007003 SLIDING GEAR 3.G 21-T "03"

SLIDING GEAR 3.G 21-T "03"

38 460 ₽
4

58333009005 IDLER GEAR 4.G 19-T "05"

IDLER GEAR 4.G 19-T "05"

36 330 ₽
5

58333011009 SLIDING GEAR 5.G 18-T "09"

SLIDING GEAR 5.G 18-T "09"

42 640 ₽
7

56533016300 STOP DISK 22,7 X 32 X 1,5

STOP DISK 22,7 X 32 X 1,5

1 520 ₽
8

52033096000 LOCK RING DIN0471-25X1,64SD

LOCK RING DIN0471-25X1,64SD

1 110 ₽
9

56533015000 STOP DISK 20,2 X 35 X 1

STOP DISK 20,2 X 35 X 1

0 ₽
10

56533018300 STOP DISK 22,2 X 35 X 1,5

STOP DISK 22,2 X 35 X 1,5

1 080 ₽
12

56533093000 NEEDLE BEARING RNA 4902 KSE

NEEDLE BEARING RNA 4902 KSE

5 930 ₽
13

56533098000 NEEDLE BEARING K22X26X13H

NEEDLE BEARING K22X26X13H

3 210 ₽
14

0405222613 NEEDLE BEAR. K 22X26X13 TN

NEEDLE BEAR. K 22X26X13 TN

2 340 ₽
16

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
18

0760324771 SHAFT SEAL RING 32X47X7 BSL

SHAFT SEAL RING 32X47X7 BSL

3 510 ₽
19

0770250021 O-RING 25,00X2,00 SILICONE

O-RING 25,00X2,00 SILICONE

620 ₽
20

58033029014 ENGINE SPROCKET 14 T

ENGINE SPROCKET 14 T

7 410 ₽
20

58033029015 ENGINE SPROCKET 15 T

ENGINE SPROCKET 15 T

7 560 ₽
20

58033029016 ENGINE SPROCKET 16 T

ENGINE SPROCKET 16 T

7 560 ₽
20

58033029017 ENGINE SPROCKET 17 T

ENGINE SPROCKET 17 T

7 560 ₽
25

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
27

58033032200 SPROCKET NUT

SPROCKET NUT

3 760 ₽
28

51033031000 LOCK WASHER

LOCK WASHER

1 230 ₽
34

58333003100 COUNTERSHAFT

COUNTERSHAFT

112 920 ₽
